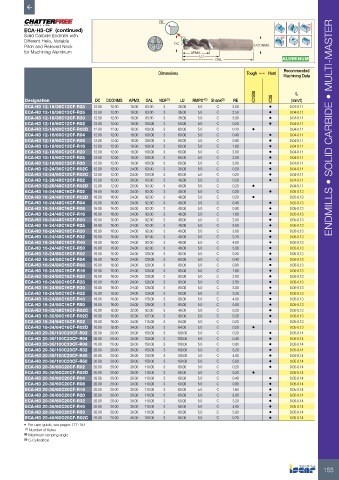

Page 157 - ISCAR(MILLINGCATALOG 38_2021)

RE Rd°
ECA-H3-CF (continued)
Solid Carbide Endmills with
Different Helix, Variable DC
Pitch and Relieved Neck DCONMS
for Machining Aluminum APMX
LU
OAL ALUMINUM

Dimensions Tough 1 Hard Recommended
Machining Data

IC1508 fz
Designation DC DCONMS APMX OAL NOF (1) LU RMPX° (2) Shank (3) RE IC08 (mm/t)
ECA-H3 12-18/36C12CF-R20 12.00 12.00 18.00 83.00 3 36.00 5.0 C 2.00 • 0.04-0.11
ECA-H3 12-18/36C12CF-R25 12.00 12.00 18.00 83.00 3 36.00 5.0 C 2.50 • 0.04-0.11
ECA-H3 12-18/36C12CF-R30 12.00 12.00 18.00 83.00 3 36.00 5.0 C 3.00 • 0.04-0.11
ECA-H3 12-18/60C12CF-R02 12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.20 • 0.04-0.11
ECA-H3 12-18/60C12CF-R02D 12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.20 • 0.04-0.11 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECA-H3 12-18/60C12CF-R04 12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.40 • 0.04-0.11
ECA-H3 12-18/60C12CF-R08 12.00 12.00 18.00 100.00 3 60.00 5.0 C 0.80 • 0.04-0.11
ECA-H3 12-18/60C12CF-R16 12.00 12.00 18.00 100.00 3 60.00 5.0 C 1.60 • 0.04-0.11
ECA-H3 12-18/60C12CF-R20 12.00 12.00 18.00 100.00 3 60.00 5.0 C 2.00 • 0.04-0.11
ECA-H3 12-18/60C12CF-R25 12.00 12.00 18.00 100.00 3 60.00 5.0 C 2.50 • 0.04-0.11
ECA-H3 12-18/60C12CF-R30 12.00 12.00 18.00 100.00 3 60.00 5.0 C 3.00 • 0.04-0.11
ECA-H3 12-24/36C12CF-R02C 12.00 12.00 24.00 83.00 3 36.00 5.0 C 0.20 • 0.04-0.11
ECA-H3 12-24/60C12CF-R02C 12.00 12.00 24.00 100.00 3 60.00 5.0 C 0.20 • 0.04-0.11
ECA-H3 12-26/48C12CF-R02 12.00 12.00 26.00 93.00 3 48.00 5.0 C 0.20 • 0.04-0.11
ECA-H3 12-26/48C12CF-R02D 12.00 12.00 26.00 93.00 3 48.00 5.0 C 0.20 • 0.04-0.11
ECA-H3 16-24/48C16CF-R02 16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.20 • 0.05-0.13
ECA-H3 16-24/48C16CF-R02D 16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.20 • 0.05-0.13
ECA-H3 16-24/48C16CF-R04 16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.40 • 0.05-0.13
ECA-H3 16-24/48C16CF-R08 16.00 16.00 24.00 92.00 3 48.00 5.0 C 0.80 • 0.05-0.13
ECA-H3 16-24/48C16CF-R16 16.00 16.00 24.00 92.00 3 48.00 5.0 C 1.60 • 0.05-0.13
ECA-H3 16-24/48C16CF-R20 16.00 16.00 24.00 92.00 3 48.00 5.0 C 2.00 • 0.05-0.13
ECA-H3 16-24/48C16CF-R25 16.00 16.00 24.00 92.00 3 48.00 5.0 C 2.50 • 0.05-0.13
ECA-H3 16-24/48C16CF-R30 16.00 16.00 24.00 92.00 3 48.00 5.0 C 3.00 • 0.05-0.13
ECA-H3 16-24/48C16CF-R32 16.00 16.00 24.00 92.00 3 48.00 5.0 C 3.20 • 0.05-0.13
ECA-H3 16-24/48C16CF-R40 16.00 16.00 24.00 92.00 3 48.00 5.0 C 4.00 • 0.05-0.13
ECA-H3 16-24/48C16CF-R50 16.00 16.00 24.00 92.00 3 48.00 5.0 C 5.00 • 0.05-0.13
ECA-H3 16-24/80C16CF-R02 16.00 16.00 24.00 128.00 3 80.00 5.0 C 0.20 • 0.05-0.13
ECA-H3 16-24/80C16CF-R04 16.00 16.00 24.00 128.00 3 80.00 5.0 C 0.40 • 0.05-0.13
ECA-H3 16-24/80C16CF-R08 16.00 16.00 24.00 128.00 3 80.00 5.0 C 0.80 • 0.05-0.13
ECA-H3 16-24/80C16CF-R16 16.00 16.00 24.00 128.00 3 80.00 5.0 C 1.60 • 0.05-0.13
ECA-H3 16-24/80C16CF-R20 16.00 16.00 24.00 128.00 3 80.00 5.0 C 2.00 • 0.05-0.13
ECA-H3 16-24/80C16CF-R25 16.00 16.00 24.00 128.00 3 80.00 5.0 C 2.50 • 0.05-0.13
ECA-H3 16-24/80C16CF-R30 16.00 16.00 24.00 128.00 3 80.00 5.0 C 3.00 • 0.05-0.13
ECA-H3 16-24/80C16CF-R32 16.00 16.00 24.00 128.00 3 80.00 5.0 C 3.20 • 0.05-0.13
ECA-H3 16-24/80C16CF-R40 16.00 16.00 24.00 128.00 3 80.00 5.0 C 4.00 • 0.05-0.13
ECA-H3 16-24/80C16CF-R50 16.00 16.00 24.00 128.00 3 80.00 5.0 C 5.00 • 0.05-0.13
ECA-H3 16-32/48C16CF-R02C 16.00 16.00 32.00 92.00 3 48.00 5.0 C 0.20 • 0.05-0.13
ECA-H3 16-32/80C16CF-R02C 16.00 16.00 32.00 127.00 3 80.00 5.0 C 0.20 • 0.05-0.13
ECA-H3 16-34/64C16CF-R02 16.00 16.00 34.00 115.00 3 64.00 5.0 C 0.20 • 0.05-0.13
ECA-H3 16-34/64C16CF-R02D 16.00 16.00 34.00 115.00 3 64.00 5.0 C 0.20 • 0.05-0.13
ECA-H3 20-30/100C20CF-R02 20.00 20.00 30.00 150.00 3 100.00 5.0 C 0.20 • 0.05-0.14
ECA-H3 20-30/100C20CF-R04 20.00 20.00 30.00 150.00 3 100.00 5.0 C 0.40 • 0.05-0.14
ECA-H3 20-30/100C20CF-R08 20.00 20.00 30.00 150.00 3 100.00 5.0 C 0.80 • 0.05-0.14
ECA-H3 20-30/100C20CF-R32 20.00 20.00 30.00 150.00 3 100.00 5.0 C 3.20 • 0.05-0.14
ECA-H3 20-30/100C20CF-R40 20.00 20.00 30.00 150.00 3 100.00 5.0 C 4.00 • 0.05-0.14
ECA-H3 20-30/100C20CF-R50 20.00 20.00 30.00 150.00 3 100.00 5.0 C 5.00 • 0.05-0.14
ECA-H3 20-30/60C20CF-R02 20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.20 • 0.05-0.14
ECA-H3 20-30/60C20CF-R02D 20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.20 • 0.05-0.14
ECA-H3 20-30/60C20CF-R04 20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.40 • 0.05-0.14
ECA-H3 20-30/60C20CF-R08 20.00 20.00 30.00 110.00 3 60.00 5.0 C 0.80 • 0.05-0.14
ECA-H3 20-30/60C20CF-R16 20.00 20.00 30.00 110.00 3 60.00 5.0 C 1.60 • 0.05-0.14
ECA-H3 20-30/60C20CF-R20 20.00 20.00 30.00 110.00 3 60.00 5.0 C 2.00 • 0.05-0.14
ECA-H3 20-30/60C20CF-R32 20.00 20.00 30.00 110.00 3 60.00 5.0 C 3.20 • 0.05-0.14
ECA-H3 20-30/60C20CF-R40 20.00 20.00 30.00 110.00 3 60.00 5.0 C 4.00 • 0.05-0.14
ECA-H3 20-30/60C20CF-R50 20.00 20.00 30.00 110.00 3 60.00 5.0 C 5.00 • 0.05-0.14
ECA-H3 20-40/60C20CF-R02C 20.00 20.00 40.00 109.00 3 60.00 5.0 C 0.20 • 0.05-0.14
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
