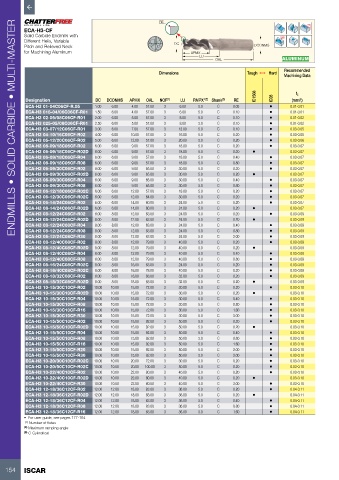

Page 156 - ISCAR(MILLINGCATALOG 38_2021)

RE Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECA-H3-CF
Solid Carbide Endmills with
Different Helix, Variable DC
Pitch and Relieved Neck DCONMS
for Machining Aluminum APMX
LU
OAL ALUMINUM

Recommended
Dimensions Tough 1 Hard Machining Data

IC1508 fz
Designation DC DCONMS APMX OAL NOF (1) LU RMPX° (2) Shank (3) RE IC08 (mm/t)
ECA-H3 01-04C06CF-R.05 1.00 6.00 4.00 57.00 3 6.00 5.0 C 0.05 • 0.01-0.01
ECA-H3 015-04/06C06CF-R01 1.50 6.00 4.00 57.00 3 6.00 5.0 C 0.10 • 0.01-0.01
ECA-H3 02-05/08C06CF-R01 2.00 6.00 5.00 57.00 3 8.00 5.0 C 0.10 • 0.01-0.02
ECA-H3 025-05/08C06CF-R01 2.50 6.00 5.00 57.00 3 8.00 5.0 C 0.10 • 0.01-0.02
ECA-H3 03-07/12C06CF-R01 3.00 6.00 7.00 57.00 3 12.00 5.0 C 0.10 • 0.03-0.05
ECA-H3 04-10/16C06CF-R02 4.00 6.00 10.00 57.00 3 16.00 5.0 C 0.20 • 0.03-0.05
ECA-H3 05-12/20C06CF-R02 5.00 6.00 12.00 57.00 3 20.00 5.0 C 0.20 • 0.03-0.06
ECA-H3 06-09/18C06CF-R02 6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 06-09/18C06CF-R02D 6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 06-09/18C06CF-R04 6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.40 • 0.03-0.07
ECA-H3 06-09/18C06CF-R08 6.00 6.00 9.00 57.00 3 18.00 5.0 C 0.80 • 0.03-0.07
ECA-H3 06-09/30C06CF-R02 6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 06-09/30C06CF-R02D 6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 06-09/30C06CF-R04 6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.40 • 0.03-0.07
ECA-H3 06-09/30C06CF-R08 6.00 6.00 9.00 65.00 3 30.00 5.0 C 0.80 • 0.03-0.07
ECA-H3 06-12/18C06CF-R02C 6.00 6.00 12.00 57.00 3 18.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 06-12/30C06CF-R02C 6.00 6.00 12.00 64.00 3 30.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 06-14/24C06CF-R02 6.00 6.00 14.00 60.00 3 24.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 06-14/24C06CF-R02D 6.00 6.00 14.00 60.00 3 24.00 5.0 C 0.20 • 0.03-0.07
ECA-H3 08-12/24C08CF-R02 8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 08-12/24C08CF-R02D 8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 08-12/24C08CF-R04 8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.40 • 0.03-0.09
ECA-H3 08-12/24C08CF-R08 8.00 8.00 12.00 63.00 3 24.00 5.0 C 0.80 • 0.03-0.09
ECA-H3 08-12/24C08CF-R30 8.00 8.00 12.00 63.00 3 24.00 5.0 C 3.00 • 0.03-0.09
ECA-H3 08-12/40C08CF-R02 8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 08-12/40C08CF-R02D 8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 08-12/40C08CF-R04 8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.40 • 0.03-0.09
ECA-H3 08-12/40C08CF-R08 8.00 8.00 12.00 79.00 3 40.00 5.0 C 0.80 • 0.03-0.09
ECA-H3 08-16/24C08CF-R02C 8.00 8.00 16.00 63.00 3 24.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 08-16/40C08CF-R02C 8.00 8.00 16.00 78.00 3 40.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 08-18/32C08CF-R02 8.00 8.00 18.00 68.00 3 32.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 08-18/32C08CF-R02D 8.00 8.00 18.00 68.00 3 32.00 5.0 C 0.20 • 0.03-0.09
ECA-H3 10-15/30C10CF-R02 10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-15/30C10CF-R02D 10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-15/30C10CF-R04 10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.40 • 0.03-0.10
ECA-H3 10-15/30C10CF-R08 10.00 10.00 15.00 72.00 3 30.00 5.0 C 0.80 • 0.03-0.10
ECA-H3 10-15/30C10CF-R16 10.00 10.00 15.00 72.00 3 30.00 5.0 C 1.60 • 0.03-0.10
ECA-H3 10-15/30C10CF-R30 10.00 10.00 15.00 72.00 3 30.00 5.0 C 3.00 • 0.03-0.10
ECA-H3 10-15/50C10CF-R02 10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-15/50C10CF-R02D 10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-15/50C10CF-R04 10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.40 • 0.03-0.10
ECA-H3 10-15/50C10CF-R08 10.00 10.00 15.00 92.00 3 50.00 5.0 C 0.80 • 0.03-0.10
ECA-H3 10-15/50C10CF-R16 10.00 10.00 15.00 92.00 3 50.00 5.0 C 1.60 • 0.03-0.10
ECA-H3 10-15/50C10CF-R20 10.00 10.00 15.00 92.00 3 50.00 5.0 C 2.00 • 0.03-0.10
ECA-H3 10-15/50C10CF-R30 10.00 10.00 15.00 92.00 3 50.00 5.0 C 3.00 • 0.03-0.10
ECA-H3 10-20/30C10CF-R02C 10.00 10.00 20.00 72.00 3 30.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-20/50C10CF-R02C 10.00 10.00 20.00 100.00 3 50.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-22/40C10CF-R02 10.00 10.00 22.00 80.00 3 40.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-22/40C10CF-R02D 10.00 10.00 22.00 80.00 3 40.00 5.0 C 0.20 • 0.03-0.10
ECA-H3 10-22/40C10CF-R30 10.00 10.00 22.00 80.00 3 40.00 5.0 C 3.00 • 0.03-0.10
ECA-H3 12-18/36C12CF-R02 12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.20 • 0.04-0.11
ECA-H3 12-18/36C12CF-R02D 12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.20 • 0.04-0.11
ECA-H3 12-18/36C12CF-R04 12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.40 • 0.04-0.11
ECA-H3 12-18/36C12CF-R08 12.00 12.00 18.00 83.00 3 36.00 5.0 C 0.80 • 0.04-0.11
ECA-H3 12-18/36C12CF-R16 12.00 12.00 18.00 83.00 3 36.00 5.0 C 1.60 • 0.04-0.11
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
