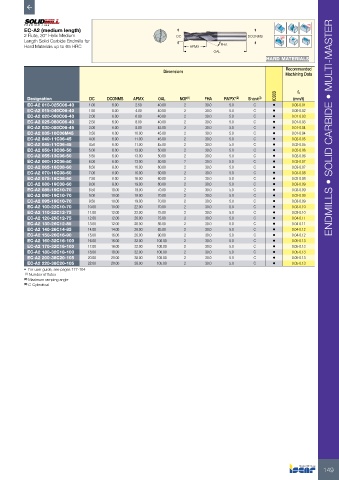

Page 151 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
EC-A2 (medium length)

2 Flute, 30° Helix Medium DC DCONMS
Length Solid Carbide Endmills for
Hard Materials up to 65 HRC APMX FHA
OAL
HARD MATERIALS

Dimensions Recommended
Machining Data

IC903 fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) (mm/t)
EC-A2 010-025C06-40 1.00 6.00 2.50 40.00 2 30.0 5.0 C • 0.00-0.01
EC-A2 015-040C06-40 1.50 6.00 4.00 40.00 2 30.0 5.0 C • 0.00-0.02
EC-A2 020-060C06-40 2.00 6.00 6.00 40.00 2 30.0 5.0 C • 0.01-0.03
EC-A2 025-080C06-40 2.50 6.00 8.00 40.00 2 30.0 5.0 C • 0.01-0.03
EC-A2 030-080C06-45 3.00 6.00 8.00 45.00 2 30.0 5.0 C • 0.01-0.04 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A2 035-10C06M45 3.50 6.00 10.00 45.00 2 30.0 5.0 C • 0.01-0.04
EC-A2 040-11C06-45 4.00 6.00 11.00 45.00 2 30.0 5.0 C • 0.02-0.05
EC-A2 045-11C06-45 4.50 6.00 11.00 45.00 2 30.0 5.0 C • 0.02-0.05
EC-A2 050-13C06-50 5.00 6.00 13.00 50.00 2 30.0 5.0 C • 0.02-0.06
EC-A2 055-13C06-50 5.50 6.00 13.00 50.00 2 30.0 5.0 C • 0.02-0.06
EC-A2 060-13C06-50 6.00 6.00 13.00 50.00 2 30.0 5.0 C • 0.03-0.07
EC-A2 065-16C08-60 6.50 8.00 16.00 60.00 2 30.0 5.0 C • 0.03-0.07
EC-A2 070-16C08-60 7.00 8.00 16.00 60.00 2 30.0 5.0 C • 0.03-0.08
EC-A2 075-16C08-60 7.50 8.00 16.00 60.00 2 30.0 5.0 C • 0.03-0.08
EC-A2 080-19C08-60 8.00 8.00 19.00 60.00 2 30.0 5.0 C • 0.03-0.09
EC-A2 085-19C10-70 8.50 10.00 19.00 70.00 2 30.0 5.0 C • 0.03-0.09
EC-A2 090-19C10-70 9.00 10.00 19.00 70.00 2 30.0 5.0 C • 0.03-0.09
EC-A2 095-19C10-70 9.50 10.00 19.00 70.00 2 30.0 5.0 C • 0.03-0.09
EC-A2 100-22C10-70 10.00 10.00 22.00 70.00 2 30.0 5.0 C • 0.03-0.10
EC-A2 110-22C12-75 11.00 12.00 22.00 75.00 2 30.0 5.0 C • 0.03-0.10
EC-A2 120-26C12-75 12.00 12.00 26.00 75.00 2 30.0 5.0 C • 0.04-0.11
EC-A2 130-26C12-85 13.00 12.00 26.00 85.00 2 30.0 5.0 C • 0.04-0.11
EC-A2 140-26C14-85 14.00 14.00 26.00 85.00 2 30.0 5.0 C • 0.04-0.12
EC-A2 150-26C16-90 15.00 16.00 26.00 90.00 2 30.0 5.0 C • 0.04-0.12
EC-A2 160-32C16-100 16.00 16.00 32.00 100.00 2 30.0 5.0 C • 0.05-0.13
EC-A2 170-32C16-100 17.00 16.00 32.00 100.00 2 30.0 5.0 C • 0.05-0.13
EC-A2 180-32C18-100 18.00 18.00 32.00 100.00 2 30.0 5.0 C • 0.05-0.13
EC-A2 200-38C20-105 20.00 20.00 38.00 105.00 2 30.0 5.0 C • 0.05-0.13
EC-A2 220-38C20-105 22.00 20.00 38.00 105.00 2 30.0 5.0 C • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical

149
