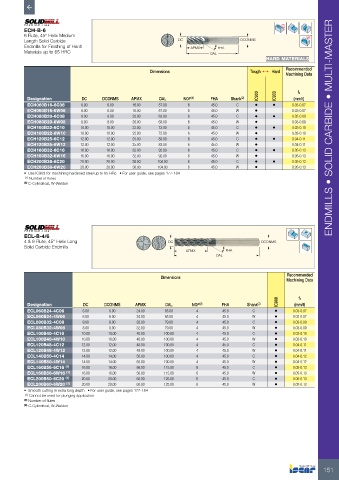

Rd°
ECH-B-6
6 Flute, 45° Helix Medium
Length Solid Carbide DC DCONMS
Endmills for Finishing of Hard APMX FHA
Materials up to 65 HRC OAL
HARD MATERIALS

Dimensions Tough 1 Hard Recommended
Machining Data

IC900 IC903 fz
Designation DC DCONMS APMX OAL NOF (1) FHA Shank (2) (mm/t)
ECH060B16-6C06 6.00 6.00 16.00 57.00 6 45.0 C • • 0.03-0.07
ECH060B16-6W06 6.00 6.00 16.00 57.00 6 45.0 W • 0.03-0.07
ECH080B20-6C08 8.00 8.00 20.00 63.00 6 45.0 C • • 0.03-0.09
ECH080B20-6W08 8.00 8.00 20.00 63.00 6 45.0 W • 0.03-0.09
ECH100B22-6C10 10.00 10.00 22.00 72.00 6 45.0 C • • 0.03-0.10 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECH100B22-6W10 10.00 10.00 22.00 72.00 6 45.0 W • 0.03-0.10
ECH120B25-6C12 12.00 12.00 25.00 83.00 6 45.0 C • • 0.04-0.11
ECH120B25-6W12 12.00 12.00 25.00 83.00 6 45.0 W • 0.04-0.11
ECH160B32-6C16 16.00 16.00 32.00 92.00 6 45.0 C • • 0.05-0.13
ECH160B32-6W16 16.00 16.00 32.00 92.00 6 45.0 W • 0.05-0.13
ECH200B38-6C20 20.00 20.00 38.00 104.00 6 45.0 C • • 0.05-0.13
ECH200B38-6W20 20.00 20.00 38.00 104.00 6 45.0 W • 0.05-0.13
• Use IC903 for machining hardened steel up to 65 HRc • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical, W-Weldon

ECL-B-4/6
4 & 6 Flute, 45° Helix Long DC DCONMS
Solid Carbide Endmills
APMX FHA
OAL

Recommended
Dimensions
Machining Data

IC900 fz
Designation DC DCONMS APMX OAL NOF (2) FHA Shank (3) (mm/t)
ECL060B24-4C06 6.00 6.00 24.00 65.00 4 45.0 C • 0.03-0.07
ECL060B24-4W06 6.00 6.00 24.00 65.00 4 45.0 W • 0.03-0.07
ECL080B32-4C08 8.00 8.00 32.00 79.00 4 45.0 C • 0.03-0.09
ECL080B32-4W08 8.00 8.00 32.00 79.00 4 45.0 W • 0.03-0.09
ECL100B40-4C10 10.00 10.00 40.00 100.00 4 45.0 C • 0.03-0.10
ECL100B40-4W10 10.00 10.00 40.00 100.00 4 45.0 W • 0.03-0.10
ECL120B48-4C12 12.00 12.00 48.00 100.00 4 45.0 C • 0.04-0.11
ECL120B48-4W12 12.00 12.00 48.00 100.00 4 45.0 W • 0.04-0.11
ECL140B50-4C14 14.00 14.00 50.00 100.00 4 45.0 C • 0.04-0.12
ECL140B50-4W14 14.00 14.00 50.00 100.00 4 45.0 W • 0.04-0.12
ECL160B56-6C16 (1) 16.00 16.00 56.00 115.00 6 45.0 C • 0.05-0.13
ECL160B56-6W16 (1) 16.00 16.00 56.00 115.00 6 45.0 W • 0.05-0.13
ECL200B60-6C20 (1) 20.00 20.00 60.00 125.00 6 45.0 C • 0.05-0.13
ECL200B60-6W20 (1) 20.00 20.00 60.00 125.00 6 45.0 W • 0.05-0.13
• Smooth cutting in extra long depth • For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Number of flutes
(3) C-Cylindrical, W-Weldon

151
