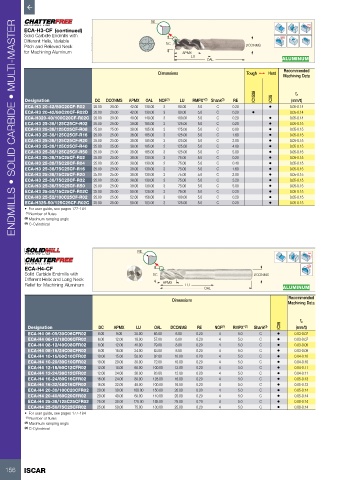

Page 158 - ISCAR(MILLINGCATALOG 38_2021)

RE Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECA-H3-CF (continued)
Solid Carbide Endmills with
Different Helix, Variable DC
Pitch and Relieved Neck DCONMS
for Machining Aluminum APMX
LU
OAL ALUMINUM

Dimensions Tough 1 Hard Recommended
Machining Data

IC1508 fz
Designation DC DCONMS APMX OAL NOF (1) LU RMPX° (2) Shank (3) RE IC08 (mm/t)
ECA-H3 20-42/80C20CF-R02 20.00 20.00 42.00 130.00 3 80.00 5.0 C 0.20 • 0.05-0.14
ECA-H3 20-42/80C20CF-R02D 20.00 20.00 42.00 130.00 3 80.00 5.0 C 0.20 • 0.05-0.14
ECA-H320-40/100C20CF-R02C 20.00 20.00 40.00 149.00 3 100.00 5.0 C 0.20 • 0.05-0.14
ECA-H3 25-38/125C25CF-R02 25.00 25.00 38.00 185.00 3 125.00 5.0 C 0.20 • 0.05-0.15
ECA-H3 25-38/125C25CF-R08 25.00 25.00 38.00 185.00 3 125.00 5.0 C 0.80 • 0.05-0.15
ECA-H3 25-38/125C25CF-R16 25.00 25.00 38.00 185.00 3 125.00 5.0 C 1.60 • 0.05-0.15
ECA-H3 25-38/125C25CF-R20 25.00 25.00 38.00 185.00 3 125.00 5.0 C 2.00 • 0.05-0.15
ECA-H3 25-38/125C25CF-R40 25.00 25.00 38.00 185.00 3 125.00 5.0 C 4.00 • 0.05-0.15
ECA-H3 25-38/125C25CF-R50 25.00 25.00 38.00 185.00 3 125.00 5.0 C 5.00 • 0.05-0.15
ECA-H3 25-38/75C25CF-R02 25.00 25.00 38.00 130.00 3 75.00 5.0 C 0.20 • 0.05-0.15
ECA-H3 25-38/75C25CF-R04 25.00 25.00 38.00 130.00 3 75.00 5.0 C 0.40 • 0.05-0.15
ECA-H3 25-38/75C25CF-R16 25.00 25.00 38.00 130.00 3 75.00 5.0 C 1.60 • 0.05-0.15
ECA-H3 25-38/75C25CF-R20 25.00 25.00 38.00 130.00 3 75.00 5.0 C 2.00 • 0.05-0.15
ECA-H3 25-38/75C25CF-R32 25.00 25.00 38.00 130.00 3 75.00 5.0 C 3.20 • 0.05-0.15
ECA-H3 25-38/75C25CF-R50 25.00 25.00 38.00 130.00 3 75.00 5.0 C 5.00 • 0.05-0.15
ECA-H3 25-50/75C25CF-R02C 25.00 25.00 50.00 128.00 3 75.00 5.0 C 0.20 • 0.05-0.15
ECA-H3 25-52/100C25CF-R02 25.00 25.00 52.00 156.00 3 100.00 5.0 C 0.20 • 0.05-0.15
ECA-H325-50/125C25CF-R02C 25.00 25.00 50.00 183.00 3 125.00 5.0 C 0.20 • 0.05-0.15
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical

RE Rd°

ECA-H4-CF
Solid Carbide Endmills with DC DCONMS
Different Helix and Long Neck
Relief for Machining Aluminum APMX LU
OAL ALUMINUM
Recommended
Dimensions
Machining Data

fz
Designation DC APMX LU OAL DCONMS RE NOF (1) RMPX° (2) Shank (3) IC08 (mm/t)
ECA-H4 06-09/30C06CFR02 6.00 9.00 30.00 65.00 6.00 0.20 4 5.0 C • 0.03-0.07
ECA-H4 06-12/18C06CFR02 6.00 12.00 18.00 57.00 6.00 0.20 4 5.0 C • 0.03-0.07
ECA-H4 08-12/40C08CFR02 8.00 12.00 40.00 79.00 8.00 0.20 4 5.0 C • 0.03-0.09
ECA-H4 08-16/24C08CFR02 8.00 16.00 24.00 63.00 8.00 0.20 4 5.0 C • 0.03-0.09
ECA-H4 10-15/50C10CFR02 10.00 15.00 50.00 92.00 10.00 0.20 4 5.0 C • 0.04-0.10
ECA-H4 10-20/30C10CFR02 10.00 20.00 30.00 72.00 10.00 0.20 4 5.0 C • 0.04-0.10
ECA-H4 12-18/60C12CFR02 12.00 18.00 60.00 100.00 12.00 0.20 4 5.0 C • 0.04-0.11
ECA-H4 12-24/36C12CFR02 12.00 24.00 36.00 83.00 12.00 0.20 4 5.0 C • 0.04-0.11
ECA-H4 16-24/80C16CFR02 16.00 24.00 80.00 128.00 16.00 0.20 4 5.0 C • 0.05-0.13
ECA-H4 16-32/48C16CFR02 16.00 32.00 48.00 100.00 16.00 0.20 4 5.0 C • 0.05-0.13
ECA-H4 20-30/100C20CFR02 20.00 30.00 100.00 150.00 20.00 0.20 4 5.0 C • 0.05-0.14
ECA-H4 20-40/60C20CFR02 20.00 40.00 60.00 110.00 20.00 0.20 4 5.0 C • 0.05-0.14
ECA-H4 25-38/125C25CFR02 25.00 38.00 125.00 185.00 25.00 0.20 4 5.0 C • 0.08-0.14
ECA-H4 25-50/75C25CFR02 25.00 50.00 75.00 130.00 25.00 0.20 4 5.0 C • 0.08-0.14
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
