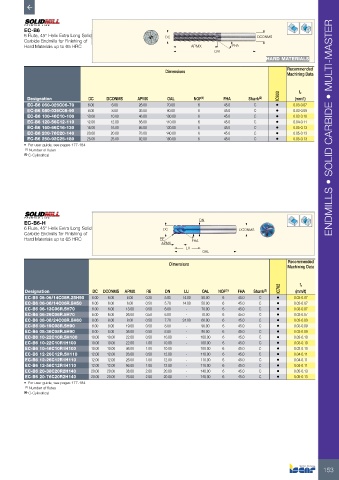

Page 155 - ISCAR(MILLINGCATALOG 38_2021)

EC-B6
6 Flute, 45° Helix Extra Long Solid DC DCONMS
Carbide Endmills for Finishing of
Hard Materials up to 65 HRC APMX FHA
OAL
HARD MATERIALS

Dimensions Recommended
Machining Data

IC903 fz
Designation DC DCONMS APMX OAL NOF (1) FHA Shank (2) (mm/t)
EC-B6 060-026C06-70 6.00 6.00 26.00 70.00 6 45.0 C • 0.03-0.07
EC-B6 080-036C08-90 8.00 8.00 36.00 90.00 6 45.0 C • 0.03-0.09
EC-B6 100-46C10-100 10.00 10.00 46.00 100.00 6 45.0 C • 0.03-0.10
EC-B6 120-56C12-110 12.00 12.00 56.00 110.00 6 45.0 C • 0.04-0.11
EC-B6 160-66C16-130 16.00 16.00 66.00 130.00 6 45.0 C • 0.05-0.13 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-B6 200-76C20-140 20.00 20.00 76.00 140.00 6 45.0 C • 0.05-0.13
EC-B6 250-92C25-180 25.00 25.00 92.00 180.00 6 45.0 C • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical

EC-B6-H DN
6 Flute, 45° Helix Extra Long Solid DC DCONMS
Carbide Endmills for Finishing of
Hard Materials up to 65 HRC RE FHA
APMX
LU
OAL
Recommended
Dimensions
Machining Data

IC702 fz
Designation DC DCONMS APMX RE DN LU OAL NOF (1) FHA Shank (2) (mm/t)
EC-B6 06-06/14C06R.25H50 6.00 6.00 6.00 0.25 5.85 14.00 50.00 6 45.0 C • 0.03-0.07
EC-B6 06-06/14C06R.5H50 6.00 6.00 6.00 0.50 5.70 14.00 50.00 6 45.0 C • 0.03-0.07
EC-B6 06-13C06R.5H70 6.00 6.00 13.00 0.50 6.00 - 70.00 6 45.0 C • 0.03-0.07
EC-B6 06-26C06R.5H70 6.00 6.00 26.00 0.50 6.00 - 70.00 6 45.0 C • 0.03-0.07
EC-B6 08-08/24C08R.5H60 8.00 8.00 8.00 0.50 7.70 24.00 60.00 6 45.0 C • 0.03-0.09
EC-B6 08-19C08R.5H90 8.00 8.00 19.00 0.50 8.00 - 90.00 6 45.0 C • 0.03-0.09
EC-B6 08-36C08R.5H90 8.00 8.00 36.00 0.50 8.00 - 90.00 6 45.0 C • 0.03-0.09
EC-B6 10-22C10R.5H100 10.00 10.00 22.00 0.50 10.00 - 100.00 6 45.0 C • 0.03-0.10
EC-B6 10-22C10R1H100 10.00 10.00 22.00 1.00 10.00 - 100.00 6 45.0 C • 0.03-0.10
EC-B6 10-46C10R1H100 10.00 10.00 46.00 1.00 10.00 - 100.00 6 45.0 C • 0.03-0.10
EC-B6 12-26C12R.5H110 12.00 12.00 26.00 0.50 12.00 - 110.00 6 45.0 C • 0.04-0.11
EC-B6 12-26C12R1H110 12.00 12.00 26.00 1.00 12.00 - 110.00 6 45.0 C • 0.04-0.11
EC-B6 12-56C12R1H110 12.00 12.00 56.00 1.00 12.00 - 110.00 6 45.0 C • 0.04-0.11
EC-B6 20-38C20R2H140 20.00 20.00 38.00 2.00 20.00 - 140.00 6 45.0 C • 0.05-0.13
EC-B6 20-76C20R2H140 20.00 20.00 76.00 2.00 20.00 - 140.00 6 45.0 C • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
