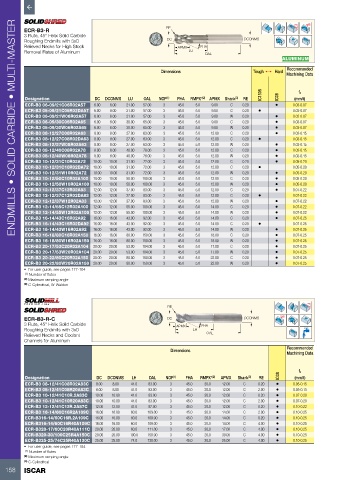

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECR-B3-R RE

3 Flute, 45° Helix Solid Carbide
Roughing Endmills with 3xD DC DCONMS
Relieved Necks for High Stock APMX FHA
Removal Rates of Aluminum LU OAL
ALUMINUM

Dimensions Tough 1 Hard Recommended
Machining Data

IC1508 fz
Designation DC DCONMS LU OAL NOF (1) FHA RMPX° (2) APMX Shank (3) RE IC08 (mm/t)
ECR-B3 06-09/21C06R02A57 6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 C 0.20 • 0.03-0.07
ECR-B3 06-09/21C06R02DA57 6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 C 0.20 • 0.03-0.07
ECR-B3 06-09/21W06R02A57 6.00 6.00 21.00 57.00 3 45.0 5.0 9.00 W 0.20 • 0.03-0.07
ECR-B3 06-09/30C06R02A65 6.00 6.00 30.00 65.00 3 45.0 5.0 9.00 C 0.20 • 0.03-0.07
ECR-B3 06-09/30W06R02A65 6.00 6.00 30.00 65.00 3 45.0 5.0 9.00 W 0.20 • 0.03-0.07
ECR-B3 08-12/27C08R02A63 8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 C 0.20 • 0.03-0.15
ECR-B3 08-12/27C08R02DA63 8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 C 0.20 • 0.03-0.15
ECR-B3 08-12/27W08R02A63 8.00 8.00 27.00 63.00 3 45.0 5.0 12.00 W 0.20 • 0.03-0.15
ECR-B3 08-12/40C08R02A78 8.00 8.00 40.00 78.00 3 45.0 5.0 12.00 C 0.20 • 0.03-0.15
ECR-B3 08-12/40W08R02A78 8.00 8.00 40.00 78.00 3 45.0 5.0 12.00 W 0.20 • 0.03-0.15
ECR-B3 10-12/31C10R02A72 10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 C 0.20 • 0.05-0.20
ECR-B3 10-12/31C10R02DA72 10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 C 0.20 • 0.05-0.20
ECR-B3 10-12/31W10R02A72 10.00 10.00 31.00 72.00 3 45.0 5.0 12.00 W 0.20 • 0.05-0.20
ECR-B3 10-12/50C10R02A100 10.00 10.00 50.00 100.00 3 45.0 5.0 12.00 C 0.20 • 0.05-0.20
ECR-B3 10-12/50W10R02A100 10.00 10.00 50.00 100.00 3 45.0 5.0 12.00 W 0.20 • 0.05-0.20
ECR-B3 12-12/37C12R02A83 12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 C 0.20 • 0.07-0.22
ECR-B3 12-12/37C12R02DA83 12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 C 0.20 • 0.07-0.22
ECR-B3 12-12/37W12R02A83 12.00 12.00 37.00 83.00 3 45.0 5.0 12.00 W 0.20 • 0.07-0.22
ECR-B3 12-14/55C12R02A100 12.00 12.00 55.00 100.00 3 45.0 5.0 14.00 C 0.20 • 0.07-0.22
ECR-B3 12-14/55W12R02A100 12.00 12.00 55.00 100.00 3 45.0 5.0 14.00 W 0.20 • 0.07-0.22
ECR-B3 16-14/43C16R02A92 16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 C 0.20 • 0.07-0.25
ECR-B3 16-14/43C16R02DA92 16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 C 0.20 • 0.07-0.25
ECR-B3 16-14/43W16R02A92 16.00 16.00 43.00 92.00 3 45.0 5.0 14.00 W 0.20 • 0.07-0.25
ECR-B3 16-18/80C16R02A150 16.00 16.00 80.00 150.00 3 45.0 5.0 18.00 C 0.20 • 0.07-0.25
ECR-B3 16-18/80W16R02A150 16.00 16.00 80.00 150.00 3 45.0 5.0 18.00 W 0.20 • 0.07-0.25
ECR-B3 20-17/53C20R02A104 20.00 20.00 53.00 104.00 3 45.0 5.0 17.00 C 0.20 • 0.07-0.25
ECR-B3 20-17/53W20R02A104 20.00 20.00 53.00 104.00 3 45.0 5.0 17.00 W 0.20 • 0.07-0.25
ECR-B3 20-22/80C20R02A150 20.00 20.00 80.00 150.00 3 45.0 5.0 22.00 C 0.20 • 0.07-0.25
ECR-B3 20-22/80W20R02A150 20.00 20.00 80.00 150.00 3 45.0 5.0 22.00 W 0.20 • 0.07-0.25
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon

Rd°
RE
ECR-B3-R-C DC DCONMS
3 Flute, 45° Helix Solid Carbide APMX FHA
Roughing Endmills with 3xD LH
Relieved Necks and Coolant OAL
Channels for Aluminum
Recommended
Dimensions
Machining Data

fz
Designation DC DCONMS LH OAL NOF (1) FHA RMPX° (2) APMX Shank (3) RE IC08 (mm/t)
ECR-B3 08-12/41C08R02A83C 8.00 8.00 41.0 83.00 3 45.0 20.0 12.00 C 0.20 • 0.05-0.15
ECR-B3 08-12/41C08R20A83C 8.00 8.00 41.0 83.00 3 45.0 20.0 12.00 C 2.00 • 0.05-0.15
ECR-B3 10-12/41C10R.2A83C 10.00 10.00 41.0 83.00 3 45.0 20.0 12.00 C 0.20 • 0.07-0.20
ECR-B3 10-12/41C10R20A83C 10.00 10.00 41.0 83.00 3 45.0 20.0 12.00 C 2.00 • 0.07-0.20
ECR-B3 12-12/41C12R.2A87C 12.00 12.00 41.0 87.00 3 45.0 20.0 12.00 C 0.20 • 0.10-0.22
ECR-B3 16-14/60C16R2A109C 16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 2.00 • 0.10-0.25
ECR-B316-14/60C16R.2A109C 16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 0.20 • 0.10-0.25
ECR-B316-14/60C16R40A109C 16.00 16.00 60.0 109.00 3 45.0 20.0 14.00 C 4.00 • 0.10-0.25
ECR-B320-17/60C20R40A111C 20.00 20.00 60.0 111.00 3 45.0 20.0 17.00 C 4.00 • 0.10-0.25
ECR-B320-30/100C25R4A150C 20.00 20.00 100.0 150.00 3 45.0 20.0 30.00 C 4.00 • 0.10-0.25
ECR-B325-25/74C25R40A130C 25.00 25.00 74.0 130.00 3 45.0 20.0 25.00 C 4.00 • 0.10-0.25
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
