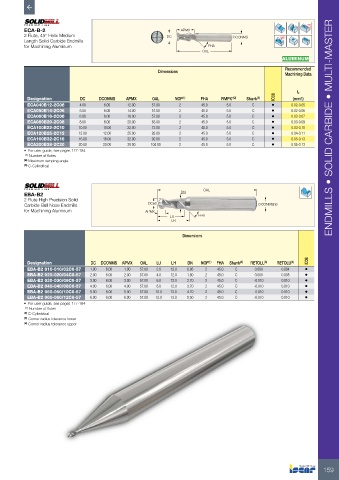

Page 161 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ECA-B-2 APMX
2 Flute, 45° Helix Medium DC DCONMS
Length Solid Carbide Endmills
for Machining Aluminum FHA
OAL
ALUMINUM

Dimensions Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) IC08 (mm/t)
ECA040B12-2C06 4.00 6.00 12.00 57.00 2 45.0 5.0 C • 0.02-0.05
ECA050B14-2C06 5.00 6.00 14.00 57.00 2 45.0 5.0 C • 0.02-0.06
ECA060B16-2C06 6.00 6.00 16.00 57.00 2 45.0 5.0 C • 0.03-0.07
ECA080B20-2C08 8.00 8.00 20.00 63.00 2 45.0 5.0 C • 0.03-0.09
ECA100B22-2C10 10.00 10.00 22.00 72.00 2 45.0 5.0 C • 0.03-0.10 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECA120B25-2C12 12.00 12.00 25.00 83.00 2 45.0 5.0 C • 0.04-0.11
ECA160B32-2C16 16.00 16.00 32.00 92.00 2 45.0 5.0 C • 0.05-0.13
ECA200B38-2C20 20.00 20.00 38.00 104.00 2 45.0 5.0 C • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical

EBA-B2 DN OAL
2 Flute High Precision Solid
Carbide Ball Nose Endmills DCe8 DCONMSh6
for Machining Aluminum APMX
LU FHA
LH

Dimensions

Designation DC DCONMS APMX OAL LU LH DN NOF (1) FHA Shank (2) RETOLL (3) RETOLU (4) IC08
EBA-B2 010-010/02C6-57 1.00 6.00 1.00 57.00 2.0 12.0 0.95 2 45.0 C 0.000 0.004 •
EBA-B2 020-020/04C6-57 2.00 6.00 2.00 57.00 4.0 12.0 1.80 2 45.0 C 0.000 0.005 •
EBA-B2 030-030/06C6-57 3.00 6.00 3.00 57.00 6.0 12.0 2.70 2 45.0 C -0.010 0.010 •
EBA-B2 040-040/08C6-57 4.00 6.00 4.00 57.00 8.0 12.0 3.70 2 45.0 C -0.010 0.010 •
EBA-B2 050-050/10C6-57 5.00 6.00 5.00 57.00 10.0 12.0 4.70 2 45.0 C -0.010 0.010 •
EBA-B2 060-060/12C6-57 6.00 6.00 6.00 57.00 12.0 13.0 5.50 2 45.0 C -0.010 0.010 •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper
