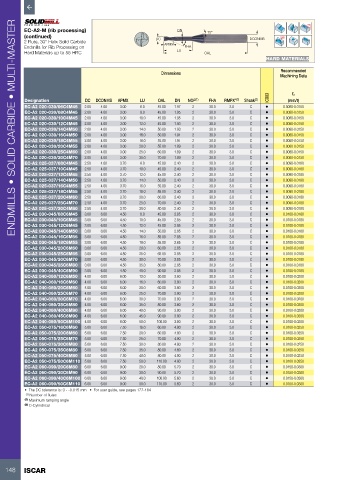

Page 150 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-A2-M (rib processing) DN 15°
(continued) DC DCONMS
2 Flute, 30° Helix Solid Carbide APMX
Endmills for Rib Processing on FHA
Hard Materials up to 55 HRC LU OAL
HARD MATERIALS

Dimensions Recommended
Machining Data

IC903 fz
Designation DC DCONMS APMX LU OAL DN NOF (1) FHA RMPX° (2) Shank (3) (mm/t)
EC-A2 020-030/06C4M45 2.00 4.00 3.00 6.0 45.00 1.97 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/08C4M45 2.00 4.00 3.00 8.0 45.00 1.95 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/10C4M45 2.00 4.00 3.00 10.0 45.00 1.95 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/12C4M45 2.00 4.00 3.00 12.0 45.00 1.93 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/14C4M50 2.00 4.00 3.00 14.0 50.00 1.93 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/16C4M50 2.00 4.00 3.00 16.0 50.00 1.91 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/18C4M55 2.00 4.00 3.00 18.0 55.00 1.91 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/20C4M55 2.00 4.00 3.00 20.0 55.00 1.89 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/25C4M60 2.00 4.00 3.00 25.0 60.00 1.89 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 020-030/30C4M70 2.00 4.00 3.00 30.0 70.00 1.89 2 30.0 3.0 C • 0.0080-0.0150
EC-A2 025-037/08C4M45 2.50 4.00 3.70 8.0 45.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/10C4M45 2.50 4.00 3.70 10.0 45.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/12C4M45 2.50 4.00 3.70 12.0 45.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/14C4M50 2.50 4.00 3.70 14.0 50.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/16C4M55 2.50 4.00 3.70 16.0 55.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/18C4M55 2.50 4.00 3.70 18.0 55.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/20C4M60 2.50 4.00 3.70 20.0 60.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/25C4M70 2.50 4.00 3.70 25.0 70.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 025-037/30C4M80 2.50 4.00 3.70 30.0 80.00 2.40 2 30.0 3.0 C • 0.0090-0.0180
EC-A2 030-045/08C6M45 3.00 6.00 4.50 8.0 45.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/10C6M45 3.00 6.00 4.50 10.0 45.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/12C6M45 3.00 6.00 4.50 12.0 45.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/14C6M50 3.00 6.00 4.50 14.0 50.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/16C6M55 3.00 6.00 4.50 16.0 55.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/18C6M55 3.00 6.00 4.50 18.0 55.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/20C6M60 3.00 6.00 4.50 20.0 60.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/25C6M65 3.00 6.00 4.50 25.0 65.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/30C6M70 3.00 6.00 4.50 30.0 70.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/35C6M80 3.00 6.00 4.50 35.0 80.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 030-045/40C6M90 3.00 6.00 4.50 40.0 90.00 2.85 2 30.0 3.0 C • 0.0100-0.0180
EC-A2 040-060/12C6M50 4.00 6.00 6.00 12.0 50.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/16C6M60 4.00 6.00 6.00 16.0 60.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/20C6M60 4.00 6.00 6.00 20.0 60.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/25C6M70 4.00 6.00 6.00 25.0 70.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/30C6M70 4.00 6.00 6.00 30.0 70.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/35C6M80 4.00 6.00 6.00 35.0 80.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/40C6M90 4.00 6.00 6.00 40.0 90.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/45C6M90 4.00 6.00 6.00 45.0 90.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 040-060/50C6M100 4.00 6.00 6.00 50.0 100.00 3.80 2 30.0 3.0 C • 0.0100-0.0200
EC-A2 050-075/16C6M60 5.00 6.00 7.50 16.0 60.00 4.80 2 30.0 3.0 C • 0.0100-0.0250
EC-A2 050-075/20C6M60 5.00 6.00 7.50 20.0 60.00 4.80 2 30.0 3.0 C • 0.0100-0.0250
EC-A2 050-075/25C6M70 5.00 6.00 7.50 25.0 70.00 4.80 2 30.0 3.0 C • 0.0100-0.0250
EC-A2 050-075/30C6M80 5.00 6.00 7.50 30.0 80.00 4.80 2 30.0 3.0 C • 0.0100-0.0250
EC-A2 050-075/35C6M80 5.00 6.00 7.50 35.0 80.00 4.80 2 30.0 3.0 C • 0.0100-0.0250
EC-A2 050-075/40C6M80 5.00 6.00 7.50 40.0 80.00 4.80 2 30.0 3.0 C • 0.0100-0.0250
EC-A2 050-075/50C6M110 5.00 6.00 7.50 50.0 110.00 4.80 2 30.0 3.0 C • 0.0100-0.0250
EC-A2 060-090/20C6M80 6.00 6.00 9.00 20.0 80.00 5.70 2 30.0 3.0 C • 0.0150-0.0300
EC-A2 060-090/30C6M90 6.00 6.00 9.00 30.0 90.00 5.70 2 30.0 3.0 C • 0.0150-0.0300
EC-A2 060-090/40C6M100 6.00 6.00 9.00 40.0 100.00 5.60 2 30.0 3.0 C • 0.0150-0.0300
EC-A2 060-090/50C6M110 6.00 6.00 9.00 50.0 110.00 5.60 2 30.0 3.0 C • 0.0150-0.0300
• The DC tolerance is: 0 - -0.015 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
