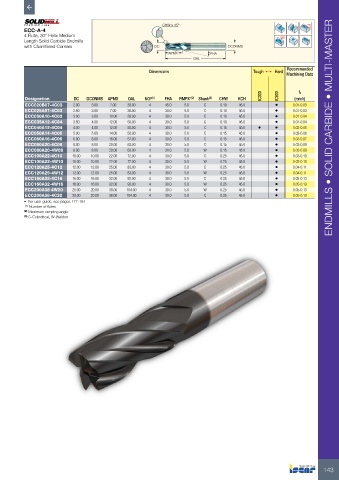

Page 145 - ISCAR(MILLINGCATALOG 38_2021)

CHW x 45° Rd°
ECC-A-4
4 Flute, 30° Helix Medium
Length Solid Carbide Endmills
with Chamfered Corners DC DCONMS
APMX FHA
OAL

Dimensions Tough 1 Hard Recommended
Machining Data

IC300 IC900 fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) CHW KCH (mm/t)
ECC020B07-4C03 2.00 3.00 7.00 38.00 4 45.0 5.0 C 0.10 45.0 • 0.01-0.03
ECC025A07-4C03 2.50 3.00 7.00 38.00 4 30.0 5.0 C 0.10 45.0 • 0.01-0.03
ECC030A10-4C03 3.00 3.00 10.00 38.00 4 30.0 5.0 C 0.10 45.0 • 0.01-0.04
ECC035A12-4C04 3.50 4.00 12.00 50.00 4 30.0 5.0 C 0.10 45.0 • 0.01-0.04
ECC040A12-4C04 4.00 4.00 12.00 50.00 4 30.0 5.0 C 0.15 45.0 • • 0.02-0.05 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECC050A14-4C05 5.00 5.00 14.00 50.00 4 30.0 5.0 C 0.15 45.0 • 0.02-0.06
ECC060A16-4C06 6.00 6.00 16.00 57.00 4 30.0 5.0 C 0.15 45.0 • 0.03-0.07
ECC080A20-4C08 8.00 8.00 20.00 63.00 4 30.0 5.0 C 0.15 45.0 • 0.03-0.09
ECC080A20-4W08 8.00 8.00 20.00 63.00 4 30.0 5.0 W 0.15 45.0 • 0.03-0.09
ECC100A22-4C10 10.00 10.00 22.00 72.00 4 30.0 5.0 C 0.25 45.0 • 0.03-0.10
ECC100A22-4W10 10.00 10.00 22.00 72.00 4 30.0 5.0 W 0.25 45.0 • 0.03-0.10
ECC120A25-4C12 12.00 12.00 25.00 83.00 4 30.0 5.0 C 0.25 45.0 • 0.04-0.11
ECC120A25-4W12 12.00 12.00 25.00 83.00 4 30.0 5.0 W 0.25 45.0 • 0.04-0.11
ECC160A32-4C16 16.00 16.00 32.00 92.00 4 30.0 5.0 C 0.25 45.0 • 0.05-0.13
ECC160A32-4W16 16.00 16.00 32.00 92.00 4 30.0 5.0 W 0.25 45.0 • 0.05-0.13
ECC200A38 4W20 20.00 20.00 38.00 104.00 4 30.0 5.0 W 0.25 45.0 • 0.05-0.13
ECC200A38-4C20 20.00 20.00 38.00 104.00 4 30.0 5.0 C 0.25 45.0 • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
