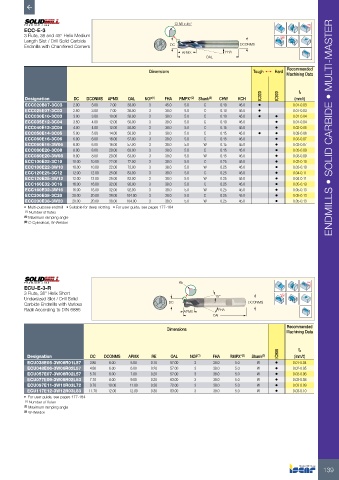

Page 141 - ISCAR(MILLINGCATALOG 38_2021)

CHW x 45° Rd°
ECC-E-3
3 Flute, 38 and 45° Helix Medium
Length Slot / Drill Solid Carbide
Endmills with Chamfered Corners DC DCONMS
APMX FHA
OAL

Dimensions Tough 1 Hard Recommended
Machining Data

IC300 IC900 fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) CHW KCH (mm/t)
ECC020B07-3C03 2.00 3.00 7.00 38.00 3 45.0 5.0 C 0.10 45.0 • 0.01-0.03
ECC025E07-3C03 2.50 3.00 7.00 38.00 3 38.0 5.0 C 0.10 45.0 • 0.01-0.03
ECC030E10-3C03 3.00 3.00 10.00 38.00 3 38.0 5.0 C 0.10 45.0 • • 0.01-0.04
ECC035E12-3C04 3.50 4.00 12.00 50.00 3 38.0 5.0 C 0.10 45.0 • 0.01-0.04
ECC040E12-3C04 4.00 4.00 12.00 50.00 3 38.0 5.0 C 0.15 45.0 • 0.02-0.05 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECC050E14-3C05 5.00 5.00 14.00 50.00 3 38.0 5.0 C 0.15 45.0 • • 0.02-0.06
ECC060E16-3C06 6.00 6.00 16.00 57.00 3 38.0 5.0 C 0.15 45.0 • 0.03-0.07
ECC060E16-3W06 6.00 6.00 16.00 57.00 3 38.0 5.0 W 0.15 45.0 • 0.03-0.07
ECC080E20-3C08 8.00 8.00 20.00 63.00 3 38.0 5.0 C 0.15 45.0 • 0.03-0.09
ECC080E20-3W08 8.00 8.00 20.00 63.00 3 38.0 5.0 W 0.15 45.0 • 0.03-0.09
ECC100E22-3C10 10.00 10.00 22.00 72.00 3 38.0 5.0 C 0.25 45.0 • 0.03-0.10
ECC100E22-3W10 10.00 10.00 22.00 72.00 3 38.0 5.0 W 0.25 45.0 • 0.03-0.10
ECC120E25-3C12 12.00 12.00 25.00 83.00 3 38.0 5.0 C 0.25 45.0 • 0.04-0.11
ECC120E25-3W12 12.00 12.00 25.00 83.00 3 38.0 5.0 W 0.25 45.0 • 0.04-0.11
ECC160E32-3C16 16.00 16.00 32.00 92.00 3 38.0 5.0 C 0.25 45.0 • 0.05-0.13
ECC160E32-3W16 16.00 16.00 32.00 92.00 3 38.0 5.0 W 0.25 45.0 • 0.05-0.13
ECC200E38-3C20 20.00 20.00 38.00 104.00 3 38.0 5.0 C 0.25 45.0 • 0.05-0.13
ECC200E38-3W20 20.00 20.00 38.00 104.00 3 38.0 5.0 W 0.25 45.0 • 0.05-0.13
• Multi-purpose endmill • Suitable for deep slotting • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon

RE Rd°
ECU-E-3-R
3 Flute, 38° Helix Short
Undersized Slot / Drill Solid 15°
Carbide Endmills with Various DC DCONMS
Radii According to DIN 6885 APMX FHA
OAL
Recommended
Dimensions
Machining Data

IC900 fz
Designation DC DCONMS APMX RE OAL NOF (1) FHA RMPX° (2) Shank (3) (mm/t)
ECU038E05-3W06R01L57 3.80 6.00 5.00 0.10 57.00 3 38.0 5.0 W • 0.01-0.04
ECU048E06-3W06R02L57 4.80 6.00 6.00 0.20 57.00 3 38.0 5.0 W • 0.02-0.05
ECU057E07-3W06R02L57 5.70 6.00 7.00 0.20 57.00 3 38.0 5.0 W • 0.02-0.06
ECU077E09-3W08R02L63 7.70 8.00 9.00 0.20 63.00 3 38.0 5.0 W • 0.03-0.08
ECU097E11-3W10R03L72 9.70 10.00 11.00 0.30 72.00 3 38.0 5.0 W • 0.03-0.09
ECU117E12-3W12R03L83 11.70 12.00 12.00 0.30 83.00 3 38.0 5.0 W • 0.03-0.10
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) W-Weldon

139
