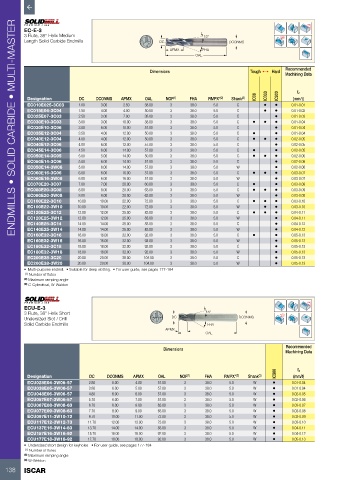

Page 140 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-E-3
3 Flute, 38° Helix Medium 15°
Length Solid Carbide Endmills DC DCONMS
APMX FHA
OAL

Dimensions Tough 1 Hard Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) IC08 IC300 IC900 (mm/t)
EC010E025-3C03 1.00 3.00 2.50 38.00 3 38.0 5.0 C • • 0.01-0.01
EC015E04-3C04 1.50 4.00 4.00 50.00 3 38.0 5.0 C • • 0.01-0.02
EC025E07-3C03 2.50 3.00 7.00 38.00 3 38.0 5.0 C • 0.01-0.03
EC030E10-3C03 3.00 3.00 10.00 38.00 3 38.0 5.0 C • • • 0.01-0.04
EC030E10-3C06 3.00 6.00 10.00 57.00 3 38.0 5.0 C • 0.01-0.04
EC035E12-3C04 3.50 4.00 12.00 50.00 3 38.0 5.0 C • • 0.01-0.04
EC040E12-3C04 4.00 4.00 12.00 50.00 3 38.0 5.0 C • • • 0.02-0.05
EC040E12-3C06 4.00 6.00 12.00 57.00 3 38.0 5.0 C • 0.02-0.05
EC045E14-3C06 4.50 6.00 14.00 57.00 3 38.0 5.0 C • • 0.02-0.05
EC050E14-3C05 5.00 5.00 14.00 50.00 3 38.0 5.0 C • • • 0.02-0.06
EC050E14-3C06 5.00 6.00 14.00 57.00 3 38.0 5.0 C • 0.02-0.06
EC050E14-3W06 5.00 6.00 14.00 57.00 3 38.0 5.0 W • 0.02-0.06
EC060E16-3C06 6.00 6.00 16.00 57.00 3 38.0 5.0 C • • • 0.03-0.07
EC060E16-3W06 6.00 6.00 16.00 57.00 3 38.0 5.0 W • 0.03-0.07
EC070E20-3C07 7.00 7.00 20.00 60.00 3 38.0 5.0 C • • 0.03-0.08
EC080E20-3C08 8.00 8.00 20.00 63.00 3 38.0 5.0 C • • • 0.03-0.09
EC080E20-3W08 8.00 8.00 20.00 63.00 3 38.0 5.0 W • 0.03-0.09
EC100E22-3C10 10.00 10.00 22.00 72.00 3 38.0 5.0 C • • • 0.03-0.10
EC100E22-3W10 10.00 10.00 22.00 72.00 3 38.0 5.0 W • • 0.03-0.10
EC120E25-3C12 12.00 12.00 25.00 83.00 3 38.0 5.0 C • • • 0.04-0.11
EC120E25-3W12 12.00 12.00 25.00 83.00 3 38.0 5.0 W • 0.04-0.11
EC140E25-3C14 14.00 14.00 25.00 83.00 3 38.0 5.0 C • 0.04-0.12
EC140E25-3W14 14.00 14.00 25.00 83.00 3 38.0 5.0 W • 0.04-0.12
EC160E32-3C16 16.00 16.00 32.00 92.00 3 38.0 5.0 C • • 0.05-0.13
EC160E32-3W16 16.00 16.00 32.00 92.00 3 38.0 5.0 W • 0.05-0.13
EC180E32-3C18 18.00 18.00 32.00 92.00 3 38.0 5.0 C • 0.05-0.13
EC180E32-3W18 18.00 18.00 32.00 92.00 3 38.0 5.0 W • 0.05-0.13
EC200E38-3C20 20.00 20.00 38.00 104.00 3 38.0 5.0 C • 0.05-0.13
EC200E38-3W20 20.00 20.00 38.00 104.00 3 38.0 5.0 W • 0.05-0.13
• Multi-purpose endmill. • Suitable for deep slotting. • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon

Rd°
ECU-E-3
3 Flute, 38° Helix Short 15°
Undersized Slot / Drill DC DCONMS
Solid Carbide Endmills FHA
APMX
OAL

Dimensions Recommended
Machining Data

IC900 fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) (mm/t)
ECU028E04-3W06-57 2.80 6.00 4.00 57.00 3 38.0 5.0 W • 0.01-0.04
ECU038E05-3W06-57 3.80 6.00 5.00 57.00 3 38.0 5.0 W • 0.01-0.04
ECU048E06-3W06-57 4.80 6.00 6.00 57.00 3 38.0 5.0 W • 0.02-0.05
ECU057E07-3W06-57 5.70 6.00 7.00 57.00 3 38.0 5.0 W • 0.02-0.06
ECU067E08-3W08-63 6.70 8.00 8.00 63.00 3 38.0 5.0 W • 0.03-0.07
ECU077E09-3W08-63 7.70 8.00 9.00 63.00 3 38.0 5.0 W • 0.03-0.08
ECU097E11-3W10-72 9.70 10.00 11.00 72.00 3 38.0 5.0 W • 0.03-0.09
ECU117E12-3W12-73 11.70 12.00 12.00 73.00 3 38.0 5.0 W • 0.03-0.10
ECU137E16-3W14-83 13.70 14.00 14.00 83.00 3 38.0 5.0 W • 0.04-0.11
ECU157E16-3W16-92 15.70 16.00 16.00 92.00 3 38.0 5.0 W • 0.04-0.12
ECU177E18-3W18-92 17.70 18.00 18.00 92.00 3 38.0 5.0 W • 0.05-0.13
• Undersized short design for keyholes • For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) W-Weldon
138 ISCAR
