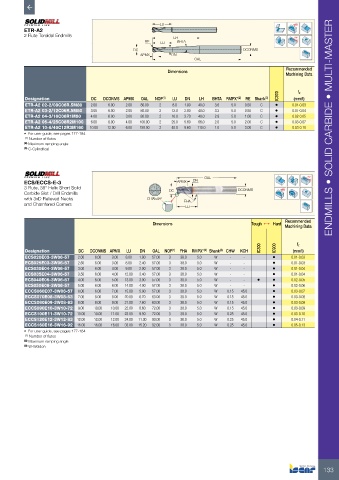

Page 135 - ISCAR(MILLINGCATALOG 38_2021)

LU
ETR-A2
2 Flute Toroidal Endmills LH Rd°
RE LU BHTA
DC DCONMS
APMX DN
OAL
Dimensions Recommended
Machining Data

IC900 fz
Designation DC DCONMS APMX OAL NOF (1) LU DN LH BHTA RMPX° (2) RE Shank (3) (mm/t)
ETR-A2 02-2/08C06R.5M80 2.00 6.00 2.00 80.00 2 8.0 1.90 40.0 3.6 5.0 0.50 C • 0.01-0.03
ETR-A2 03-2/12C06R.5M80 3.00 6.00 2.00 80.00 2 12.0 2.80 40.0 3.3 5.0 0.50 C • 0.01-0.04
ETR-A2 04-3/16C06R1M80 4.00 6.00 3.00 80.00 2 16.0 3.70 40.0 2.8 5.0 1.00 C • 0.02-0.05
ETR-A2 06-4/25C08R2M100 6.00 8.00 4.00 100.00 2 25.0 5.60 66.0 2.0 5.0 2.00 C • 0.03-0.07
ETR-A2 10-6/40C12R3M160 10.00 12.00 6.00 158.00 2 40.0 9.60 110.0 1.0 5.0 3.00 C • 0.03-0.10 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical

Rd°
ECS/ECCS-E-3 APMX DN OAL
3 Flute, 38° Helix Short Solid DC DCONMS
Carbide Slot / Drill Endmills
with 3xD Relieved Necks CHWx45º FHA
and Chamfered Corners
LU

Dimensions Tough 1 Hard Recommended
Machining Data

IC300 IC900 fz
Designation DC DCONMS APMX LU DN OAL NOF (1) FHA RMPX° (2) Shank (3) CHW KCH (mm/t)
ECS020E03-3W06-57 2.00 6.00 3.00 8.00 1.90 57.00 3 38.0 5.0 W - - • 0.01-0.03
ECS025E03-3W06-57 2.50 6.00 3.00 8.00 2.40 57.00 3 38.0 5.0 W - - • 0.01-0.03
ECS030E04-3W06-57 3.00 6.00 4.00 9.00 2.90 57.00 3 38.0 5.0 W - - • 0.01-0.04
ECS035E04-3W06-57 3.50 6.00 4.00 12.00 3.40 57.00 3 38.0 5.0 W - - • 0.01-0.04
ECS040E05-3W06-57 4.00 6.00 5.00 13.00 3.90 57.00 3 38.0 5.0 W - - • • 0.02-0.05
ECS050E06-3W06-57 5.00 6.00 6.00 14.00 4.90 57.00 3 38.0 5.0 W - - • 0.02-0.06
ECCS060E07-3W06-57 6.00 6.00 7.00 15.00 5.90 57.00 3 38.0 5.0 W 0.15 45.0 • 0.03-0.07
ECCS070E08-3W08-63 7.00 8.00 8.00 20.00 6.70 63.00 3 38.0 5.0 W 0.15 45.0 • 0.03-0.08
ECCS080E09-3W08-63 8.00 8.00 9.00 21.00 7.60 63.00 3 38.0 5.0 W 0.15 45.0 • 0.03-0.09
ECCS090E10-3W10-72 9.00 10.00 10.00 22.00 8.60 72.00 3 38.0 5.0 W 0.15 45.0 • 0.03-0.09
ECCS100E11-3W10-72 10.00 10.00 11.00 23.00 9.50 72.00 3 38.0 5.0 W 0.25 45.0 • 0.03-0.10
ECCS120E12-3W12-83 12.00 12.00 12.00 24.00 11.30 83.00 3 38.0 5.0 W 0.25 45.0 • 0.04-0.11
ECCS160E16-3W16-92 16.00 16.00 16.00 33.00 15.20 92.00 3 38.0 5.0 W 0.25 45.0 • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) W-Weldon

133
