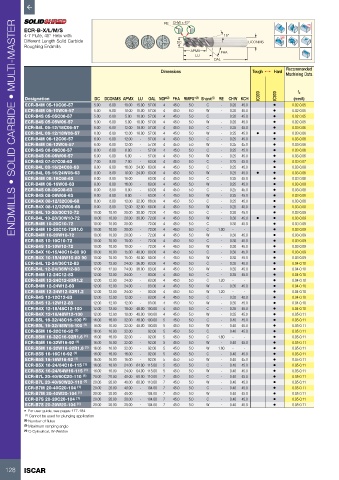

Page 130 - ISCAR(MILLINGCATALOG 38_2021)

RE CHW x 45° Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECR-B-X/L/M/S
4-7 Flute, 45° Helix with 15°
Different Length Solid Carbide DC DCONMS
Roughing Endmills
APMX FHA
LU
OAL
Dimensions Tough 1 Hard Recommended
Machining Data

IC300 IC900 fz
Designation DC DCONMS APMX LU OAL NOF (2) FHA RMPX° (3) Shank (4) RE CHW KCH (mm/t)
ECR-B4M 05-10C06-57 5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 C - 0.20 45.0 • 0.02-0.05
ECR-B4M 05-10W06-57 5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 W - 0.20 45.0 • 0.02-0.05
ECR-B4S 05-05C06-57 5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 C - 0.20 45.0 • 0.02-0.05
ECR-B4S 05-05W06-57 5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 W - 0.20 45.0 • 0.02-0.05
ECR-B4L 06-12/18C06-57 6.00 6.00 12.00 18.00 57.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.06
ECR-B4L 06-12/18W06-57 6.00 6.00 12.00 18.00 57.00 4 45.0 5.0 W - 0.25 45.0 • • 0.03-0.06
ECR-B4M 06-12C06-57 6.00 6.00 12.00 - 57.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.06
ECR-B4M 06-12W06-57 6.00 6.00 12.00 - 57.00 4 45.0 5.0 W - 0.25 45.0 • 0.03-0.06
ECR-B4S 06-06C06-57 6.00 6.00 6.00 - 57.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.06
ECR-B4S 06-06W06-57 6.00 6.00 6.00 - 57.00 4 45.0 5.0 W - 0.25 45.0 • 0.03-0.06
ECR-B4S 07-07C08-63 7.00 8.00 7.00 - 63.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.07
ECR-B4L 08-16/24C08-63 8.00 8.00 16.00 24.00 63.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.08
ECR-B4L 08-16/24W08-63 8.00 8.00 16.00 24.00 63.00 4 45.0 5.0 W - 0.25 45.0 • • 0.03-0.08
ECR-B4M 08-16C08-63 8.00 8.00 16.00 - 63.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.08
ECR-B4M 08-16W08-63 8.00 8.00 16.00 - 63.00 4 45.0 5.0 W - 0.25 45.0 • 0.03-0.08
ECR-B4S 08-08C08-63 8.00 8.00 8.00 - 63.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.08
ECR-B4S 08-08W08-63 8.00 8.00 8.00 - 63.00 4 45.0 5.0 W - 0.25 45.0 • 0.03-0.08
ECR-B4X 08-12/32C08-68 8.00 8.00 12.00 32.00 68.00 4 45.0 5.0 C - 0.25 45.0 • 0.03-0.08
ECR-B4X 08-12/32W08-68 8.00 8.00 12.00 32.00 68.00 4 45.0 5.0 W - 0.25 45.0 • 0.03-0.08
ECR-B4L 10-20/30C10-72 10.00 10.00 20.00 30.00 72.00 4 45.0 5.0 C - 0.30 45.0 • 0.03-0.09
ECR-B4L 10-20/30W10-72 10.00 10.00 20.00 30.00 72.00 4 45.0 5.0 W - 0.30 45.0 • • 0.03-0.09
ECR-B4M 10-20C10-72 10.00 10.00 20.00 - 72.00 4 45.0 5.0 C - 0.30 45.0 • 0.03-0.09
ECR-B4M 10-20C10-72R1.0 10.00 10.00 20.00 - 72.00 4 45.0 5.0 C 1.00 - - • 0.03-0.09
ECR-B4M 10-20W10-72 10.00 10.00 20.00 - 72.00 4 45.0 5.0 W - 0.30 45.0 • 0.03-0.09
ECR-B4S 10-10C10-72 10.00 10.00 10.00 - 72.00 4 45.0 5.0 C - 0.30 45.0 • 0.03-0.09
ECR-B4S 10-10W10-72 10.00 10.00 10.00 - 72.00 4 45.0 5.0 W - 0.30 45.0 • 0.03-0.09
ECR-B4X 10-15/40C10-80 90 10.00 10.00 15.00 40.00 80.00 4 45.0 5.0 C - 0.30 45.0 • 0.03-0.09
ECR-B4X 10-15/40W10-80 90 10.00 10.00 15.00 40.00 80.00 4 45.0 5.0 W - 0.30 45.0 • 0.03-0.09
ECR-B4L 12-24/36C12-83 12.00 12.00 24.00 36.00 83.00 4 45.0 5.0 C - 0.35 45.0 • 0.04-0.10
ECR-B4L 12-24/36W12-83 12.00 12.00 24.00 36.00 83.00 4 45.0 5.0 W - 0.35 45.0 • 0.04-0.10
ECR-B4M 12-24C12-83 12.00 12.00 24.00 - 83.00 4 45.0 5.0 C - 0.35 45.0 • 0.04-0.10
ECR-B4M 12-24C12-83R1.2 12.00 12.00 24.00 - 83.00 4 45.0 5.0 C 1.20 - - • 0.04-0.10
ECR-B4M 12-24W12-83 12.00 12.00 24.00 - 83.00 4 45.0 5.0 W - 0.35 45.0 • 0.04-0.10
ECR-B4M 12-24W12-83R1.2 12.00 12.00 24.00 - 83.00 4 45.0 5.0 W 1.20 - - • 0.04-0.10
ECR-B4S 12-12C12-83 12.00 12.00 12.00 - 83.00 4 45.0 5.0 C - 0.35 45.0 • 0.04-0.10
ECR-B4S 12-12W12-83 12.00 12.00 12.00 - 83.00 4 45.0 5.0 W - 0.35 45.0 • 0.04-0.10
ECR-B4X 12-18/48C12-100 12.00 12.00 18.00 48.00 100.00 4 45.0 5.0 C - 0.35 45.0 • 0.04-0.10
ECR-B4X 12-18/48W12-100 12.00 12.00 18.00 48.00 100.00 4 45.0 5.0 W - 0.35 45.0 • 0.05-0.11
ECR-B5L 16-32/48C16-100 (1) 16.00 16.00 32.00 48.00 100.00 5 45.0 5.0 C - 0.40 45.0 • 0.05-0.11
ECR-B5L 16-32/48W16-100 (1) 16.00 16.00 32.00 48.00 100.00 5 45.0 5.0 W - 0.40 45.0 • 0.05-0.11
ECR-B5M 16-32C16-92 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 C - 0.40 45.0 • 0.05-0.11
ECR-B5M 16-32C16-92R1.6 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 C 1.60 - - • 0.05-0.11
ECR-B5M 16-32W16-92 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 W - 0.40 45.0 • 0.05-0.11
ECR-B5M 16-32W16-92R1.6 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 W 1.60 - - • 0.05-0.11
ECR-B5S 16-16C16-92 (1) 16.00 16.00 16.00 - 92.00 5 45.0 5.0 C - 0.40 45.0 • 0.05-0.11
ECR-B5S 16-16W16-92 (1) 16.00 16.00 16.00 - 92.00 5 45.0 5.0 W - 0.40 45.0 • 0.05-0.11
ECR-B5X 16-24/64C16-115 (1) 16.00 16.00 24.00 64.00 115.00 5 45.0 5.0 C - 0.40 45.0 • 0.05-0.11
ECR-B5X 16-24/64W16-115 (1) 16.00 16.00 24.00 64.00 115.00 5 45.0 5.0 W - 0.40 45.0 • 0.05-0.11
ECR-B7L 20-40/60C20-110 (1) 20.00 20.00 40.00 60.00 110.00 7 45.0 5.0 C - 0.40 45.0 • 0.05-0.11
ECR-B7L 20-40/60W20-110 (1) 20.00 20.00 40.00 60.00 110.00 7 45.0 5.0 W - 0.40 45.0 • 0.05-0.11
ECR-B7M 20-40C20-104 (1) 20.00 20.00 40.00 - 104.00 7 45.0 5.0 C - 0.40 45.0 • 0.05-0.11
ECR-B7M 20-40W20-104 (1) 20.00 20.00 40.00 - 104.00 7 45.0 5.0 W - 0.40 45.0 • 0.05-0.11
ECR-B7S 20-20C20-104 (1) 20.00 20.00 20.00 - 104.00 7 45.0 5.0 C - 0.40 45.0 • 0.05-0.11
ECR-B7S 20-20W20-104 (1) 20.00 20.00 20.00 - 104.00 7 45.0 5.0 W - 0.40 45.0 • 0.05-0.11
• For user guide, see pages 177-184
(1) Cannot be used for plunging application
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical, W-Weldon
