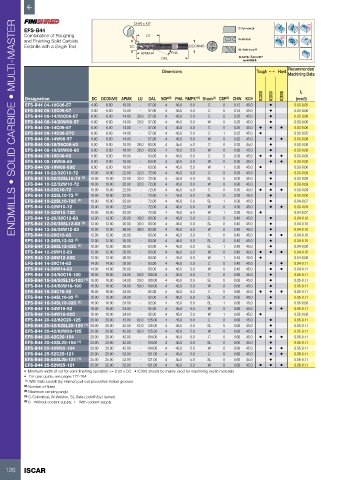

CHW x 45° Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EFS-B44 C-Cylindrical
Combination of Roughing LU
and Finishing Solid Carbide W-Weldon
Endmills with a Single Tool DC DCONMS
SL-Safe-Lock®
APMX FHA
OAL
Dimensions Tough 1 Hard Recommended
Machining Data

IC300 IC900 IC608 fz
Designation DC DCONMS APMX LU OAL NOF (2) FHA RMPX° (3) Shank (4) CSP (5) CHW KCH (mm/t)
EFS-B44 04-10C06-57 4.00 6.00 10.00 - 57.00 4 45.0 5.0 C 0 0.12 45.0 • 0.03-0.05
EFS-B44 05-12C06-57 5.00 6.00 12.00 - 57.00 4 45.0 5.0 C 0 0.18 45.0 • 0.03-0.06
EFS-B44 06-14/20C06-57 6.00 6.00 14.00 20.0 57.00 4 45.0 5.0 C 0 0.25 45.0 • 0.03-0.06
EFS-B44 06-14/20W06-57 6.00 6.00 14.00 20.0 57.00 4 45.0 5.0 W 0 0.25 45.0 • 0.03-0.06
EFS-B44 06-14C06-57 6.00 6.00 14.00 - 57.00 4 45.0 5.0 C 0 0.25 45.0 • • • 0.03-0.06
EFS-B44 06-14C06-57C 6.00 6.00 14.00 - 57.00 4 45.0 5.0 C 1 0.25 45.0 • 0.03-0.05
EFS-B44 06-14W06-57 6.00 6.00 14.00 - 57.00 4 45.0 5.0 W 0 0.25 45.0 • • 0.03-0.06
EFS-B44 08-18/26C08-63 8.00 8.00 18.00 26.0 63.00 4 45.0 5.0 C 0 0.30 45.0 • 0.03-0.08
EFS-B44 08-18/26W08-63 8.00 8.00 18.00 26.0 63.00 4 45.0 5.0 W 0 0.30 45.0 • 0.03-0.08
EFS-B44 08-18C08-63 8.00 8.00 18.00 - 63.00 4 45.0 5.0 C 0 0.30 45.0 • • • 0.03-0.08
EFS-B44 08-18W08-63 8.00 8.00 18.00 - 63.00 4 45.0 5.0 W 0 0.30 45.0 • • 0.03-0.08
EFS-B44 08-18W08-63C 8.00 8.00 18.00 - 63.00 4 45.0 5.0 W 1 0.30 45.0 • 0.03-0.06
EFS-B44 10-22/32C10-72 10.00 10.00 22.00 32.0 72.00 4 45.0 5.0 C 0 0.30 45.0 • 0.03-0.09
EFS-B44 10-22/32SL10-72 (1) 10.00 10.00 22.00 32.0 72.00 4 45.0 5.0 SL 0 0.00 45.0 • 0.03-0.09
EFS-B44 10-22/32W10-72 10.00 10.00 22.00 32.0 72.00 4 45.0 5.0 W 0 0.30 45.0 • 0.03-0.09
EFS-B44 10-22C10-72 10.00 10.00 22.00 - 72.00 4 45.0 5.0 C 0 0.30 45.0 • • • 0.03-0.09
EFS-B44 10-22SL10-72 (1) 10.00 10.00 22.00 - 72.00 4 45.0 5.0 SL 0 0.30 45.0 • 0.03-0.09
EFS-B44 10-22SL10-72C (1) 10.00 10.00 22.00 - 72.00 4 45.0 5.0 SL 1 0.30 45.0 • 0.04-0.07
EFS-B44 10-22W10-72 10.00 10.00 22.00 - 72.00 4 45.0 5.0 W 0 0.30 45.0 • • 0.03-0.09
EFS-B44 10-22W10-72C 10.00 10.00 22.00 - 72.00 4 45.0 5.0 W 1 0.30 45.0 • 0.04-0.07
EFS-B44 12-26/38C12-83 12.00 12.00 26.00 38.0 83.00 4 45.0 5.0 C 0 0.40 45.0 • 0.04-0.10
EFS-B44 12-26/38SL12-83 (1) 12.00 12.00 26.00 38.0 83.00 4 45.0 5.0 SL 0 0.40 45.0 • 0.04-0.10
EFS-B44 12-26/38W12-83 12.00 12.00 26.00 38.0 83.00 4 45.0 5.0 W 0 0.40 45.0 • 0.04-0.10
EFS-B44 12-26C12-83 12.00 12.00 26.00 - 83.00 4 45.0 5.0 C 0 0.40 45.0 • • 0.04-0.10
EFS-B44 12-26SL12-83 (1) 12.00 12.00 26.00 - 83.00 4 45.0 5.0 SL 0 0.40 45.0 • 0.04-0.10
EFS-B44 12-26SL12-83C (1) 12.00 12.00 26.00 - 83.00 4 45.0 5.0 SL 1 0.40 45.0 • 0.04-0.08
EFS-B44 12-26W12-83 12.00 12.00 26.00 - 83.00 4 45.0 5.0 W 0 0.40 45.0 • • • 0.04-0.10
EFS-B44 12-26W12-83C 12.00 12.00 26.00 - 83.00 4 45.0 5.0 W 1 0.40 45.0 • 0.04-0.08
EFS-B44 14-30C14-83 14.00 14.00 30.00 - 83.00 4 45.0 5.0 C 0 0.40 45.0 • • 0.04-0.11
EFS-B44 14-30W14-83 14.00 14.00 30.00 - 83.00 4 45.0 5.0 W 0 0.40 45.0 • • 0.04-0.11
EFS-B44 16-34/50C16-100 16.00 16.00 34.00 50.0 100.00 4 45.0 5.0 C 0 0.60 45.0 • 0.05-0.11
EFS-B44 16-34/50SL16-100 (1) 16.00 16.00 34.00 50.0 100.00 4 45.0 5.0 SL 0 0.60 45.0 • 0.05-0.11
EFS-B44 16-34/50W16-100 16.00 16.00 34.00 50.0 100.00 4 45.0 5.0 W 0 0.60 45.0 • 0.05-0.11
EFS-B44 16-34C16-92 16.00 16.00 34.00 - 92.00 4 45.0 5.0 C 0 0.60 45.0 • • • 0.05-0.11
EFS-B44 16-34SL16-92 (1) 16.00 16.00 34.00 - 92.00 4 45.0 5.0 SL 0 0.60 45.0 • 0.05-0.11
EFS-B44 16-34SL16-92C (1) 16.00 16.00 34.00 - 92.00 4 45.0 5.0 SL 1 0.60 45.0 • 0.05-0.08
EFS-B44 16-34W16-92 16.00 16.00 34.00 - 92.00 4 45.0 5.0 W 0 0.60 45.0 • • 0.05-0.11
EFS-B44 16-34W16-92C 16.00 16.00 34.00 - 92.00 4 45.0 5.0 W 1 0.60 45.0 • 0.05-0.08
EFS-B44 20-42/62C20-125 20.00 20.00 42.00 62.0 125.00 4 45.0 5.0 C 0 0.60 45.0 • 0.05-0.11
EFS-B44 20-42/62SL20-125 (1) 20.00 20.00 42.00 62.0 125.00 4 45.0 5.0 SL 0 0.60 45.0 • 0.05-0.11
EFS-B44 20-42/62W20-125 20.00 20.00 42.00 62.0 125.00 4 45.0 5.0 W 0 0.60 45.0 • 0.05-0.11
EFS-B44 20-42C20-104 20.00 20.00 42.00 - 104.00 4 45.0 5.0 C 0 0.60 45.0 • • • 0.05-0.11
EFS-B44 20-42SL20-104 (1) 20.00 20.00 42.00 - 104.00 4 45.0 5.0 SL 0 0.60 45.0 • 0.05-0.11
EFS-B44 20-42W20-104 20.00 20.00 42.00 - 104.00 4 45.0 5.0 W 0 0.60 45.0 • • 0.05-0.11
EFS-B44 25-52C25-121 25.00 25.00 52.00 - 121.00 4 45.0 5.0 C 0 0.60 45.0 • • 0.06-0.11
EFS-B44 25-52SL25-121 (1) 25.00 25.00 52.00 - 121.00 4 45.0 5.0 SL 0 0.60 45.0 • 0.06-0.11
EFS-B44 25-52W25-121 25.00 25.00 52.00 - 121.00 4 45.0 5.0 W 0 0.60 45.0 • • • 0.06-0.11
• Minimum width of cut for semi-finishing operation >= 0.05 x DC • IC300 should be mainly used for machining exotic materials
• For user guide, see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) Number of flutes
(3) Maximum ramping angle
(4) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
(5) 0 - Without coolant supply, 1 - With coolant supply
