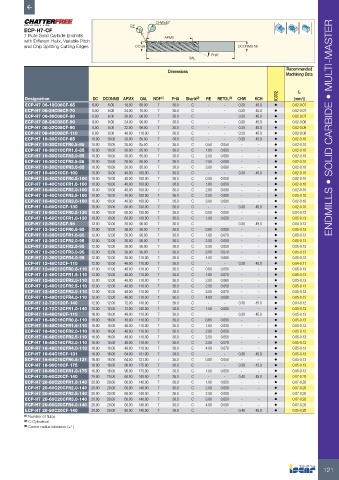

Page 123 - ISCAR(MILLINGCATALOG 38_2021)

CHWx45˚
ECP-H7-CF RE
7 Flute Solid Carbide Endmills APMX
with Different Helix, Variable Pitch
and Chip Splitting Cutting Edges DC e9 DCONMS h6
FHA˚
OAL
Dimensions Recommended
Machining Data

IC902 fz
Designation DC DCONMS APMX OAL NOF (1) FHA Shank (2) RE RETOL (3) CHW KCH (mm/t)
ECP-H7 06-18C06CF-65 6.00 6.00 18.00 65.00 7 36.0 C - - 0.20 45.0 • 0.02-0.07
ECP-H7 06-24C06CF-70 6.00 6.00 24.00 70.00 7 36.0 C - - 0.20 45.0 • 0.02-0.07
ECP-H7 06-36C06CF-90 6.00 6.00 36.00 90.00 7 36.0 C - - 0.20 45.0 • 0.02-0.07
ECP-H7 08-24C08CF-90 8.00 8.00 24.00 90.00 7 36.0 C - - 0.20 45.0 • 0.02-0.08
ECP-H7 08-32C08CF-90 8.00 8.00 32.00 90.00 7 36.0 C - - 0.20 45.0 • 0.02-0.09 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECP-H7 08-48C08CF-110 8.00 8.00 48.00 110.00 7 36.0 C - - 0.20 45.0 • 0.02-0.08
ECP-H7 10-30C10CF-85 10.00 10.00 30.00 85.00 7 36.0 C - - 0.30 45.0 • 0.02-0.10
ECP-H7 10-30C10CFR0.5-85 10.00 10.00 30.00 85.00 7 36.0 C 0.50 0.050 - - • 0.02-0.10
ECP-H7 10-30C10CFR1.6-85 10.00 10.00 30.00 85.00 7 36.0 C 1.60 0.050 - - • 0.02-0.10
ECP-H7 10-30C10CFR2.0-85 10.00 10.00 30.00 85.00 7 36.0 C 2.00 0.080 - - • 0.02-0.10
ECP-H7 10-30C10CFR2.5-85 10.00 10.00 30.00 85.00 7 36.0 C 2.50 0.080 - - • 0.02-0.10
ECP-H7 10-30C10CFR3.0-85 10.00 10.00 30.00 85.00 7 36.0 C 3.00 0.080 - - • 0.02-0.10
ECP-H7 10-40C10CF-100 10.00 10.00 40.00 100.00 7 36.0 C - - 0.30 45.0 • 0.02-0.10
ECP-H7 10-40C10CFR0.5-100 10.00 10.00 40.00 100.00 7 36.0 C 0.50 0.050 - - • 0.02-0.10
ECP-H7 10-40C10CFR1.6-100 10.00 10.00 40.00 100.00 7 36.0 C 1.60 0.050 - - • 0.02-0.10
ECP-H7 10-40C10CFR2.0-100 10.00 10.00 40.00 100.00 7 36.0 C 2.00 0.080 - - • 0.02-0.10
ECP-H7 10-40C10CFR2.5-100 10.00 10.00 40.00 100.00 7 36.0 C 2.50 0.080 - - • 0.02-0.10
ECP-H7 10-40C10CFR3.0-100 10.00 10.00 40.00 100.00 7 36.0 C 3.00 0.080 - - • 0.02-0.10
ECP-H7 10-60C10CF-130 10.00 10.00 60.00 130.00 7 36.0 C - - 0.30 45.0 • 0.02-0.10
ECP-H7 10-60C10CFR0.5-130 10.00 10.00 60.00 130.00 7 36.0 C 0.50 0.050 - - • 0.04-0.12
ECP-H7 10-60C10CFR1.0-130 10.00 10.00 60.00 130.00 7 36.0 C 1.00 0.050 - - • 0.05-0.13
ECP-H7 12-36C12CF-95 12.00 12.00 36.00 95.00 7 36.0 C - - 0.30 45.0 • 0.04-0.12
ECP-H7 12-36C12CFR0.6-95 12.00 12.00 36.00 95.00 7 36.0 C 0.60 0.050 - - • 0.05-0.13
ECP-H7 12-36C12CFR1.6-95 12.00 12.00 36.00 95.00 7 36.0 C 1.60 0.070 - - • 0.05-0.13
ECP-H7 12-36C12CFR2.0-95 12.00 12.00 36.00 95.00 7 36.0 C 2.00 0.050 - - • 0.05-0.13
ECP-H7 12-36C12CFR2.5-95 12.00 12.00 36.00 95.00 7 36.0 C 2.50 0.050 - - • 0.05-0.13
ECP-H7 12-36C12CFR3.0-95 12.00 12.00 36.00 95.00 7 36.0 C 3.00 0.070 - - • 0.05-0.13
ECP-H7 12-36C12CFR4.0-95 12.00 12.00 36.00 110.00 7 36.0 C 4.00 0.080 - - • 0.05-0.13
ECP-H7 12-48C12CF-110 12.00 12.00 48.00 110.00 7 36.0 C - - 0.30 45.0 • 0.04-0.11
ECP-H7 12-48C12CFR0.6-110 12.00 12.00 48.00 110.00 7 36.0 C 0.60 0.050 - - • 0.05-0.13
ECP-H7 12-48C12CFR1.6-110 12.00 12.00 48.00 110.00 7 36.0 C 1.60 0.070 - - • 0.05-0.13
ECP-H7 12-48C12CFR2.0-110 12.00 12.00 48.00 110.00 7 36.0 C 2.00 0.060 - - • 0.05-0.13
ECP-H7 12-48C12CFR2.5-110 12.00 12.00 48.00 110.00 7 36.0 C 2.50 0.050 - - • 0.05-0.13
ECP-H7 12-48C12CFR3.0-110 12.00 12.00 48.00 110.00 7 36.0 C 3.00 0.070 - - • 0.05-0.13
ECP-H7 12-48C12CFR4.0-110 12.00 12.00 48.00 110.00 7 36.0 C 4.00 0.080 - - • 0.05-0.13
ECP-H7 12-72C12CF-140 12.00 12.00 72.00 140.00 7 36.0 C - - 0.30 45.0 • 0.04-0.12
ECP-H7 12-72C12CFR1.0-140 12.00 12.00 72.00 140.00 7 36.0 C 1.00 0.050 - - • 0.05-0.13
ECP-H7 16-48C16CF-110 16.00 16.00 48.00 110.00 7 36.0 C - - 0.30 45.0 • 0.05-0.13
ECP-H7 16-48C16CFR0.8-110 16.00 16.00 48.00 110.00 7 36.0 C 0.80 0.050 - - • 0.05-0.13
ECP-H7 16-48C16CFR1.6-110 16.00 16.00 48.00 110.00 7 36.0 C 1.60 0.050 - - • 0.05-0.13
ECP-H7 16-48C16CFR2.0-110 16.00 16.00 48.00 110.00 7 36.0 C 2.00 0.050 - - • 0.05-0.13
ECP-H7 16-48C16CFR2.5-110 16.00 16.00 48.00 110.00 7 36.0 C 2.50 0.050 - - • 0.05-0.13
ECP-H7 16-48C16CFR3.0-110 16.00 16.00 48.00 110.00 7 36.0 C 3.00 0.070 - - • 0.05-0.13
ECP-H7 16-48C16CFR4.0-110 16.00 16.00 48.00 110.00 7 36.0 C 4.00 0.070 - - • 0.05-0.13
ECP-H7 16-64C16CF-131 16.00 16.00 64.00 131.00 7 36.0 C - - 0.30 45.0 • 0.05-0.13
ECP-H7 16-64C16CFR0.8-131 16.00 16.00 64.00 131.00 7 36.0 C 0.80 0.050 - - • 0.05-0.13
ECP-H7 16-96C16CF-175 16.00 16.00 96.00 175.00 7 36.0 C - - 0.30 45.0 • 0.05-0.13
ECP-H7 16-96C16CFR1.0-175 16.00 16.00 96.00 175.00 7 36.0 C 1.00 0.050 - - • 0.05-0.13
ECP-H7 20-60C20CF-140 20.00 20.00 60.00 140.00 7 36.0 C - - 0.40 45.0 • 0.07-0.20
ECP-H7 20-60C20CFR1.0-140 20.00 20.00 60.00 140.00 7 36.0 C 1.00 0.050 - - • 0.07-0.20
ECP-H7 20-60C20CFR2.0-140 20.00 20.00 60.00 140.00 7 36.0 C 2.00 0.050 - - • 0.07-0.20
ECP-H7 20-60C20CFR2.5-140 20.00 20.00 60.00 140.00 7 36.0 C 2.50 0.050 - - • 0.07-0.20
ECP-H7 20-60C20CFR3.0-140 20.00 20.00 60.00 140.00 7 36.0 C 3.00 0.050 - - • 0.07-0.20
ECP-H7 20-60C20CFR4.0-140 20.00 20.00 60.00 140.00 7 36.0 C 4.00 0.080 - - • 0.07-0.20
ECP-H7 20-80C20CF-140 20.00 20.00 80.00 140.00 7 36.0 C - - 0.40 45.0 • 0.05-0.20
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
