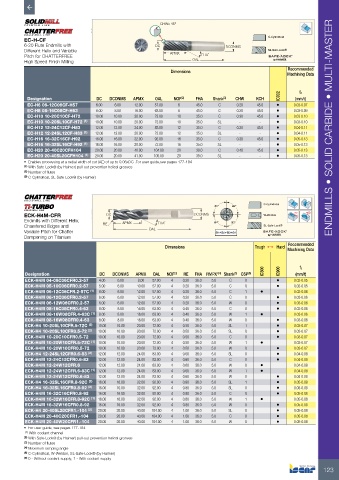

Page 125 - ISCAR(MILLINGCATALOG 38_2021)
P. 125
CHWx 45°
C-Cylindrical
EC-H-CF
6-20 Flute Endmills with DC DCONMS
Different Helix and Variable APMX SL-Safe-Lock®
Pitch for CHATTERFREE FHA˚
High Speed Finish Milling OAL
Dimensions Recommended
Machining Data
IC902 fz
Designation DC DCONMS APMX OAL NOF (2) FHA Shank (3) CHW KCH (mm/t)
EC-H6 06-12C06CF-H57 6.00 6.00 12.00 57.00 6 45.0 C 0.20 45.0 • 0.03-0.07
EC-H8 08-16C08CF-H63 8.00 8.00 16.00 63.00 8 45.0 C 0.20 45.0 • 0.03-0.09
EC-H10 10-20C10CF-H72 10.00 10.00 20.00 72.00 10 35.0 C 0.30 45.0 • 0.03-0.10
EC-H10 10-20SL10CF-H72 (1) 10.00 10.00 20.00 72.00 10 35.0 SL - - • 0.03-0.10
EC-H12 12-24C12CF-H83 12.00 12.00 24.00 83.00 12 35.0 C 0.30 45.0 • 0.04-0.11 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EC-H12 12-24SL12CF-H83 (1) 12.00 12.00 20.00 72.00 12 35.0 SL - - • 0.04-0.11
EC-H16 16-32C16CF-H92 16.00 16.00 32.00 92.00 16 35.0 C 0.30 45.0 • 0.05-0.13
EC-H16 16-32SL16CF-H92 (1) 16.00 16.00 20.00 72.00 16 35.0 SL - - • 0.05-0.13
EC-H20 20-40C20CFH104 20.00 20.00 40.00 104.00 20 30.0 C 0.40 45.0 • 0.05-0.13
EC-H20 20-40SL20CFH104 (1) 20.00 20.00 41.00 105.00 20 35.0 SL - - • 0.05-0.13
• Enables processing at a radial width of cut (AE) of up to 0.06xDC .For user guide,see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) Number of flutes
(3) C-Cylindrical, SL-Safe-Lock® (by Haimer)
a1° a2° C-Cylindrical
ECK-H4M-CFR DC DCONMS W-Weldon Rd°
Endmills with Different Helix, APMX FHA˚ a4° a3°
Chamfered Edges and RE SL-Safe-Lock®
Variable Pitch for Chatter OAL a1≠a2≠a3≠a4
Dampening on Titanium
Recommended
Dimensions Tough 1 Hard
Machining Data
IC300 IC900 fz
Designation DC DCONMS APMX OAL NOF (3) RE FHA RMPX° (4) Shank (5) CSP (6) (mm/t)
ECK-H4M 04-08C06CFR0.2-57 4.00 6.00 8.00 57.00 4 0.20 36.0 5.0 C 0 • 0.02-0.05
ECK-H4M 05-10C06CFR0.2-57 5.00 6.00 10.00 57.00 4 0.20 36.0 5.0 C 0 • 0.02-0.05
ECK-H4M 06-12C06CFR.2-57C (1) 6.00 6.00 12.00 57.00 4 0.20 36.0 5.0 C 1 • 0.03-0.06
ECK-H4M 06-12C06CFR0.2-57 6.00 6.00 12.00 57.00 4 0.20 36.0 5.0 C 0 • 0.03-0.06
ECK-H4M 06-12W06CFR0.2-57 6.00 6.00 12.00 57.00 4 0.20 36.0 5.0 W 0 • 0.03-0.06
ECK-H4M 08-16C08CFR0.4-63 8.00 8.00 16.00 63.00 4 0.40 36.0 5.0 C 0 • 0.03-0.06
ECK-H4M 08-16W08CFR.4-63C (1) 8.00 8.00 16.00 63.00 4 0.40 36.0 5.0 W 1 • 0.03-0.06
ECK-H4M 08-16W08CFR0.4-63 8.00 8.00 16.00 63.00 4 0.40 36.0 5.0 W 0 • 0.03-0.06
ECK-H4 10-20SL10CFR.5-72C (2) 10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 SL 1 • 0.03-0.07
ECK-H4 10-20SL10CFR0.5-72 (2) 10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 SL 0 • 0.03-0.07
ECK-H4M 10-20C10CFR0.5-72 10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 C 0 • 0.03-0.07
ECK-H4M 10-20W10CFR.5-72C (1) 10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 W 1 • 0.03-0.07
ECK-H4M 10-20W10CFR0.5-72 10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 W 0 • 0.03-0.07
ECK-H4 12-24SL12CFR0.6-83 (2) 12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 SL 0 • 0.04-0.08
ECK-H4M 12-24C12CFR0.6-83 12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 C 0 • 0.04-0.08
ECK-H4M 12-24W12CFR.6 12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 W 0 • 0.04-0.08
ECK-H4M 12-24W12CFR.6-83C (1) 12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 W 1 • 0.04-0.08
ECK-H4M 12-24W12CFR0.6-83 12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 W 0 • 0.04-0.08
ECK-H4 16-32SL16CFR.8-92C (2) 16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 SL 1 • 0.05-0.08
ECK-H4 16-32SL16CFR0.8-92 (2) 16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 SL 0 • 0.05-0.08
ECK-H4M 16-32C16CFR0.8-92 16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 C 0 • 0.05-0.08
ECK-H4M 16-32W16CFR.8-92C (1) 16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 W 1 • 0.05-0.08
ECK-H4M 16-32W16CFR0.8-92 16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 W 0 • 0.05-0.08
ECK-H4 20-40SL20CFR1.-104 (2) 20.00 20.00 40.00 104.00 4 1.00 36.0 5.0 SL 0 • 0.05-0.08
ECK-H4M 20-40C20CFR1.-104 20.00 20.00 40.00 104.00 4 1.00 36.0 5.0 C 0 • 0.05-0.08
ECK-H4M 20-40W20CFR1.-104 20.00 20.00 40.00 104.00 4 1.00 36.0 5.0 W 0 • 0.05-0.08
• For user guide, see pages 177-184
(1) With coolant channel
(2) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(3) Number of flutes
(4) Maximum ramping angle
(5) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
(6) 0 - Without coolant supply, 1 - With coolant supply
