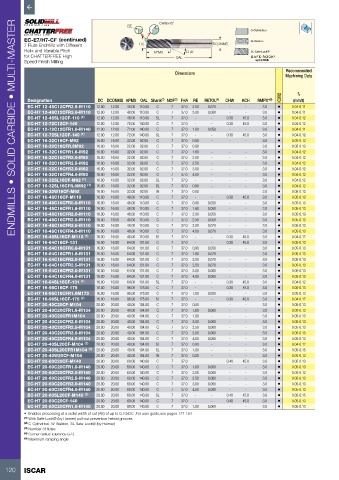

Page 122 - ISCAR(MILLINGCATALOG 38_2021)

CHWx45˚
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
RE C-Cylindrical
EC-E7/H7-CF (continued) W-Weldon
7 Flute Endmills with Different DC DCONMS
Helix and Variable Pitch APMX FHA˚ SL-Safe-Lock®
for CHATTERFREE High OAL
Speed Finish Milling

Dimensions Recommended
Machining Data

IC902 fz
Designation DC DCONMS APMX OAL Shank (2) NOF (3) FHA RE RETOL (4) CHW KCH RMPX° (5) (mm/t)
EC-H7 12-48C12CFR2.5-M110 12.00 12.00 48.00 110.00 C 7 37.0 2.50 0.070 - - 3.0 • 0.04-0.11
EC-H7 12-48C12CFR3.0-M110 12.00 12.00 48.00 110.00 C 7 37.0 3.00 0.080 - - 3.0 • 0.04-0.11
EC-H7 12-48SL12CF-110 (1) 12.00 12.00 48.00 110.00 SL 7 37.0 - - 0.30 45.0 3.0 • 0.04-0.12
EC-H7 12-72C12CF-140 12.00 12.00 72.00 140.00 C 7 37.0 - - 0.30 45.0 3.0 • 0.04-0.12
EC-H7 12-72C12CFR1.0-M140 12.00 12.00 72.00 140.00 C 7 37.0 1.00 0.050 - - 3.0 • 0.04-0.11
EC-H7 12-72SL12CF-140 (1) 12.00 12.00 72.00 140.00 SL 7 37.0 - - 0.30 45.0 3.0 • 0.04-0.12
EC-H7 16-32C16CF-M92 16.00 16.00 32.00 92.00 C 7 37.0 0.00 - - - 3.0 • 0.05-0.13
EC-H7 16-32C16CFR.8M92 16.00 16.00 32.00 92.00 C 7 37.0 0.80 - - - 3.0 • 0.05-0.13
EC-H7 16-32C16CFR1.6-M92 16.00 16.00 32.00 92.00 C 7 37.0 1.60 - - - 3.0 • 0.04-0.12
EC-H7 16-32C16CFR2.0-M92 16.00 16.00 32.00 92.00 C 7 37.0 2.00 - - - 3.0 • 0.04-0.12
EC-H7 16-32C16CFR2.5-M92 16.00 16.00 32.00 92.00 C 7 37.0 2.50 - - - 3.0 • 0.04-0.12
EC-H7 16-32C16CFR3.0-M92 16.00 16.00 32.00 92.00 C 7 37.0 3.00 - - - 3.0 • 0.04-0.12
EC-H7 16-32C16CFR4.0-M92 16.00 16.00 32.00 92.00 C 7 37.0 4.00 - - - 3.0 • 0.04-0.12
EC-H7 16-32SL16CF-M92 (1) 16.00 16.00 32.00 92.00 SL 7 37.0 - - - - 3.0 • 0.04-0.12
EC-H7 16-32SL16CFR.8M92 (1) 16.00 16.00 32.00 92.00 SL 7 37.0 0.80 - - - 3.0 • 0.04-0.12
EC-H7 16-32W16CF-M92 16.00 16.00 32.00 92.00 W 7 37.0 0.00 - - - 3.0 • 0.05-0.13
EC-H7 16-48C16CF-M110 16.00 16.00 48.00 110.00 C 7 37.0 - - 0.30 45.0 3.0 • 0.05-0.13
EC-H7 16-48C16CFR0.8-M110 16.00 16.00 48.00 110.00 C 7 37.0 0.80 0.050 - - 3.0 • 0.05-0.13
EC-H7 16-48C16CFR1.6-M110 16.00 16.00 48.00 110.00 C 7 37.0 1.60 0.050 - - 3.0 • 0.05-0.13
EC-H7 16-48C16CFR2.0-M110 16.00 16.00 48.00 110.00 C 7 37.0 2.00 0.050 - - 3.0 • 0.05-0.13
EC-H7 16-48C16CFR2.5-M110 16.00 16.00 48.00 110.00 C 7 37.0 2.50 0.050 - - 3.0 • 0.05-0.13
EC-H7 16-48C16CFR3.0-M110 16.00 16.00 48.00 110.00 C 7 37.0 3.00 0.070 - - 3.0 • 0.05-0.13
EC-H7 16-48C16CFR4.0-M110 16.00 16.00 48.00 110.00 C 7 37.0 4.00 0.070 - - 3.0 • 0.05-0.13
EC-H7 16-48SL16CF-M110 (1) 16.00 16.00 48.00 110.00 SL 7 37.0 - - 0.30 45.0 3.0 • 0.04-0.12
EC-H7 16-64C16CF-131 16.00 16.00 64.00 131.00 C 7 37.0 - - 0.30 45.0 3.0 • 0.05-0.13
EC-H7 16-64C16CFR0.8-M131 16.00 16.00 64.00 131.00 C 7 37.0 0.80 0.050 - - 3.0 • 0.05-0.13
EC-H7 16-64C16CFR1.6-M131 16.00 16.00 64.00 131.00 C 7 37.0 1.60 0.070 - - 3.0 • 0.05-0.13
EC-H7 16-64C16CFR2.0-M131 16.00 16.00 64.00 131.00 C 7 37.0 2.00 0.070 - - 3.0 • 0.05-0.13
EC-H7 16-64C16CFR2.5-M131 16.00 16.00 64.00 131.00 C 7 37.0 2.50 0.070 - - 3.0 • 0.05-0.13
EC-H7 16-64C16CFR3.0-M131 16.00 16.00 64.00 131.00 C 7 37.0 3.00 0.080 - - 3.0 • 0.05-0.13
EC-H7 16-64C16CFR4.0-M131 16.00 16.00 64.00 131.00 C 7 37.0 4.00 0.080 - - 3.0 • 0.05-0.13
EC-H7 16-64SL16CF-131 (1) 16.00 16.00 64.00 131.00 SL 7 37.0 - - 0.30 45.0 3.0 • 0.04-0.12
EC-H7 16-96C16CF-175 16.00 16.00 96.00 175.00 C 7 37.0 - - 0.30 45.0 3.0 • 0.05-0.13
EC-H7 16-96C16CFR1.0M175 16.00 16.00 96.00 175.00 C 7 37.0 1.00 0.050 - - 3.0 • 0.05-0.13
EC-H7 16-96SL16CF-175 (1) 16.00 16.00 96.00 175.00 SL 7 37.0 - - 0.30 45.0 3.0 • 0.04-0.12
EC-H7 20-40C20CF-M104 20.00 20.00 40.00 104.00 C 7 37.0 0.00 - - - 3.0 • 0.05-0.13
EC-H7 20-40C20CFR1.6-M104 20.00 20.00 40.00 104.00 C 7 37.0 1.60 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-40C20CFR1M104 20.00 20.00 40.00 104.00 C 7 37.0 1.00 - - - 3.0 • 0.05-0.13
EC-H7 20-40C20CFR2.0-M104 20.00 20.00 40.00 104.00 C 7 37.0 2.00 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-40C20CFR2.5-M104 20.00 20.00 40.00 104.00 C 7 37.0 2.50 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-40C20CFR3.0-M104 20.00 20.00 40.00 104.00 C 7 37.0 3.00 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-40C20CFR4.0-M104 20.00 20.00 40.00 104.00 C 7 37.0 4.00 0.080 - - 3.0 • 0.05-0.13
EC-H7 20-40SL20CF-M104 (1) 20.00 20.00 40.00 104.00 SL 7 37.0 0.00 - - - 3.0 • 0.04-0.12
EC-H7 20-40SL20CFR1M104 (1) 20.00 20.00 40.00 104.00 SL 7 37.0 1.00 - - - 3.0 • 0.05-0.15
EC-H7 20-40W20CF-M104 20.00 20.00 40.00 104.00 W 7 37.0 0.00 - - - 3.0 • 0.05-0.13
EC-H7 20-60C20CF-M140 20.00 20.00 60.00 140.00 C 7 37.0 - - 0.40 45.0 3.0 • 0.05-0.13
EC-H7 20-60C20CFR1.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 1.00 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-60C20CFR2.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 2.00 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-60C20CFR2.5-M140 20.00 20.00 60.00 140.00 C 7 37.0 2.50 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-60C20CFR3.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 3.00 0.060 - - 3.0 • 0.05-0.13
EC-H7 20-60C20CFR4.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 4.00 0.080 - - 3.0 • 0.05-0.13
EC-H7 20-60SL20CF-M140 (1) 20.00 20.00 60.00 140.00 SL 7 37.0 - - 0.40 45.0 3.0 • 0.05-0.15
EC-H7 20-80C20CF-140 20.00 20.00 80.00 140.00 C 7 37.0 - - 0.40 45.0 3.0 • 0.05-0.13
EC-H7 20-80C20CFR1.0-M140 20.00 20.00 80.00 140.00 C 7 37.0 1.00 0.060 - - 3.0 • 0.05-0.13
• Enables processing at a radial width of cut (AE) of up to 0.10xDC ,For user guide,see pages 177-184
(1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves
(2) C-Cylindrical, W-Weldon, SL-Safe-Lock® (by Haimer)
(3) Number of flutes
(4) Corner radius tolerance (+/-)
(5) Maximum ramping angle

120 ISCAR
