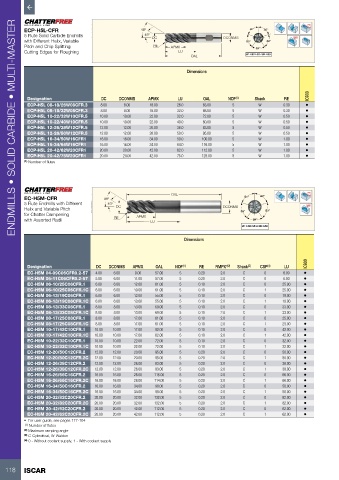

Page 120 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECP-H5L-CFR 46º a1° a2° Rd°
5 Flute Solid Carbide Endmills 45º DC DCONMS
with Different Helix, Variable a5° a3°
Pitch and Chip Splitting RE APMX a4°
Cutting Edges for Roughing LU
OAL a1≠a2≠a3≠a4≠a5

Dimensions

IC900
Designation DC DCONMS APMX LU OAL NOF (1) Shank RE
ECP-H5L 08-18/26W08CFR.3 8.00 8.00 18.00 26.0 63.00 5 W 0.30 •
ECP-H5L 08-18/32W08CFR.3 8.00 8.00 18.00 32.0 68.00 5 W 0.30 •
ECP-H5L 10-22/32W10CFR.5 10.00 10.00 22.00 32.0 72.00 5 W 0.50 •
ECP-H5L 10-22/40W10CFR.5 10.00 10.00 22.00 40.0 80.00 5 W 0.50 •
ECP-H5L 12-26/38W12CFR.5 12.00 12.00 26.00 38.0 83.00 5 W 0.50 •
ECP-H5L 12-26/50W12CFR.5 12.00 12.00 26.00 50.0 95.00 5 W 0.50 •
ECP-H5L 16-34/50W16CFR1 16.00 16.00 34.00 50.0 100.00 5 W 1.00 •
ECP-H5L 16-34/64W16CFR1 16.00 16.00 34.00 64.0 116.00 5 W 1.00 •
ECP-H5L 20-42/62W20CFR1 20.00 20.00 42.00 62.0 112.00 5 W 1.00 •
ECP-H5L 20-42/75W20CFR1 20.00 20.00 42.00 75.0 125.00 5 W 1.00 •
(1) Number of flutes

Rd°

EC-H5M-CFR 46º OAL a1° a2°
5 Flute Endmills with Different 45º DC
Helix and Variable Pitch DCONMS a5° a3°
for Chatter Dampening APMX
with Assorted Radii RE LU a4°
a1≠a2≠a3≠a4≠a5

Dimensions

IC900
Designation DC DCONMS APMX OAL NOF (1) RE RMPX° (2) Shank (3) CSP (4) LU
EC-H5M 04-09C06CFR0.2-57 4.00 6.00 9.00 57.00 5 0.20 2.0 C 0 6.00 •
EC-H5M 05-11C06CFR0.2-57 5.00 6.00 11.00 57.00 5 0.20 2.0 C 0 6.00 •
EC-H5M 06-10/25C06CFR.1 6.00 6.00 12.00 61.00 5 0.10 2.0 C 0 25.00 •
EC-H5M 06-10/25C06CFR.1C 6.00 6.00 10.00 61.00 5 0.10 2.0 C 1 25.00 •
EC-H5M 06-13/19C06CFR.1 6.00 6.00 12.00 55.00 5 0.10 2.0 C 0 19.00 •
EC-H5M 06-13/19C06CFR.1C 6.00 6.00 13.00 55.00 5 0.10 2.0 C 1 19.00 •
EC-H5M 08-13/33C08CFR.1 8.00 8.00 13.00 69.00 5 0.10 2.0 C 0 33.00 •
EC-H5M 08-13/33C08CFR.1C 8.00 8.00 13.00 69.00 5 0.10 2.0 C 1 33.00 •
EC-H5M 08-17/25C08CFR.1 8.00 8.00 17.00 61.00 5 0.10 2.0 C 0 25.00 •
EC-H5M 08-17/25C08CFR.1C 8.00 8.00 17.00 61.00 5 0.10 2.0 C 1 25.00 •
EC-H5M 10-17/42C10CFR.1 10.00 10.00 17.00 82.00 5 0.10 2.0 C 0 42.00 •
EC-H5M 10-17/42C10CFR.1C 10.00 10.00 17.00 82.00 5 0.10 2.0 C 1 42.00 •
EC-H5M 10-22/32C10CFR.1 10.00 10.00 22.00 72.00 5 0.10 2.0 C 0 32.00 •
EC-H5M 10-22/32C10CFR.1C 10.00 10.00 22.00 72.00 5 0.10 2.0 C 1 32.00 •
EC-H5M 12-20/50C12CFR.2 12.00 12.00 20.00 95.00 5 0.20 2.0 C 0 50.00 •
EC-H5M 12-20/50C12CFR.2C 12.00 12.00 20.00 95.00 5 0.20 2.0 C 1 50.00 •
EC-H5M 12-26/38C12CFR.2 12.00 12.00 26.00 83.00 5 0.20 2.0 C 0 38.00 •
EC-H5M 12-26/38C12CFR.2C 12.00 12.00 26.00 83.00 5 0.20 2.0 C 1 38.00 •
EC-H5M 16-26/66C16CFR.2 16.00 16.00 26.00 116.00 5 0.20 2.0 C 0 66.00 •
EC-H5M 16-26/66C16CFR.2C 16.00 16.00 26.00 114.00 5 0.20 2.0 C 1 66.00 •
EC-H5M 16-34/50C16CFR.2 16.00 16.00 34.00 98.00 5 0.20 2.0 C 0 50.00 •
EC-H5M 16-34/50C16CFR.2C 16.00 16.00 34.00 98.00 5 0.20 2.0 C 1 50.00 •
EC-H5M 20-32/82C20CFR.2 20.00 20.00 32.00 132.00 5 0.20 2.0 C 0 82.00 •
EC-H5M 20-32/82C20CFR.2C 20.00 20.00 32.00 132.00 5 0.20 2.0 C 1 82.00 •
EC-H5M 20-42/62C20CFR.2 20.00 20.00 42.00 112.00 5 0.20 2.0 C 0 62.00 •
EC-H5M 20-42/62C20CFR.2C 20.00 20.00 42.00 112.00 5 0.20 2.0 C 1 62.00 •
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon
(4) 0 - Without coolant supply, 1 - With coolant supply
