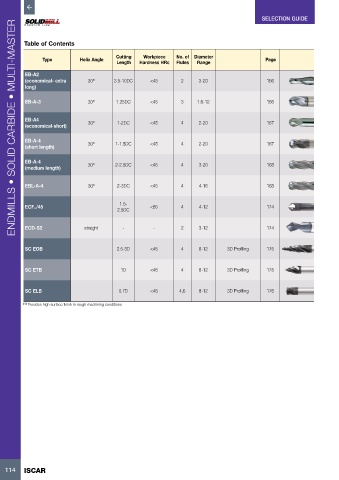

SELECTION GUIDE
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

Table of Contents

Cutting Workpiece No. of Diameter
Type Helix Angle Page
Length Hardness HRc Flutes Range
EB-A2
(economical- extra 30º 3.5-10DC <45 2 3-20 166
long)

EB-A-3 30º 1.25DC <45 3 1.6-12 166

EB-A4 30º
(economical-short) 1-2DC <45 4 2-20 167

EB-A-4 30º
(short length) 1-1.5DC <45 4 2-20 167

EB-A-4 30º
(medium length) 2-2.5DC <45 4 3-20 168

EBL-A-4 30º 2-3DC <45 4 4-16 168

1.5-
ECF../45 <65 4 4-12 174
2.5DC

ECD-S2 straight - - 2 3-12 174

SC EOB 2.5-3D <45 4 8-12 3D Profiling 175

SC ETB 1D <45 4 8-12 3D Profiling 175

SC ELB 0.7D <45 4,6 8-12 3D Profiling 176

(1) Provides high surface finish in rough machining conditions
