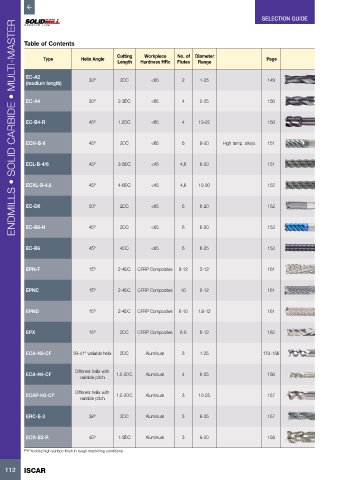

SELECTION GUIDE
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

Table of Contents

Cutting Workpiece No. of Diameter
Type Helix Angle Page
Length Hardness HRc Flutes Range
EC-A2
(medium length) 30º 2DC <65 2 1-25 149

EC-A4 30º 2-3DC <65 4 2-25 150

EC-B4-R 45º 1.5DC <65 4 10-22 150

ECH-B-6 45º 2DC <65 6 6-20 High temp. alloys 151

ECL-B-4/6 45º 3-5DC <45 4,6 6-20 151

ECXL-B-4,6 45º 4-6DC <45 4,6 10-20 152

EC-D6 50º 2DC <65 6 6-20 152

EC-B6-H 45º 2DC <65 6 6-20 153

EC-B6 45º 4DC <65 6 6-25 153

EPN-F 15º 2-4DC CFRP Composites 9-12 3-12 161

EPNC 15º 2-4DC CFRP Composites 10 8-12 161

EPND 15º 2-4DC CFRP Composites 6-10 1.6-12 161

EPX 15º 2DC CFRP Composites 6-8 6-12 162

ECA-H3-CF 39-41° variable helix 2DC Aluminum 3 1-25 154-156

Different helix with
ECA-H4-CF 1.5-2DC Aluminum 4 6-25 156
variable pitch
Different helix with
ECAP-H3-CF 1.5-2DC Aluminum 3 10-25 157
variable pitch

ERC-E-3 38º 2DC Aluminum 3 6-25 157

ECR-B3-R 45º 1-3DC Aluminum 3 6-20 158

(1) Provides high surface finish in rough machining conditions
