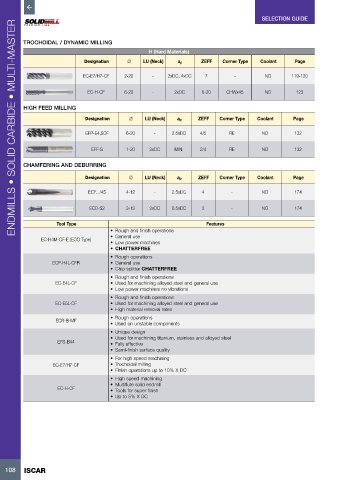

Page 110 - ISCAR(MILLINGCATALOG 38_2021)

SELECTION GUIDE
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

TROCHOIDAL / DYNAMIC MILLING
H (Hard Materials)
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page

EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120

EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123

HIGH FEED MILLING
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page

EFP-E4,5CF 6-20 - 2.5xDC 4/5 RE NO 132

EFF-S 1-20 3xDC MIN. 2/4 RE NO 132

CHAMFERING AND DEBURRING
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page

ECF.../45 4-12 - 2.5xDC 4 - NO 174

ECD-S2 3-12 2xDC 0.5xDC 2 - NO 174

Tool Type Features
• Rough and finish operations
• General use
EC-H4M-CF-E (ECO Type)
• Low power machines
• CHATTERFREE
• Rough operations
ECP-H4L-CFR • General use
• Chip splitter CHATTERFREE
• Rough and finish operations
EC-E4L-CF • Used for machining alloyed steel and general use
• Low power machines no vibrations
• Rough and finish operations
EC-E5L-CF • Used for machining alloyed steel and general use
• High material removal rates
• Rough operations
ECR-B-MF
• Used on unstable components
• Unique design
• Used for machining titanium, stainless and alloyed steel
EFS-B44 • Fully effective
• Semi-finish surface quality
• For high speed machining
EC-E7/H7-CF • Trochoidal milling
• Finish operations up to 10% X DC
• High speed machining
• Multiflute solid endmill
EC-H-CF • Tools for super finish
• Up to 5% X DC

108 ISCAR
