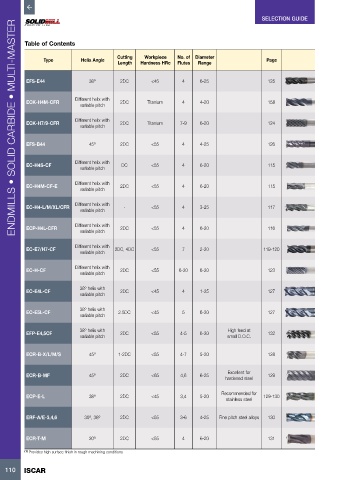

SELECTION GUIDE
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

Table of Contents

Cutting Workpiece No. of Diameter
Type Helix Angle Page
Length Hardness HRc Flutes Range

EFS-E44 38º 2DC <45 4 6-25 125

ECK-H4M-CFR Different helix with 2DC Titanium 4 4-20 158
variable pitch

Different helix with
ECK-H7/9-CFR 2DC Titanium 7-9 6-20 124
variable pitch

EFS-B44 45º 2DC <55 4 4-25 126

Different helix with
EC-H4S-CF DC <55 4 6-20 115
variable pitch

Different helix with
EC-H4M-CF-E 2DC <55 4 6-20 115
variable pitch
Different helix with
EC-H4-L/M/XL/CFR - <55 4 3-25 117
variable pitch

Different helix with
ECP-H4L-CFR 2DC <55 4 6-20 116
variable pitch

EC-E7/H7-CF Different helix with 2DC, 4DC <55 7 2-20 119-120
variable pitch

Different helix with
EC-H-CF 2DC <55 6-20 6-20 123
variable pitch
38º helix with
EC-E4L-CF 2DC <45 4 1-25 127
variable pitch

38º helix with
EC-E5L-CF 2.5DC <45 5 6-20 127
variable pitch

38º helix with High feed at
EFP-E4,5CF 2DC <55 4-5 6-20 132
variable pitch small D.O.C.

ECR-B-X/L/M/S 45º 1-2DC <55 4-7 5-20 128

ECR-B-MF 45º 2DC <65 4,6 6-25 Excellent for 129
hardened steel

Recommended for
ECP-E-L 38º 2DC <45 3,4 5-20 129-130
stainless steel

ERF-A/E-3,4,6 30º, 38º 2DC <55 3-6 4-25 Fine pitch steel alloys 130

ECR-T-M 20º 2DC <55 4 6-20 131

(1) Provides high surface finish in rough machining conditions

110 ISCAR
