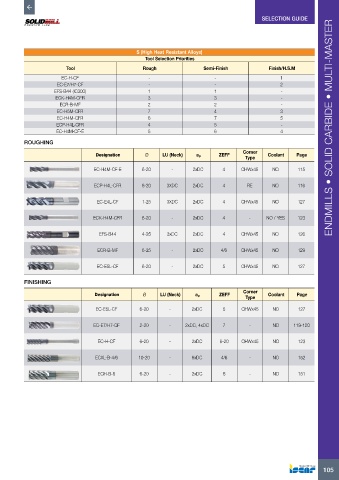

Page 107 - ISCAR(MILLINGCATALOG 38_2021)

SELECTION GUIDE

S (High Heat Resistant Alloys)
Tool Selection Priorities
Tool Rough Semi-Finish Finish/H.S.M
EC-H-CF - - 1
EC-E7/H7-CF - - 2
EFS-B44 (IC300) 1 1 -
ECK-H4M-CFR 3 3 -
ECR-B-MF 2 2 -
EC-H5M-CFR 7 4 3
EC-H4M-CFR 6 7 5
ECP-H4L-CFR 4 5 -
EC-H4M-CF-E 5 6 4 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ROUGHING

Corner
Designation Ø LU (Neck) ap ZEFF Coolant Page
Type
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115

ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116

EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 127

ECK-H4M-CFR 6-20 - 2xDC 4 - NO / YES 123

EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126

ECR-B-MF 6-25 - 2xDC 4/6 CHWx45 NO 129

EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127

FINISHING
Corner
Designation Ø LU (Neck) ap ZEFF Coolant Page
Type
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127

EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120

EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123

ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152

ECH-B-6 6-20 - 2xDC 6 - NO 151

105
