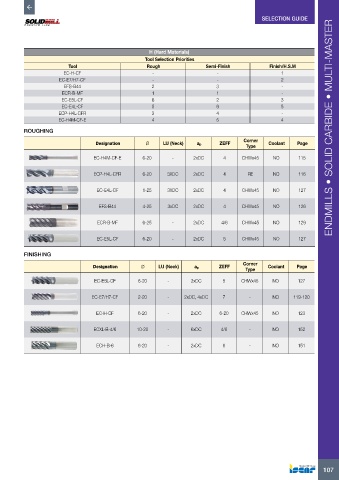

SELECTION GUIDE

H (Hard Materials)
Tool Selection Priorities
Tool Rough Semi-Finish Finish/H.S.M
EC-H-CF - - 1
EC-E7/H7-CF - - 2
EFS-B44 2 3 -
ECR-B-MF 1 1 -
EC-E5L-CF 6 2 3
EC-E4L-CF 5 6 5
ECP-H4L-CFR 3 4 -
EC-H4M-CF-E 4 5 4
ROUGHING ENDMILLS • SOLID CARBIDE • MULTI-MASTER

Designation Ø LU (Neck) ap ZEFF Corner Coolant Page
Type
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115

ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116

EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 127

EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126

ECR-B-MF 6-25 - 2xDC 4/6 CHWx45 NO 129

EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127

FINISHING
Corner
Designation Ø LU (Neck) ap ZEFF Coolant Page
Type
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127

EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120

EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123

ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152

ECH-B-6 6-20 - 2xDC 6 - NO 151

107
