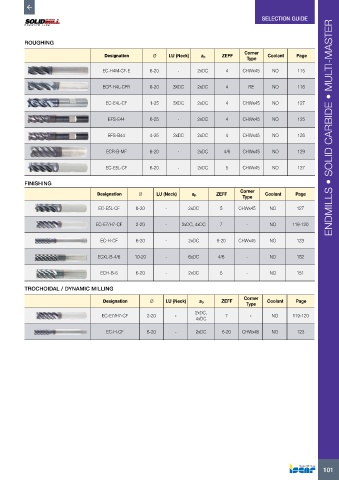

SELECTION GUIDE

ROUGHING
Corner
Designation Ø LU (Neck) ap ZEFF Coolant Page
Type
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115

ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116

EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 127

EFS-E44 6-25 - 2xDC 4 CHWx45 NO 125

EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126 ENDMILLS • SOLID CARBIDE • MULTI-MASTER

ECR-B-MF 6-20 - 2xDC 4/6 CHWx45 NO 129

EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127

FINISHING
Designation Ø LU (Neck) ap ZEFF Corner Coolant Page
Type
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127

EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120

EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123

ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152

ECH-B-6 6-20 - 2xDC 6 - NO 151

TROCHOIDAL / DYNAMIC MILLING

Designation Ø LU (Neck) ap ZEFF Corner Coolant Page
Type
2xDC,
EC-E7/H7-CF 2-20 - 7 - NO 119-120
4xDC
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
