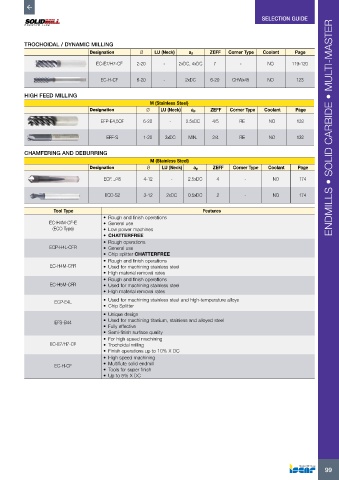

Page 101 - ISCAR(MILLINGCATALOG 38_2021)
P. 101

SELECTION GUIDE




          TROCHOIDAL / DYNAMIC MILLING
                                 Designation      Ø    LU (Neck)   ap      ZEFF  Corner Type  Coolant    Page
                                   EC-E7/H7-CF   2-20     -     2xDC, 4xDC  7        -         NO       119-120


                                    EC-H-CF      6-20     -       2xDC     6-20    CHWx45      NO        123

          HIGH FEED MILLING
                                                      M (Stainless Steel)
                                 Designation        Ø    LU (Neck)  ap     ZEFF   Corner Type  Coolant   Page
                                    EFP-E4,5CF     6-20      -    2.5xDC    4/5      RE        NO        132          ENDMILLS • SOLID CARBIDE • MULTI-MASTER


                                      EFF-S        1-20    3xDC    MIN.     2/4      RE        NO        132

          CHAMFERING AND DEBURRING
                                                      M (Stainless Steel)
                                 Designation         Ø    LU (Neck)  ap     ZEFF   Corner Type  Coolant   Page

                                     ECF.../45     4-12      -     2.5xDC    4         -         NO       174

                                      ECD-S2       3-12    2xDC    0.5xDC    2         -         NO       174


                    Tool Type                                           Features
                                     •  Rough and finish operations
                  EC-H4M-CF-E        •  General use
                   (ECO Type)        •  Low power machines
                                     •  CHATTERFREE
                                     •  Rough operations
                  ECP-H4L-CFR        •  General use
                                     •  Chip splitter CHATTERFREE
                                     •  Rough and finish operations
                   EC-H4M-CFR        •  Used for machining stainless steel
                                     •  High material removal rates
                                     •  Rough and finish operations
                   EC-H5M-CFR        •  Used for machining stainless steel
                                     •  High material removal rates

                    ECP-E4L          •  Used for machining stainless steel and high-temperature alloys
                                     •  Chip Splitter
                                     •  Unique design
                    EFS-B44          •  Used for machining titanium, stainless and alloyed steel
                                     •  Fully effective
                                     •  Semi-finish surface quality
                                     •  For high speed machining
                   EC-E7/H7-CF       •  Trochoidal milling
                                     •  Finish operations up to 10% X DC
                                     •  High speed machining
                    EC-H-CF          •  Multiflute solid endmill
                                     •  Tools for super finish
                                     •  Up to 5% X DC


















                                                                                                                   99
