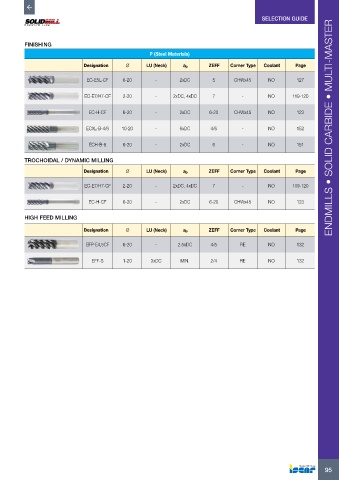

SELECTION GUIDE
FINISHING
P (Steel Materials)
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
ECXL-B-4/6 10-20 - 6xDC 4/6 - NO 152 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECH-B-6 6-20 - 2xDC 6 - NO 151
TROCHOIDAL / DYNAMIC MILLING
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
HIGH FEED MILLING
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page
EFP-E4,5CF 6-20 - 2.5xDC 4/5 RE NO 132
EFF-S 1-20 3xDC MIN. 2/4 RE NO 132
