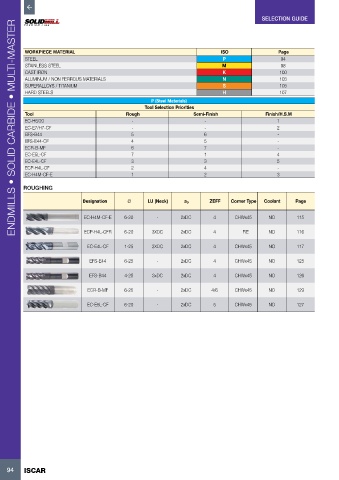

SELECTION GUIDE
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
WORKPIECE MATERIAL ISO Page
STEEL P 94
STAINLESS STEEL M 98
CAST IRON K 100
ALUMINUM / NON FERROUS MATERIALS N 103
SUPERALLOYS / TITANIUM S 105
HARD STEELS H 107
P (Steel Materials)
Tool Selection Priorities
Tool Rough Semi-Finish Finish/H.S.M
EC-H6/20 - - 1
EC-E7/H7-CF - - 2
EFS-B44 5 6 -
EFS-E44-CF 4 5 -
ECR-B-MF 6 7 -
EC-E5L-CF 7 1 4
EC-E4L-CF 3 3 5
ECP-H4L-CF 2 4 -
EC-H4M-CF-E 1 2 3
ROUGHING
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115
ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116
EC-E4L-CF 1-25 3XDC 2xDC 4 CHWx45 NO 117
EFS-E44 6-25 - 2xDC 4 CHWx45 NO 125
EFS-B44 4-25 3xDC 2xDC 4 CHWx45 NO 126
ECR-B-MF 6-25 - 2xDC 4/6 CHWx45 NO 129
EC-E5L-CF 6-20 - 2xDC 5 CHWx45 NO 127
