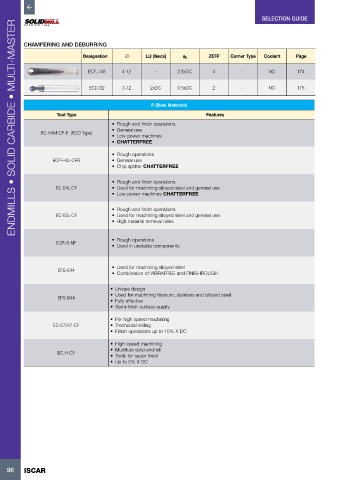

Page 98 - ISCAR(MILLINGCATALOG 38_2021)

SELECTION GUIDE
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

CHAMFERING AND DEBURRING

Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page

ECF.../45 4-12 - 2.5xDC 4 - NO 174

ECD-S2 3-12 2xDC 0.5xDC 2 - NO 175

P (Steel Materials)
Tool Type Features
• Rough and finish operations
• General use
EC-H4M-CF-E (ECO Type)
• Low power machines
• CHATTERFREE
• Rough operations
ECP-H4L-CFR • General use
• Chip splitter CHATTERFREE

• Rough and finish operations
EC-E4L-CF • Used for machining alloyed steel and general use
• Low power machines CHATTERFREE

• Rough and finish operations
EC-E5L-CF • Used for machining alloyed steel and general use
• High material removal rates

• Rough operations
ECR-B-MF
• Used in unstable components

• Used for machining alloyed steel
EFS-E44
• Combination of VIBRAFREE and FINISHROUGH

• Unique design
• Used for machining titanium, stainless and alloyed steel
EFS-B44
• Fully effective
• Semi-finish surface quality
• For high speed machining
EC-E7/H7-CF • Trochoidal milling
• Finish operations up to 10% X DC

• High speed machining
• Multiflute solid endmill
EC-H-CF
• Tools for super finish
• Up to 5% X DC
