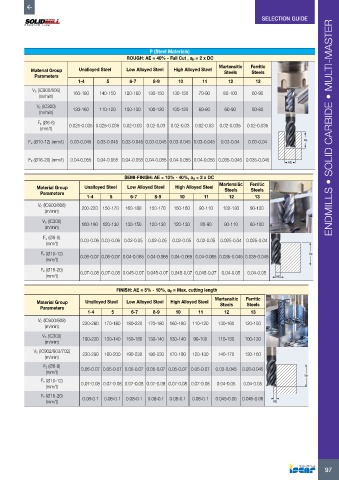

Page 99 - ISCAR(MILLINGCATALOG 38_2021)

SELECTION GUIDE

P (Steel Materials)
ROUGH: AE = 40% - Full Cut , ap = 2 x DC
Martensitic Ferritic
Material Group Unalloyed Steel Low Alloyed Steel High Alloyed Steel Steels Steels
Parameters
1-4 5 6-7 8-9 10 11 12 13
Vc (IC900/608) 160-180 140-150 120-160 130-150 130-150 70-90 80-100 60-90
(m/min)

Vc (IC300)
(m/min) 130-160 110-120 100-130 100-120 100-120 60-80 60-90 50-80
Fz (Ø6-8) 0.025-0.035 0.025-0.035 0.02-0.03 0.02-0.03 0.02-0.03 0.02-0.03 0.02-0.035 0.02-0.035
(mm/t) ENDMILLS • SOLID CARBIDE • MULTI-MASTER
Fz (Ø10-12) (mm/t) 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.045 0.03-0.04 0.03-0.04 ap

Fz (Ø16-20) (mm/t) 0.04-0.055 0.04-0.055 0.04-0.055 0.04-0.055 0.04-0.055 0.04-0.055 0.035-0.045 0.035-0.045
AE

SEMI-FINISH: AE = 10% - 40%, ap = 2 x DC
Martensitic Ferritic
Material Group Unalloyed Steel Low Alloyed Steel High Alloyed Steel Steels Steels
Parameters
1-4 5 6-7 8-9 10 11 12 13
Vc (IC900/608)
(m/min) 200-220 150-170 160-180 150-170 150-160 90-110 100-130 90-120
Vc (IC300) 160-190 120-130 130-150 120-130 120-130 80-90 90-110 80-100
(m/min)
Fz (Ø6-8) 0.03-0.06 0.03-0.06 0.02-0.05 0.02-0.05 0.02-0.05 0.02-0.05 0.025-0.04 0.025-0.04
(mm/t)
Fz (Ø10-12) 0.06-0.07 0.06-0.07 0.04-0.065 0.04-0.065 0.04-0.065 0.04-0.065 0.035-0.045 0.035-0.045 ap
(mm/t)
Fz (Ø16-20) 0.07-0.08 0.07-0.08 0.045-0.07 0.045-0.07 0.045-0.07 0.045-0.07 0.04-0.05 0.04-0.05
(mm/t) AE

FINISH: AE = 5% - 10%, ap = Max. cutting length
Martensitic Ferritic
Material Group Unalloyed Steel Low Alloyed Steel High Alloyed Steel Steels Steels
Parameters
1-4 5 6-7 8-9 10 11 12 13
Vc (IC900/608) 220-280 170-180 180-220 170-180 160-180 110-120 130-160 120-150
(m/min)
Vc (IC300) 190-220 130-140 150-180 130-140 130-140 90-100 110-130 100-120
(m/min)
Vc (IC902/903/702) 230-290 180-200 190-230 180-230 170-190 120-130 140-170 130-160
(m/min)
Fz (Ø6-8) 0.05-0.07 0.05-0.07 0.05-0.07 0.05-0.07 0.05-0.07 0.05-0.07 0.03-0.045 0.03-0.045
(mm/t)
ap
Fz (Ø10-12) 0.07-0.08 0.07-0.08 0.07-0.08 0.07-0.08 0.07-0.08 0.07-0.08 0.04-0.05 0.04-0.05
(mm/t)
Fz (Ø16-20) 0.08-0.1 0.08-0.1 0.08-0.1 0.08-0.1 0.08-0.1 0.08-0.1 0.045-0.06 0.045-0.06
(mm/t) AE
