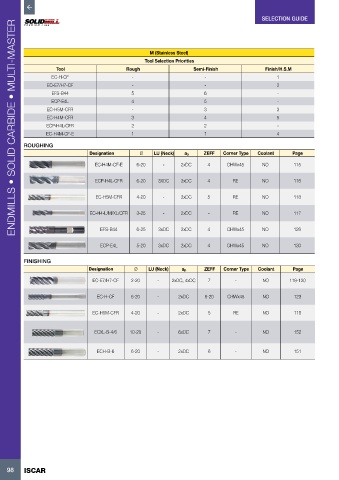

Page 100 - ISCAR(MILLINGCATALOG 38_2021)
P. 100
SELECTION GUIDE
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
M (Stainless Steel)
Tool Selection Priorities
Tool Rough Semi-Finish Finish/H.S.M
EC-H-CF - - 1
EC-E7/H7-CF - - 2
EFS-B44 5 6 -
ECP-E4L 4 5 -
EC-H5M-CFR - 3 3
EC-H4M-CFR 3 4 5
ECP-H4L-CFR 2 2 -
EC-H4M-CF-E 1 1 4
ROUGHING
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page
EC-H4M-CF-E 6-20 - 2xDC 4 CHWx45 NO 115
ECP-H4L-CFR 6-20 3XDC 2xDC 4 RE NO 116
EC-H5M-CFR 4-20 - 2xDC 5 RE NO 118
EC-H4-L/M/XL/CFR 3-25 - 2xDC - RE NO 117
EFS-B44 6-25 3xDC 2xDC 4 CHWx45 NO 126
ECP-E4L 5-20 3xDC 2xDC 4 CHWx45 NO 130
FINISHING
Designation Ø LU (Neck) ap ZEFF Corner Type Coolant Page
EC-E7/H7-CF 2-20 - 2xDC, 4xDC 7 - NO 119-120
EC-H-CF 6-20 - 2xDC 6-20 CHWx45 NO 123
EC-H5M-CFR 4-20 - 2xDC 5 RE NO 118
ECXL-B-4/6 10-20 - 6xDC 7 - NO 152
ECH-B-6 6-20 - 2xDC 6 - NO 151
