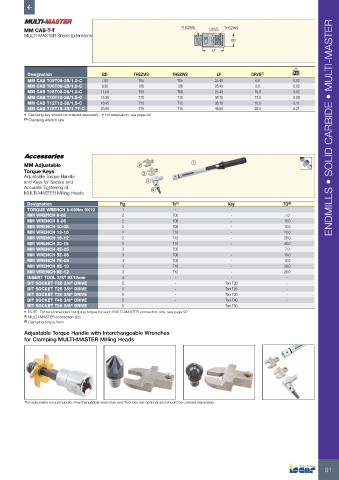

MM CAB-T-T THSZMS DRVS THSZWS
MULTI-MASTER Shank Extensions
BD
LF

Designation BD THSZMS THSZWS LF DRVS (1) kg
MM CAB T05T05-25/1.0-C 7.60 T05 T05 25.40 6.0 0.02
MM CAB T06T06-25/1.0-C 9.30 T06 T06 25.40 8.0 0.02
MM CAB T08T08-25/1.0-C 11.50 T08 T08 25.40 10.0 0.02
MM CAB T10T10-38/1.5-C 15.20 T10 T10 38.10 13.0 0.08
MM CAB T12T12-38/1.5-C 18.45 T12 T12 38.10 16.0 0.11
MM CAB T15T15-45/1.77-C 23.90 T15 T15 45.00 20.0 0.21
• Clamping key should be ordered separately • For adaptation, see page 44
(1) Clamping wrench size
ENDMILLS • SOLID CARBIDE • MULTI-MASTER

MM Adjustable 2 1
Torque Keys 3
Adjustable Torque Handle
and Keys for Secure and 4
Accurate Tightening of 5
MULTI-MASTER Milling Heads
Designation Fig. Ts (1) Key TQ (2)
TORQUE WRENCH 5-50Nm 9X12 1 - - -
MM WRENCH 6-05 2 T05 - 7.0
MM WRENCH 8-06 2 T06 - 10.0
MM WRENCH 10-08 2 T08 - 15.0
MM WRENCH 13-10 2 T10 - 28.0
MM WRENCH 16-12 2 T12 - 28.0
MM WRENCH 20-15 2 T15 - 40.0
MM WRENCH 4E-05 3 T05 - 7.0
MM WRENCH 5E-06 3 T06 - 10.0
MM WRENCH 7E-08 3 T08 - 15.0
MM WRENCH 8E-10 3 T10 - 28.0
MM WRENCH 9E-12 3 T12 - 28.0
INSERT TOOL 3/8" 9X12mm 4 - - -
BIT SOCKET T20 3/8" DRIVE 5 - Torx T20 -
BIT SOCKET T25 3/8" DRIVE 5 - Torx T25 -
BIT SOCKET T30 3/8" DRIVE 5 - Torx T30 -
BIT SOCKET T40 3/8" DRIVE 5 - Torx T40 -
BIT SOCKET T50 3/8" DRIVE 5 - Torx T50 -
• NOTE: For recommended clamping torque for each MULTI-MASTER connection size, see page 92
(1) MULTI-MASTER connection size
(2) Clamping torque Nxm
Adjustable Torque Handle with Interchangeable Wrenches
for Clamping MULTI-MASTER Milling Heads

The adjustable torque handle, interchangeable wrenches and Torx bits are optional and should be ordered separately.
