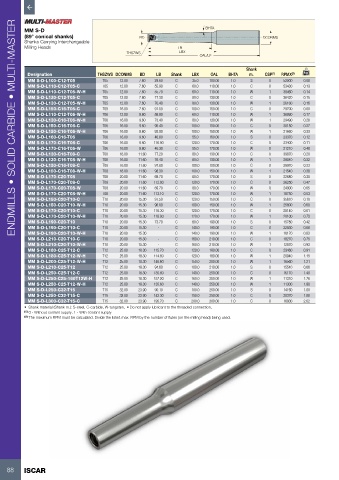

Page 90 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM S-D BHTA
(89° conical shanks) BD DCONMS
Shanks Carrying Interchangeable
Milling Heads LB
THSZWS LBX
OAL/LF

Shank
Designation THSZWS DCONMS BD LB Shank LBX OAL BHTA m. CSP (1) RPMX (2) kg
MM S-D-L100-C12-T05 T05 12.00 7.60 29.60 C 35.0 100.00 1.0 S 0 52000 0.08
MM S-D-L110-C12-T05-C T05 12.00 7.60 55.90 C 60.0 110.00 1.0 C 0 53430 0.13
MM S-D-L110-C12-T05-W-H T05 12.00 7.60 55.70 C 60.0 110.00 1.0 W 1 38460 0.14
MM S-D-L130-C12-T05-C T05 12.00 7.60 77.30 C 80.0 130.00 1.0 C 0 36420 0.15
MM S-D-L130-C12-T05-W-H T05 12.00 7.60 76.40 C 80.0 130.00 1.0 W 1 26160 0.16
MM S-D-L150-C16-T05-C T05 16.00 7.60 91.50 C 100.0 150.00 1.0 C 0 29700 0.00
MM S-D-L110-C12-T06-W-H T06 12.00 9.60 58.80 C 60.0 110.00 1.0 W 1 36990 0.17
MM S-D-L130-C16-T06-W-H T06 16.00 9.60 73.40 C 80.0 130.00 1.0 W 1 29490 0.28
MM S-D-L150-C16-T06-C T06 16.00 9.60 95.40 C 100.0 150.00 1.0 C 0 30150 0.27
MM S-D-L150-C16-T06-W-H T06 16.00 9.60 93.80 C 100.0 150.00 1.0 W 1 21660 0.33
MM S-D-L160-C16-T06 T06 16.00 9.60 46.80 C 55.0 160.00 1.0 S 0 23370 0.12
MM S-D-L170-C16-T06-C T06 16.00 9.60 116.90 C 120.0 170.00 1.0 C 0 23400 0.11
MM S-D-L170-C16-T06-W T06 16.00 9.60 46.30 C 55.0 170.00 1.0 W 0 21210 0.48
MM S-D-L130-C16-T08-C T08 16.00 11.60 77.20 C 80.0 130.00 1.0 C 0 39870 0.28
MM S-D-L130-C16-T08-W-H T08 16.00 11.60 76.40 C 80.0 130.00 1.0 W 1 29040 0.32
MM S-D-L150-C16-T08-C T08 16.00 11.60 97.80 C 100.0 150.00 1.0 C 0 29970 0.33
MM S-D-L150-C16-T08-W-H T08 16.00 11.60 98.30 C 100.0 150.00 1.0 W 1 21540 0.38
MM S-D-L170-C20-T08 T08 20.00 11.60 69.70 C 80.0 170.00 1.0 S 0 22680 0.30
MM S-D-L170-C20-T08-C T08 20.00 11.60 112.00 C 120.0 170.00 1.0 C 0 26250 0.47
MM S-D-L170-C20-T08-W T08 20.00 11.60 69.70 C 80.0 170.00 1.0 W 0 24900 0.65
MM S-D-L170-C20-T08-W-H T08 20.00 11.60 113.10 C 120.0 170.00 1.0 W 1 18750 0.53
MM S-D-L150-C20-T10-C T10 20.00 15.30 97.50 C 120.0 150.00 1.0 C 0 35610 0.10
MM S-D-L150-C20-T10-W-H T10 20.00 15.30 96.80 C 100.0 150.00 1.0 W 1 25800 0.60
MM S-D-L170-C20-T10-C T10 20.00 15.30 118.30 C 120.0 170.00 1.0 C 0 28140 0.61
MM S-D-L170-C20-T10-W-H T10 20.00 15.30 118.00 C 120.0 170.00 1.0 W 1 20100 0.73
MM S-D-L190-C20-T10 T10 20.00 15.30 73.70 C 80.0 190.00 1.0 S 0 15780 0.42
MM S-D-L190-C20-T10-C T10 20.00 15.30 - C 140.0 190.00 1.0 C 0 22830 0.68
MM S-D-L190-C20-T10-W-H T10 20.00 15.30 - C 140.0 190.00 1.0 W 1 16170 0.83
MM S-D-L210-C20-T10-C T10 20.00 15.30 - C 160.0 210.00 1.0 C 0 18270 0.75
MM S-D-L210-C20-T10-W-H T10 20.00 15.30 - C 160.0 210.00 1.0 W 1 12870 0.93
MM S-D-L180-C25-T12-C T12 25.00 18.30 115.70 C 120.0 180.00 1.0 C 0 29460 0.91
MM S-D-L180-C25-T12-W-H T12 25.00 18.30 114.60 C 120.0 180.00 1.0 W 1 20940 1.15
MM S-D-L200-C25-T12-W-H T12 25.00 18.30 146.60 C 150.0 200.00 1.0 W 1 16560 1.21
MM S-D-L210-C25-T12 T12 25.00 18.30 94.60 C 100.0 210.00 1.0 S 0 15540 0.66
MM S-D-L250-C25-T12-C T12 25.00 18.30 135.60 C 140.0 250.00 1.0 C 0 16170 1.40
MM S-D-L250-C25-160T12W-H T12 25.00 18.30 157.20 C 160.0 250.00 1.0 W 1 11310 1.76
MM S-D-L250-C25-T12-W-H T12 25.00 18.30 135.60 C 140.0 250.00 1.0 W 1 11300 1.80
MM S-D-L250-C32-T15 T15 32.00 23.90 90.10 C 100.0 250.00 1.0 S 0 14160 1.00
MM S-D-L250-C32-T15-C T15 32.00 23.90 143.30 C 150.0 250.00 1.0 C 0 20370 1.88
MM S-D-L300-C32-T15-C T15 32.00 23.90 195.70 C 200.0 300.00 1.0 C 0 16000 2.62
• Shank material (Shank m.): S-steel, C-carbide, W-tungsten. • Do not apply lubricant to the threaded connection.
(1) 0 - Without coolant supply, 1 - With coolant supply
(2) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used.
