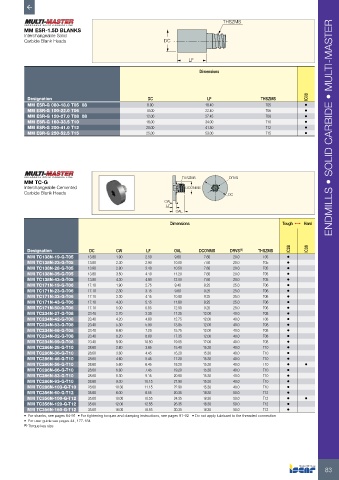

Page 85 - ISCAR(MILLINGCATALOG 38_2021)

THSZMS
MM ESR-1.5D BLANKS
Interchangeable Solid
Carbide Blank Heads DC

LF

Dimensions

Designation DC LF THSZMS IC08
MM ESR-G 080-18.0 T05 08 8.00 18.40 T05 •
MM ESR-G 100-22.0 T06 10.00 22.40 T06 •
MM ESR-G 120-27.0 T08 08 12.00 27.45 T08 •
MM ESR-G 160-33.5 T10 16.00 34.00 T10 •
MM ESR-G 200-41.0 T12 20.00 41.50 T12 • ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM ESR-G 250-52.5 T15 25.00 53.00 T15 •

MM TC-G THSZMS DRVS
Interchangeable Cemented DCONMS
Carbide Blank Heads DC
CW
LF
OAL
Dimensions Tough 1 Hard

Designation DC CW LF OAL DCONMS DRVS (1) THSZMS IC28 IC08
MM TC138N-19-G-T05 13.80 1.90 2.50 9.60 7.60 20.0 T05 •
MM TC138N-23-G-T05 13.80 2.30 2.90 10.00 7.60 20.0 T05 •
MM TC138N-28-G-T05 13.80 2.80 3.40 10.50 7.60 20.0 T05 •
MM TC138N-35-G-T05 13.80 3.50 4.10 11.20 7.60 20.0 T05 •
MM TC138N-43-G-T05 13.80 4.30 4.90 12.00 7.60 20.0 T05 •
MM TC171N-19-G-T06 17.10 1.90 2.75 9.40 9.25 25.0 T06 •
MM TC171N-23-G-T06 17.10 2.30 3.15 9.80 9.25 25.0 T06 •
MM TC171N-33-G-T06 17.10 3.30 4.15 10.80 9.25 25.0 T06 •
MM TC171N-43-G-T06 17.10 4.30 5.15 11.80 9.25 25.0 T06 •
MM TC171N-50-G-T06 17.10 5.00 5.85 12.50 9.25 25.0 T06 •
MM TC234N-27-G-T08 23.40 2.70 3.30 11.25 12.00 40.0 T08 •
MM TC234N-42-G-T08 23.40 4.20 4.80 12.75 12.00 40.0 T08 •
MM TC234N-53-G-T08 23.40 5.30 5.90 13.85 12.00 40.0 T08 •
MM TC234N-66-G-T08 23.40 6.60 7.20 15.75 12.00 40.0 T08 •
MM TC234N-82-G-T08 23.40 8.20 8.80 17.35 12.00 40.0 T08 •
MM TC234N-99-G-T08 23.40 9.90 10.50 19.05 12.00 40.0 T08 •
MM TC286N-28-G-T10 28.60 2.80 3.65 15.40 15.30 40.0 T10 •
MM TC286N-36-G-T10 28.60 3.60 4.45 16.20 15.30 40.0 T10 •
MM TC286N-46-G-T10 28.60 4.60 5.45 17.20 15.30 40.0 T10 •
MM TC286N-56-G-T10 28.60 5.60 6.45 18.20 15.30 40.0 T10 • •
MM TC286N-66-G-T10 28.60 6.60 7.45 19.20 15.30 40.0 T10 •
MM TC286N-83-G-T10 28.60 8.30 9.15 20.90 15.30 40.0 T10 •
MM TC286N-93-G-T10 28.60 9.30 10.15 21.90 15.30 40.0 T10 •
MM TC286N-103-G-T10 28.60 10.30 11.15 22.90 15.30 40.0 T10 •
MM TC356N-60-G-T12 35.60 6.00 6.55 20.35 18.30 50.0 T12 •
MM TC356N-100-G-T12 35.60 10.00 10.55 24.35 18.30 50.0 T12 • •
MM TC356N-120-G-T12 35.60 12.00 12.55 26.35 18.30 50.0 T12 •
MM TC356N-160-G-T12 35.60 16.00 16.55 30.35 18.30 50.0 T12 •
• For shanks, see pages 84-91 • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
• For user guide see pages 44, 177-184
(1) Torque key size
