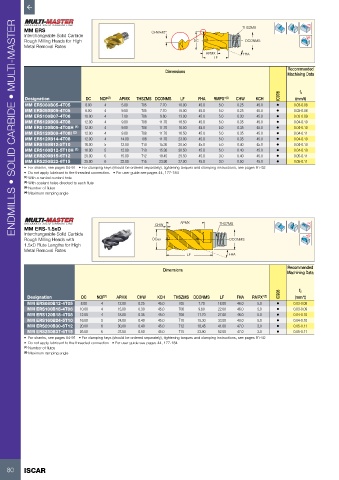

P. 82

Rd°
      ENDMILLS • SOLID CARBIDE • MULTI-MASTER
          MM ERS                                                                      THSZMS
            Interchangeable Solid Carbide             CHWx45°
          Rough Milling Heads for High                               DC                DCONMS
          Metal Removal Rates
                                                                         APMX         FHA
                                                                            LF

                                                           Dimensions                                 Recommended
                                                                                                      Machining Data


                                                                                                   IC908  fz
          Designation          DC   NOF (3)  APMX  THSZMS DCONMS  LF   FHA  RMPX° (4)  CHW  KCH          (mm/t)
          MM ERS080B05-4T05    8.00   4     5.00   T05   7.70   10.00  45.0   5.0   0.25   45.0   •     0.03-0.08
          MM ERS080B09-4T05    8.00   4     9.00   T05   7.70   15.00  45.0   5.0   0.25   45.0   •     0.03-0.08
          MM ERS100B07-4T06    10.00  4     7.00   T06   9.60   13.00  45.0   5.0   0.30   45.0   •     0.03-0.09
          MM ERS120B09-4T08    12.00  4     9.00   T08   11.70  16.50  45.0   5.0   0.35   45.0   •     0.04-0.10
          MM ERS120B09-4T08H  (1)  12.00  4  9.00  T08   11.70  16.50  45.0   5.0   0.35   45.0   •     0.04-0.10
          MM ERS120B09-4T08I  (2)  12.00  4  9.00  T08   11.70  16.50  45.0   5.0   0.35   45.0   •     0.04-0.11
          MM ERS120B14-4T08    12.00  4    14.00   T08   11.70  23.00  45.0   5.0   0.35   45.0   •     0.04-0.10
          MM ERS160B12-5T10    16.00  5    12.00   T10   15.30  20.50  45.0   5.0   0.40   45.0   •     0.04-0.10
          MM ERS160B12-5T10H  (1)  16.00  5  12.00  T10  15.30  20.50  45.0   5.0   0.40   45.0   •     0.04-0.10
          MM ERS200B15-6T12    20.00  6    15.00   T12   18.45  25.50  45.0   3.0   0.40   45.0   •     0.05-0.11
          MM ERS250B22-6T15    25.00  6    22.00   T15   23.90  37.00  45.0   3.0   0.50   45.0   •     0.05-0.11
          •  For shanks, see pages 84-91   • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
          •  Do not apply lubricant to the threaded connection.   • For user guide see pages 44, 177-184
          (1)  With a central coolant hole
          (2)  With coolant holes directed to each flute
          (3)  Number of flutes
          (4)  Maximum ramping angle


                                                                APMX          THSZMS                         Rd°

          MM ERS-1.5xD                                  CHW
          Interchangeable Solid Carbide
          Rough Milling Heads with                     DCe9                       DCONMS
          1.5xD Flute Lengths for High
          Metal Removal Rates
                                                                   LF            FHA

                                                          Dimensions                                  Recommended
                                                                                                      Machining Data



                                                                                                   IC908  fz
           Designation        DC   NOF (1)  APMX  CHW   KCH   THSZMS DCONMS   LF    FHA   RMPX° (2)      (mm/t)
           MM ERS080B12-4T05  8.00   4    12.00   0.25   45.0   T05    7.70   18.00  46.0  5.0    •     0.03-0.08
           MM ERS100B15-4T06  10.00  4    15.00   0.30   45.0   T06    9.60   22.00  46.0  5.0    •     0.03-0.09
           MM ERS120B18-4T08  12.00  4    18.00   0.35   45.0   T08   11.70   27.00  46.0  5.0    •     0.04-0.10
           MM ERS160B24-5T10  16.00  5    24.00   0.40   45.0   T10   15.30   33.50  40.0  5.0    •     0.04-0.10
           MM ERS200B30-6T12  20.00  6    30.00   0.40   45.0   T12   18.45   41.00  47.0  3.0    •     0.05-0.11
           MM ERS250B37-6T15  25.00  6    37.00   0.50   45.0   T15   23.90   52.50  47.0  3.0    •     0.05-0.11
          •  For shanks, see pages 84-91   • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
          •  Do not apply lubricant to the threaded connection   • For user guide see pages 44, 177-184
          (1)  Number of flutes
          (2)  Maximum ramping angle






















   80     ISCAR
