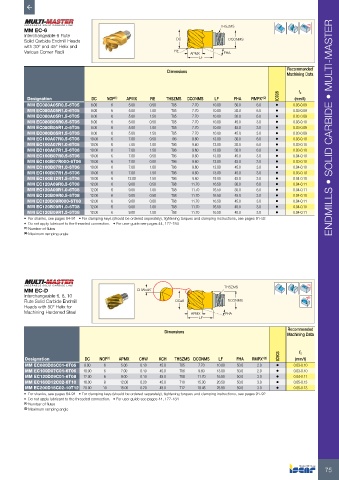

Page 77 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
MM EC-6 THSZMS
Interchangeable 6 Flute
Solid Carbide Endmill Heads DC DCONMS
with 30° and 45° Helix and
Various Corner Radii RE APMX FHA
LF

Dimensions Recommended
Machining Data

IC908 fz
Designation DC NOF (1) APMX RE THSZMS DCONMS LF FHA RMPX° (2) (mm/t)
MM EC080A05R0.5-6T05 8.00 6 5.00 0.50 T05 7.70 10.00 30.0 6.0 • 0.03-0.09
MM EC080A05R1.0-6T05 8.00 6 5.00 1.00 T05 7.70 10.00 30.0 6.0 • 0.03-0.09
MM EC080A05R1.5-6T05 8.00 6 5.00 1.50 T05 7.70 10.00 30.0 6.0 • 0.03-0.09
MM EC080B05R0.5-6T05 8.00 6 5.00 0.50 T05 7.70 10.00 45.0 3.0 • 0.03-0.10
MM EC080B05R1.0-6T05 8.00 6 5.00 1.00 T05 7.70 10.00 45.0 3.0 • 0.03-0.09 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM EC080B05R1.5-6T05 8.00 6 5.00 1.50 T05 7.70 10.00 45.0 3.0 • 0.03-0.09
MM EC100A07R0.5-6T06 10.00 6 7.00 0.50 T06 9.60 13.00 30.0 6.0 • 0.03-0.10
MM EC100A07R1.0-6T06 10.00 6 7.00 1.00 T06 9.60 13.00 30.0 6.0 • 0.03-0.10
MM EC100A07R1.5-6T06 10.00 6 7.00 1.50 T06 9.60 13.00 30.0 6.0 • 0.03-0.10
MM EC100B07R0.5-6T06 10.00 6 7.00 0.50 T06 9.60 13.00 45.0 3.0 • 0.04-0.10
MM EC100B07R000-6T06 10.00 6 7.00 0.00 T06 9.60 13.00 45.0 3.0 • 0.03-0.10
MM EC100B07R1.0-6T06 10.00 6 7.00 1.00 T06 9.60 13.00 45.0 3.0 • 0.04-0.10
MM EC100B07R1.5-6T06 10.00 6 7.00 1.50 T06 9.60 13.00 45.0 3.0 • 0.03-0.10
MM EC100B12R1.5-6T06 10.00 6 12.00 1.50 T06 9.60 19.00 45.0 3.0 • 0.04-0.10
MM EC120A09R0.5-6T08 12.00 6 9.00 0.50 T08 11.70 16.50 30.0 6.0 • 0.04-0.11
MM EC120A09R1.0-6T08 12.00 6 9.00 1.00 T08 11.70 16.50 30.0 6.0 • 0.04-0.11
MM EC120B09R0.5-6T08 12.00 6 9.00 0.50 T08 11.70 16.50 45.0 3.0 • 0.04-0.10
MM EC120B09R000-6T08 12.00 6 9.00 0.00 T08 11.70 16.50 45.0 3.0 • 0.04-0.11
MM EC120B09R1.0-6T08 12.00 6 9.00 1.00 T08 11.70 16.50 45.0 3.0 • 0.04-0.10
MM EC120B09R1.5-6T08 12.00 6 9.00 1.50 T08 11.70 16.50 45.0 3.0 • 0.04-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle

Rd°

MM EC-D CHWx45˚ THSZMS
Interchangeable 6, 8, 10
Flute Solid Carbide Endmill DCe8 DCONMS
Heads with 50° Helix for
Machining Hardened Steel APMX FHA
LF

Recommended
Dimensions Machining Data

IC903 fz
Designation DC NOF (1) APMX CHW KCH THSZMS DCONMS LF FHA RMPX° (2) (mm/t)
MM EC080D05C01-6T05 8.00 6 5.00 0.10 45.0 T05 7.70 10.00 50.0 2.0 • 0.03-0.10
MM EC100D07C01-6T06 10.00 6 7.00 0.10 45.0 T06 9.60 13.00 50.0 2.0 • 0.03-0.10
MM EC120D09C01-6T08 12.00 6 9.00 0.10 45.0 T08 11.70 16.50 50.0 3.0 • 0.04-0.11
MM EC160D12C02-8T10 16.00 8 12.00 0.20 45.0 T10 15.30 20.50 50.0 3.0 • 0.05-0.13
MM EC200D15C02-10T12 20.00 10 15.00 0.20 45.0 T12 18.45 25.50 50.0 3.0 • 0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle

75
