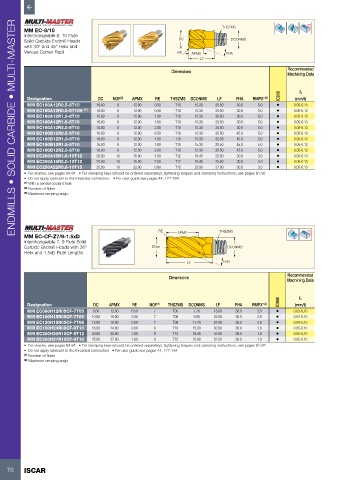

Page 78 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM EC-8/10 THSZMS
Interchangeable 8, 10 Flute
Solid Carbide Endmill Heads DC DCONMS
with 30° and 45° Helix and
Various Corner Radii RE APMX FHA
LF

Dimensions Recommended
Machining Data

IC908 fz
Designation DC NOF (2) APMX RE THSZMS DCONMS LF FHA RMPX° (3) (mm/t)
MM EC160A12R0.5-8T10 16.00 8 12.00 0.50 T10 15.30 20.50 30.0 5.0 • 0.05-0.13
MM EC160A12R0.5-8T10H (1) 16.00 8 12.00 0.50 T10 15.30 20.50 30.0 5.0 • 0.05-0.13
MM EC160A12R1.0-8T10 16.00 8 12.00 1.00 T10 15.30 20.50 30.0 5.0 • 0.05-0.13
MM EC160A12R1.6-8T10 16.00 8 12.00 1.60 T10 15.30 20.50 30.0 5.0 • 0.05-0.13
MM EC160A12R2.0-8T10 16.00 8 12.00 2.00 T10 15.30 20.50 30.0 5.0 • 0.05-0.13
MM EC160B12R0.5-8T10 16.00 8 12.00 0.50 T10 15.30 20.50 45.0 5.0 • 0.05-0.13
MM EC160B12R1.0-8T10 16.00 8 12.00 1.00 T10 15.30 20.50 45.0 5.0 • 0.05-0.13
MM EC160B12R1.6-8T10 16.00 8 12.00 1.60 T10 15.30 20.50 45.0 5.0 • 0.05-0.13
MM EC160B12R2.0-8T10 16.00 8 12.00 2.00 T10 15.30 20.50 45.0 5.0 • 0.05-0.13
MM EC200A15R1.0-10T12 20.00 10 15.00 1.00 T12 18.45 25.50 30.0 3.0 • 0.05-0.13
MM EC200A15R2.0-10T12 20.00 10 15.00 2.00 T12 18.45 25.50 30.0 3.0 • 0.05-0.13
MM EC250A22R0.8-10T15 25.00 10 22.00 0.80 T15 23.90 37.00 30.0 3.0 • 0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With a central coolant hole
(2) Number of flutes
(3) Maximum ramping angle

RE THSZMS Rd°
MM EC-CF-Z7/9-1.5xD APMX
Interchangeable 7, 9 Flute Solid
Carbide Endmill Heads with 36° DCe8 DCONMS
Helix and 1.5xD Flute Lengths
LF FHA

Recommended
Dimensions Machining Data

IC908 fz
Designation DC APMX RE NOF (1) THSZMS DCONMS LF FHA RMPX° (2) (mm/t)
MM EC080H12R05CF-7T05 8.00 12.00 0.50 7 T05 7.70 18.00 36.0 3.0 • 0.03-0.10
MM EC100H15R05CF-7T06 10.00 15.00 0.50 7 T06 9.60 22.00 36.0 3.0 • 0.04-0.10
MM EC120H18R05CF-7T08 12.00 18.00 0.50 7 T08 11.70 27.00 36.0 3.0 • 0.04-0.10
MM EC160H24R08CF-9T10 16.00 24.00 0.80 9 T10 15.30 33.50 36.0 1.0 • 0.05-0.10
MM EC200H30R10CF-9T12 20.00 30.00 1.00 9 T12 18.45 41.00 36.0 1.0 • 0.05-0.10
MM EC250H37R10CF-9T15 25.00 37.00 1.00 9 T15 23.90 52.50 36.0 1.0 • 0.05-0.10
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle

76 ISCAR
