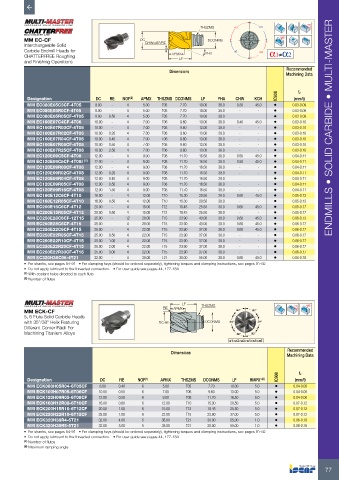

Page 79 - ISCAR(MILLINGCATALOG 38_2021)

α2 Rd°

THSZMS α1
MM EC-CF DC DCONMS
Interchangeable Solid CHWx45°/RE
Carbide Endmill Heads for FHA α2 α1
CHATTERFREE Roughing APMX LF
and Finishing Operations
Dimensions Recommended
Machining Data

IC908 fz
Designation DC RE NOF (2) APMX THSZMS DCONMS LF FHA CHW KCH (mm/t)
MM EC080E05C3CF-4T05 8.00 - 4 5.00 T05 7.70 10.00 38.0 0.30 45.0 • 0.03-0.09
MM EC080E05R0CF-4T05 8.00 - 4 5.00 T05 7.70 10.00 38.0 - - • 0.03-0.09
MM EC080E05R05CF-4T05 8.00 0.50 4 5.00 T05 7.70 10.00 38.0 - - • 0.03-0.09
MM EC100E07C4CF-4T06 10.00 - 4 7.00 T06 9.60 13.00 38.0 0.40 45.0 • 0.03-0.10
MM EC100E07R00CF-4T06 10.00 - 4 7.00 T06 9.60 13.00 38.0 - - • 0.03-0.10 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM EC100E07R02CF-4T06 10.00 0.20 4 7.00 T06 9.60 13.00 38.0 - - • 0.03-0.10
MM EC100E07R04CF-4T06 10.00 0.40 4 7.00 T06 9.60 13.00 38.0 - - • 0.03-0.10
MM EC100E07R05CF-4T06 10.00 0.50 4 7.00 T06 9.60 13.00 38.0 - - • 0.03-0.10
MM EC100E07R25CF-4T06 10.00 2.50 4 7.00 T06 9.60 13.00 38.0 - - • 0.03-0.10
MM EC120E09C5CF-4T08 12.00 - 4 9.00 T08 11.70 16.50 38.0 0.50 45.0 • 0.04-0.11
MM EC120E09C5CF-4T08I (1) 12.00 - 4 9.00 T08 11.70 16.50 38.0 0.50 45.0 • 0.04-0.11
MM EC120E09R00CF-4T08 12.00 - 4 9.00 T08 11.70 16.50 38.0 - - • 0.04-0.11
MM EC120E09R02CF-4T08 12.00 0.20 4 9.00 T08 11.70 16.50 38.0 - - • 0.04-0.11
MM EC120E09R04CF-4T08 12.00 0.40 4 9.00 T08 11.70 16.50 38.0 - - • 0.04-0.11
MM EC120E09R05CF-4T08 12.00 0.50 4 9.00 T08 11.70 16.50 38.0 - - • 0.04-0.11
MM EC120E09R15CF-4T08 12.00 1.50 4 9.00 T08 11.70 16.50 38.0 - - • 0.04-0.11
MM EC160E12C6CF-4T10 16.00 - 4 12.00 T10 15.30 20.50 38.0 0.60 45.0 • 0.05-0.13
MM EC160E12R05CF-4T10 16.00 0.50 4 12.00 T10 15.30 20.50 38.0 - - • 0.05-0.13
MM EC200E15C6CF-4T12 20.00 - 4 15.00 T12 18.45 25.50 38.0 0.60 45.0 • 0.05-0.17
MM EC200E15R05CF-4T12 20.00 0.50 4 15.00 T12 18.45 25.50 38.0 - - • 0.05-0.17
MM EC250E28C6CF-12T15 25.00 - 12 28.00 T15 23.90 43.00 38.0 0.60 45.0 • 0.06-0.13
MM EC250E28C6CF-4T15 25.00 - 4 28.00 T15 23.90 43.00 38.0 0.60 45.0 • 0.06-0.17
MM EC250E22C6CF-4T15 25.00 - 4 22.00 T15 23.90 37.00 38.0 0.60 45.0 • 0.06-0.17
MM EC250E22R05CF-4T15 25.00 0.50 4 22.00 T15 23.90 37.00 38.0 - - • 0.06-0.17
MM EC250E22R10CF-4T15 25.00 1.00 4 22.00 T15 23.90 37.00 38.0 - - • 0.06-0.17
MM EC250E22R20CF-4T15 25.00 2.00 4 22.00 T15 23.90 37.00 38.0 - - • 0.06-0.17
MM EC250E22R30CF-4T15 25.00 3.00 4 22.00 T15 23.90 37.00 38.0 - - • 0.06-0.17
MM EC320H38C06-4T21 32.00 - 4 38.00 T21 30.00 55.00 38.0 0.60 45.0 • 0.06-0.18
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With coolant holes directed to each flute
(2) Number of flutes

LF THSZMS Rd°

MM ECK-CF RE APMX a2° a3°
5, 6 Flute Solid Carbide Heads
with 35°/38° Helix Featuring DC e8 DCONMS a1° a4°
Different Corner Radii For
Machining Titanium Alloys a6° a5°
a1≠a2≠a3≠a4≠a5≠a6

Dimensions Recommended
Machining Data

IC908 fz
Designation DC RE NOF (1) APMX THSZMS DCONMS LF RMPX° (2) (mm/t)
MM ECK080H05R04-6T05CF 8.00 0.40 6 5.00 T05 7.70 10.00 5.0 • 0.04-0.08
MM ECK100H07R05-6T06CF 10.00 0.50 6 7.00 T06 9.60 13.00 5.0 • 0.04-0.08
MM ECK120H09R05-6T08CF 12.00 0.50 6 9.00 T08 11.70 16.50 5.0 • 0.04-0.08
MM ECK160H12R08-6T10CF 16.00 0.80 6 12.00 T10 15.30 20.50 5.0 • 0.07-0.12
MM ECK200H15R10-6T12CF 20.00 1.00 6 15.00 T12 18.45 25.50 5.0 • 0.07-0.12
MM ECK250H22R10-6T15CF 25.00 1.00 6 22.00 T15 23.90 37.00 5.0 • 0.07-0.12
MM ECK320H38R4-5T21 32.00 4.00 5 38.00 T21 30.00 55.00 1.0 • 0.06-0.18
MM ECK320H38R5-5T21 32.00 5.00 5 38.00 T21 30.00 55.00 1.0 • 0.06-0.18
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle

77
