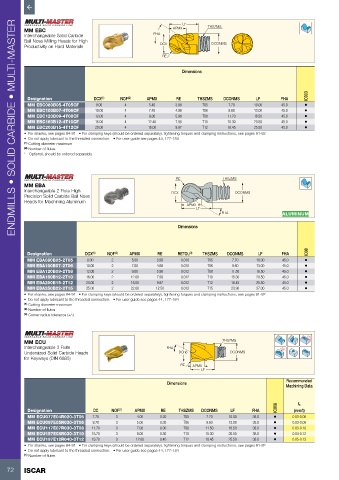

Page 74 - ISCAR(MILLINGCATALOG 38_2021)

LF
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM EBC APMX THSZMS
Interchangeable Solid Carbide FHA
Ball Nose Milling Heads for High DCX DCONMS
Productivity on Hard Materials
RE

Dimensions

IC903
Designation DCX (1) NOF (2) APMX RE THSZMS DCONMS LF FHA
MM EBC080B05-4T05CF 8.00 4 5.40 3.98 T05 7.70 10.00 45.0 •
MM EBC100B07-4T06CF 10.00 4 7.40 4.98 T06 9.60 13.00 45.0 •
MM EBC120B09-4T08CF 12.00 4 9.30 5.98 T08 11.70 16.50 45.0 •
MM EBC160B12-4T10CF 16.00 4 12.40 7.98 T10 15.30 20.50 45.0 •
MM EBC200B15-4T12CF 20.00 4 16.00 9.97 T12 18.45 25.50 45.0 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
* Optional, should be ordered separately

RE THSZMS
MM EBA
Interchangeable 2 Flute High DCX DCONMS
Precision Solid Carbide Ball Nose
Heads for Machining Aluminum
APMX
LF
FHA ALUMINUM
Dimensions

Designation DCX (1) NOF (2) APMX RE RETOL (3) THSZMS DCONMS LF FHA IC08
MM EBA080B05-2T05 8.00 2 5.00 3.98 0.010 T05 7.70 10.00 45.0 •
MM EBA100B07-2T06 10.00 2 7.00 4.98 0.010 T06 9.60 13.00 45.0 •
MM EBA120B09-2T08 12.00 2 9.00 5.98 0.012 T08 11.50 16.50 45.0 •
MM EBA160B12-2T10 16.00 2 12.00 7.98 0.012 T10 15.30 20.50 45.0 •
MM EBA200B15-2T12 20.00 2 15.00 9.97 0.012 T12 18.45 25.50 45.0 •
MM EBA250B22-2T15 25.00 2 22.00 12.50 0.012 T15 23.90 37.00 45.0 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
(3) Corner radius tolerance (+/-)

Rd°
MM ECU THSZMS
Interchangeable 3 Flute FHA
Undersized Solid Carbide Heads DCh8 DCONMS
for Keyways (DIN 6885)
RE APMX
LF
Recommended
Dimensions
Machining Data

fz
Designation DC NOF (1) APMX RE THSZMS DCONMS LF FHA IC908 (mm/t)
MM ECU077E04R020-3T05 7.70 3 4.00 0.20 T05 7.70 10.00 38.0 • 0.03-0.08
MM ECU097E05R030-3T06 9.70 3 5.00 0.30 T06 9.60 13.00 38.0 • 0.03-0.09
MM ECU117E07R030-3T08 11.70 3 7.00 0.30 T08 11.50 16.50 38.0 • 0.03-0.10
MM ECU157E08R030-3T10 15.70 3 8.00 0.30 T10 15.30 20.50 38.0 • 0.04-0.12
MM ECU197E12R040-3T12 19.70 3 12.00 0.40 T12 18.45 25.50 38.0 • 0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes

72 ISCAR
