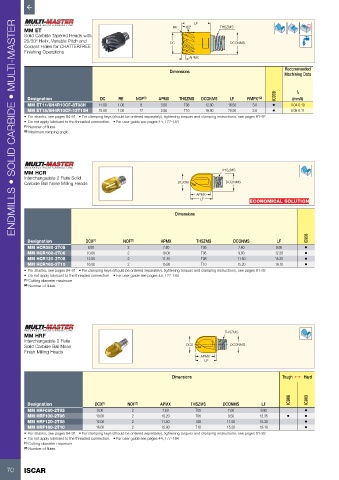

Page 72 - ISCAR(MILLINGCATALOG 38_2021)
P. 72
LF Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM ET RE 82° THSZMS
Solid Carbide Tapered Heads with
20/30° Helix, Variable Pitch and DC DCONMS
Coolant Holes for CHATTERFREE
Finishing Operations
APMX
Dimensions Recommended
Machining Data
IC908 fz
Designation DC RE NOF (1) APMX THSZMS DCONMS LF RMPX° (2) (mm/t)
MM ET11/8H4R10CF-8T08H 11.00 1.00 8 3.50 T08 12.00 16.50 3.0 • 0.04-0.10
MM ET15/8H4R10CF-12T10H 15.00 1.00 12 3.50 T10 16.00 20.50 3.0 • 0.05-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Maximum ramping angle
MM HCR THSZMS
Interchangeable 2 Flute Solid
Carbide Ball Nose Milling Heads DCXh9 DCONMS
APMX
LF
ECONOMICAL SOLUTION
Dimensions
IC908
Designation DCX (1) NOF (2) APMX THSZMS DCONMS LF
MM HCR080-2T05 8.00 2 7.80 T05 7.60 9.95 •
MM HCR100-2T06 10.00 2 10.00 T06 9.50 12.35 •
MM HCR120-2T08 12.00 2 11.45 T08 11.50 15.30 •
MM HCR160-2T10 16.00 2 15.80 T10 15.20 19.10 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
MM HRF THSZMS
Interchangeable 2 Flute
Solid Carbide Ball Nose DCX DCONMS
Finish Milling Heads
APMX
LF
Dimensions Tough 1 Hard
IC908 IC903
Designation DCX (1) NOF (2) APMX THSZMS DCONMS LF
MM HRF080-2T05 8.00 2 7.60 T05 7.60 9.95 •
MM HRF100-2T06 10.00 2 10.20 T06 9.50 12.35 • •
MM HRF120-2T08 12.00 2 11.50 T08 11.50 15.30 •
MM HRF160-2T10 16.00 2 15.80 T10 15.20 19.10 •
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Cutting diameter maximum
(2) Number of flutes
70 ISCAR
