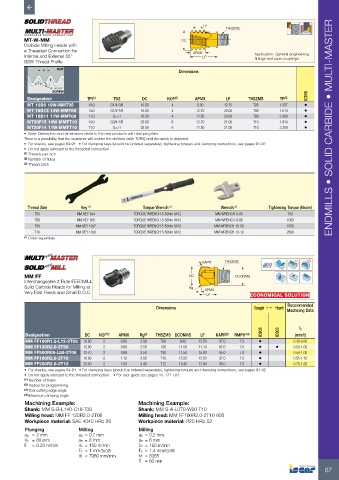

Page 69 - ISCAR(MILLINGCATALOG 38_2021)

TP
THSZMS
MT-W-MM DC
Carbide Milling Heads with
a Threaded Connection for APMX
Internal and External 55° LF Application: General engineering
fittings and pipe couplings
BSW Thread Profile

NUT
TP Dimensions
55˚
RE=0.137TP
SCREW
Designation TPI (1) TDZ DC NOF (2) APMX LF THSZMS TP (3) IC908
MT 10D6 19W-MMT05 19.0 G1/4-3/8 10.00 4 5.30 12.75 T05 1.337 •
MT 16D13 14W-MMT08 14.0 G1/2-7/8 16.00 4 12.70 20.00 T08 1.814 •
MT 16D11 11W-MMT08 11.0 G=>1 16.00 4 11.50 20.00 T08 2.309 •
MT20F15 14W-MMTT10 14.0 G3/4-7/8 20.00 6 12.70 21.00 T10 1.814 •
MT20F14 11W-MMTT10 11.0 G=>1 20.00 6 11.50 21.00 T10 2.309 • ENDMILLS • SOLID CARBIDE • MULTI-MASTER
• Note: Description and dimensions relate to the new products with clamping flats.
There is a possibility that the customer will receive the old item (with TORX) until the stock is depleted.
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection
(1) Threads per inch
(2) Number of flutes
(3) Thread pitch

Thread Size Key (1) Torque Wrench (1) Wrench (1) Tightening Torque (Nxcm)
T05 MM KEY 6x4 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 6-05 700
T06 MM KEY 8x5 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 8-06 1000
T08 MM KEY 10x7 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 10-08 1500
T10 MM KEY 13x8 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 13-10 2800
Order separately
(1)

KAPR THSZMS Rd°

MM FF DC DCONMS
Interchangeable 2 Flute FEEDMILL
Solid Carbide Heads for Milling at Rg APMX
Very Fast Feeds and Small D.O.C. LF ECONOMICAL SOLUTION
Recommended
Dimensions Tough 1 Hard Machining Data

IC908 IC903 fz
Designation DC NOF (1) APMX Rg (2) THSZMS DCONMS LF KAPR (3) RMPX° (4) (mm/t)
MM FF100R1.5-L12-2T06 10.00 2 0.60 2.00 T06 9.60 12.50 97.0 7.0 • 0.30-0.60
MM FF120R2.0-2T08 12.00 2 0.68 2.50 T08 11.50 11.10 97.0 7.0 • • 0.50-1.00
MM FF500R08-L59-2T08 12.70 2 0.68 2.50 T08 11.50 15.00 95.0 7.0 • 0.50-1.00
MM FF160R2.0-2T10 16.00 2 1.10 3.00 T10 15.20 13.50 97.0 7.0 • 0.55-1.10
MM FF200R2.0-2T12 20.00 2 1.50 3.40 T12 18.45 17.40 95.0 7.0 • 0.75-1.50
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Radius for programming
(3) Tool cutting edge angle
(4) Maximum ramping angle
Machining Example: Machining Example:
Shank: MM S-B-L140-C16-T08 Shank: MM S-A-L070-W20-T10
Milling head: MM FF 120R2.0-2T08 Milling head: MM FF160R2.0-2T10 908
Workpiece material: SAE 4340 HRc 28 Workpiece material: P20 HRc 52
Plunging Milling Milling
ap = 2 mm ap = 0.7 mm ap = 0.2 mm
Vc = 80 mm ae = 8 mm ae = 6 mm
F = 0.24 m/min Vc = 150 m/min Vc = 150 m/min
Fz = 1 mm/tooth Fz = 1.4 mm/tooth
Vf = 7960 mm/min Vf = 8355
T = 60 min

67
