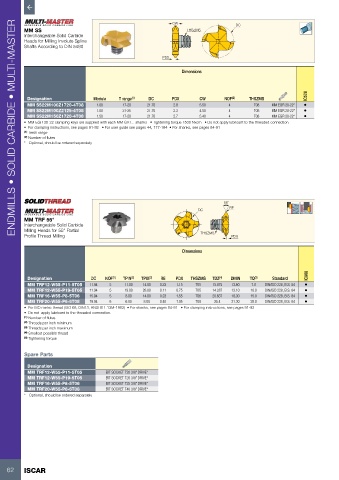

CW DC
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM SS THSZMS
Interchangeable Solid Carbide
Heads for Milling Involute Spline
Shafts According to DIN 5480
PDX

Dimensions

IC528
Designation Module T range (1) DC PDX CW NOF (2) THSZMS
MM SS22M100Z1720-4T08 1.00 17-20 21.70 2.8 5.50 4 T08 MM EGR 20-22* •
MM SS22M100Z2125-4T08 1.00 21-25 21.70 2.3 4.50 4 T08 MM EGR 20-22* •
MM SS22M150Z1720-4T08 1.50 17-20 21.70 2.7 5.40 4 T08 MM EGR 20-22* •
• MM EGR 20-22 clamping keys are supplied with each MM GRT... shanks • Tightening torque 1500 Nxcm • Do not apply lubricant to the threaded connection.
• For clamping instructions, see pages 91-92 • For user guide see pages 44, 177-184 • For shanks, see pages 84-91
(1) Teeth range
(2) Number of flutes
* Optional, should be ordered separately

55˚
DC RE

MM TRF 55°
Interchangeable Solid Carbide
Milling Heads for 55° Partial THSZMS
Profile Thread Milling PDX

Dimensions

IC908
Designation DC NOF (1) TPIN (2) TPIX (3) RE PDX THSZMS TDZ (4) DMIN TQ (5) Standard
MM TRF12-W55-P11-5T05 11.94 5 11.00 14.00 0.23 1.15 T05 15.875 13.60 7.0 DIN/ISO 228, B.S. 84 •
MM TRF12-W55-P19-5T05 11.94 5 19.00 28.00 0.11 0.75 T05 14.287 13.10 10.0 DIN/ISO 228, B.S. 84 •
MM TRF16-W55-P8-5T06 15.94 5 8.00 14.00 0.23 1.55 T06 20.637 18.30 15.0 DIN/ISO 228, B.S. 84 •
MM TRF20-W55-P6-6T08 19.94 6 6.00 8.00 0.40 1.95 T08 25.4 21.30 28.0 DIN/ISO 228, B.S. 84 •
• For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Threads per inch minimum
(3) Threads per inch maximum
(4) Smallest possible thread
(5) Tightening torque

Spare Parts

Designation
MM TRF12-W55-P11-5T05 BIT SOCKET T20 3/8" DRIVE*
MM TRF12-W55-P19-5T05 BIT SOCKET T20 3/8" DRIVE*
MM TRF16-W55-P8-5T06 BIT SOCKET T25 3/8" DRIVE*
MM TRF20-W55-P6-6T08 BIT SOCKET T40 3/8" DRIVE*
* Optional, should be ordered separately

62 ISCAR
