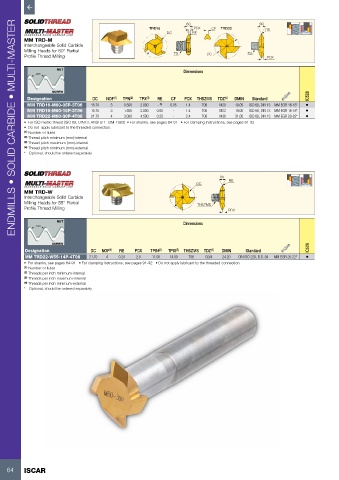

Page 66 - ISCAR(MILLINGCATALOG 38_2021)

60 60
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
TRD16 DC RE CF TRD22 RE
PDX
MM TRD-M
Interchangeable Solid Carbide
Milling Heads for 60° Partial TS TS

Profile Thread Milling DC PDX

NUT Dimensions
60°

SCREW
Designation DC NOF (1) TPN (2) TPX (3) RE CF PDX THSZMS TDZ (4) DMIN Standard IC528
MM TRD16-M60-05P-3T06 15.70 3 0.500 2.000 - (5) 0.05 1.4 T06 M20 19.05 ISO 68, DIN 13 MM EGR 16-18* •
MM TRD16-M60-15P-3T06 15.70 3 1.500 2.000 0.05 - 1.4 T06 M22 19.05 ISO 68, DIN 13 MM EGR 16-18* •
MM TRD22-M60-30P-4T08 21.70 4 3.000 4.500 0.20 - 2.4 T08 M36 31.00 ISO 68, DIN 13 MM EGR 20-22* •
• For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Thread pitch minimum (mm)-internal
(3) Thread pitch maximum (mm)-internal
(4) Thread pitch minimum (mm)-external
* Optional, should be ordered separately

55
DC RE
MM TRD-W
Interchangeable Solid Carbide
Milling Heads for 55° Partial THSZMS
Profile Thread Milling PDX

NUT
55° Dimensions

SCREW
Designation DC NOF (1) RE PDX TPIN (2) TPIX (3) THSZMS TDZ (4) DMIN Standard IC528
MM TRD22-W55-14P-4T08 21.70 4 0.20 2.0 11.00 14.00 T08 G3/4 24.20 DIN ISO 228, B.S. 84 MM EGR 20-22* •
• For shanks, see pages 84-91 • For clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Threads per inch minimum-internal
(3) Threads per inch maximum-internal
(4) Threads per inch minimum-external
* Optional, should be ordered separately

64 ISCAR
