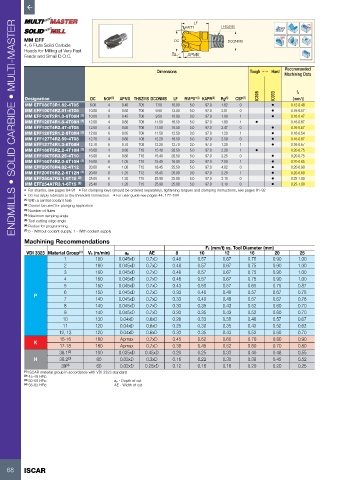

P. 70
LF Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
KAPR THSZMS
MM EFF DC DCONMS
4, 6 Flute Solid Carbide
Heads for Milling at Very Fast Rg
Feeds and Small D.O.C. APMX
Dimensions Tough 1 Hard Recommended
Machining Data
IC908 IC903 fz
Designation DC NOF (3) APMX THSZMS DCONMS LF RMPX° (4) KAPR (5) Rg (6) CSP (7) (mm/t)
MM EFF080T3R1.62-4T05 8.00 4 0.40 T05 7.50 10.00 5.0 97.0 1.62 0 • 0.12-0.48
MM EFF100T4R2.01-4T06 10.00 4 0.50 T06 9.50 13.00 5.0 97.0 2.01 0 • 0.16-0.57
MM EFF100T2R1.0-6T06H (1) 10.00 6 0.45 T06 9.50 10.00 3.0 97.0 1.00 1 • 0.16-0.47
MM EFF120T4R1.8-4T08H (1) 12.00 4 0.60 T08 11.50 16.50 5.0 97.0 1.80 1 • 0.16-0.67
MM EFF120T4R2.47-4T08 12.00 4 0.60 T08 11.50 16.50 5.0 97.0 2.47 0 • 0.16-0.67
MM EFF120T2R1.2-6T08H (1) 12.00 6 0.65 T08 11.50 12.50 3.0 97.0 1.20 1 • 0.16-0.54
MM EFF127T4R2.59-4T08 12.70 4 0.60 T08 12.20 16.50 5.0 97.0 2.59 0 • 0.16-0.67
MM EFF127T4R1.3-6T08H 12.70 6 0.70 T08 12.20 12.70 3.0 97.0 1.30 1 • 0.16-0.67
MM EFF160T5R2.2-4T10H (1) 16.00 4 0.80 T10 15.40 20.50 5.0 97.0 2.20 1 • 0.20-0.75
MM EFF160T5R3.25-4T10 16.00 4 0.80 T10 15.40 20.50 5.0 97.0 3.25 0 • 0.20-0.75
MM EFF160T4R2.0-6T10H (1) 16.00 6 1.05 T10 15.40 16.00 3.0 97.0 2.00 1 • 0.20-0.65
MM EFF200T6R4.02-4T12 20.00 4 1.00 T12 18.45 25.50 5.0 97.0 4.02 0 • 0.20-0.90
MM EFF200T5R2.2-6T12H (1) 20.00 6 1.25 T12 18.45 20.00 3.0 97.0 2.20 1 • 0.20-0.80
MM EFF250A7R3.1-6T15 (2) 25.00 6 1.20 T15 23.90 25.00 5.0 97.0 3.10 0 • 0.25-1.00
MM EFF254A7R3.1-6T15 (2) 25.40 6 1.20 T15 23.90 25.00 5.0 97.0 3.10 0 • 0.25-1.00
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With a central coolant hole
(2) Cannot be used for plunging application
(3) Number of flutes
(4) Maximum ramping angle
(5) Tool cutting edge angle
(6) Radius for programming
(7) 0 - Without coolant supply, 1 - With coolant supply
Machining Recommendations
Fz (mm/t) vs. Tool Diameter (mm)
VDI 3323 Material Group (1) Vc (m/min) ap AE 8 10 12 16 20 25
1 180 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
2 160 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
3 160 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
4 160 0.045xD 0.7xD 0.48 0.57 0.67 0.75 0.90 1.00
5 150 0.045xD 0.7xD 0.43 0.50 0.57 0.65 0.75 0.87
6 150 0.045xD 0.7xD 0.33 0.40 0.48 0.57 0.67 0.78
P
7 140 0.045xD 0.7xD 0.33 0.40 0.48 0.57 0.67 0.78
8 140 0.045xD 0.7xD 0.30 0.35 0.43 0.52 0.60 0.70
9 140 0.045xD 0.7xD 0.30 0.35 0.43 0.52 0.60 0.70
10 130 0.04xD 0.6xD 0.28 0.33 0.38 0.48 0.57 0.67
11 120 0.04xD 0.6xD 0.25 0.30 0.35 0.43 0.52 0.62
12, 13 120 0.04xD 0.6xD 0.30 0.35 0.43 0.52 0.60 0.70
15-16 180 Apmax 0.7xD 0.45 0.52 0.60 0.70 0.80 0.90
K
17-18 160 Apmax 0.7xD 0.38 0.45 0.52 0.60 0.70 0.80
38.1 (2) 100 0.035xD 0.45xD 0.20 0.25 0.33 0.40 0.48 0.55
H 38.2 (3) 80 0.03xD 0.3xD 0.16 0.22 0.30 0.38 0.45 0.52
39 (4) 60 0.02xD 0.25xD 0.12 0.16 0.16 0.20 0.20 0.25
(1) ISCAR material group in accordance with VDI 3323 standard
(2) 45-49 HRc
(3) 50-55 HRc ap - Depth of cut
56-63 HRc
(4) AE - Width of cut
