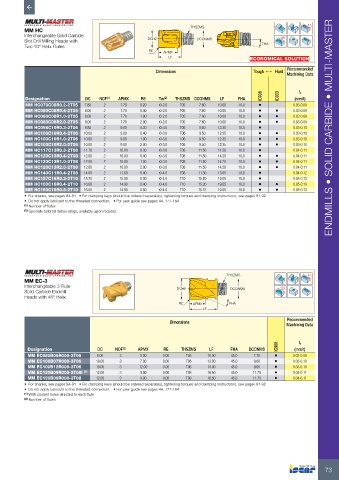

Page 75 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
MM HC THSZMS
Interchangeable Solid Carbide
Slot Drill Milling Heads with DCh9 DCONMS FHA
Two 10° Helix Flutes
RE APMX
LF ECONOMICAL SOLUTION

Dimensions Tough 1 Hard Recommended
Machining Data

IC908 IC903 fz
Designation DC NOF (1) APMX RE Tm (2) THSZMS DCONMS LF FHA (mm/t)
MM HC078C08R0.2-2T05 7.80 2 7.70 0.20 r0-2.0 T05 7.60 10.00 10.0 • 0.03-0.09
MM HC080C08R0.4-2T05 8.00 2 7.70 0.40 r0-2.0 T05 7.60 10.00 10.0 • • 0.03-0.09
MM HC080C08R1.0-2T05 8.00 2 7.70 1.00 r0-2.0 T05 7.60 10.00 10.0 • • 0.03-0.09
MM HC080C08R2.0-2T05 8.00 2 7.70 2.00 r0-2.0 T05 7.60 10.00 10.0 • • 0.03-0.09
MM HC098C10R0.3-2T06 9.80 2 9.00 0.30 r0-3.0 T06 9.50 12.35 10.0 • 0.03-0.10 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM HC100C10R0.4-2T06 10.00 2 9.00 0.40 r0-3.0 T06 9.50 12.35 10.0 • • 0.03-0.10
MM HC100C10R1.0-2T06 10.00 2 9.00 1.00 r0-3.0 T06 9.50 12.35 10.0 • • 0.03-0.10
MM HC100C10R2.0-2T06 10.00 2 9.00 2.00 r0-3.0 T06 9.50 12.35 10.0 • • 0.03-0.10
MM HC117C13R0.3-2T08 11.70 2 10.00 0.30 r0-3.0 T08 11.50 14.20 10.0 • 0.04-0.11
MM HC120C13R0.4-2T08 12.00 2 10.00 0.40 r0-3.0 T08 11.50 14.20 10.0 • • 0.04-0.11
MM HC120C13R1.0-2T08 12.00 2 10.00 1.00 r0-3.0 T08 11.50 14.20 10.0 • • 0.04-0.11
MM HC120C13R2.0-2T08 12.00 2 10.00 2.00 r0-3.0 T08 11.50 14.20 10.0 • • 0.04-0.11
MM HC140C11R0.4-2T08 14.00 2 11.60 0.40 r0-4.0 T08 11.50 15.05 10.0 • 0.04-0.12
MM HC157C16R0.3-2T10 15.70 2 15.00 0.30 r0-4.0 T10 15.20 19.05 10.0 • 0.05-0.13
MM HC160C16R0.4-2T10 16.00 2 14.90 0.40 r0-4.0 T10 15.20 19.05 10.0 • • 0.05-0.13
MM HC160C16R0.8-2T10 16.00 2 14.90 0.80 r0-4.0 T10 15.15 19.05 10.0 • • 0.05-0.13
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) Number of flutes
(2) Specially tailored radius range, available upon request.

THSZMS Rd°

MM EC-3
Interchangeable 3 Flute DCe8 DCONMS
Solid Carbide Endmill
Heads with 45° Helix
RE APMX FHA
LF
Recommended
Dimensions Machining Data

IC908 fz
Designation DC NOF (2) APMX RE THSZMS LF FHA DCONMS (mm/t)
MM EC080B05R000-3T05 8.00 3 5.00 0.00 T05 10.00 45.0 7.70 • 0.03-0.09
MM EC100B07R000-3T06 10.00 3 7.00 0.00 T06 13.00 45.0 9.60 • 0.03-0.10
MM EC100B12R000-3T06 10.00 3 12.00 0.00 T06 19.00 45.0 9.60 • 0.03-0.10
MM EC120B09R000-3T08I (1) 12.00 3 9.00 0.00 T08 16.50 45.0 11.70 • 0.04-0.11
MM EC120B09R000-3T08 12.00 3 9.00 0.00 T08 16.50 45.0 11.70 • 0.04-0.11
• For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184
(1) With coolant holes directed to each flute
(2) Number of flutes

73
