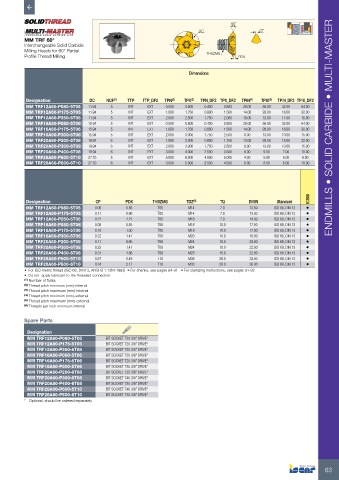

Page 65 - ISCAR(MILLINGCATALOG 38_2021)

60˚
DC CF
MM TRF 60°
Interchangeable Solid Carbide
Milling Heads for 60° Partial THSZMS
Profile Thread Milling PDX

Dimensions

Designation DC NOF (1) TTP TTP_DF2 TPN (2) TPX (3) TPN_DF2 TPX_DF2 TPIN (4) TPIX (5) TPIN_DF2 TPIX_DF2
MM TRF12A60-P080-5T05 11.94 5 INT EXT 0.500 0.800 0.400 0.800 28.00 56.00 32.00 64.00
MM TRF12A60-P175-5T05 11.94 5 INT EXT 1.000 1.750 0.800 1.500 14.00 28.00 16.00 32.00
MM TRF12A60-P250-5T05 11.94 5 INT EXT 2.000 2.500 1.750 2.000 10.00 13.00 11.00 15.00
MM TRF16A60-P080-5T06 15.94 5 INT EXT 0.500 0.800 0.400 0.800 28.00 56.00 32.00 64.00
MM TRF16A60-P175-5T06 15.94 5 INT EXT 1.000 1.750 0.800 1.500 14.00 28.00 16.00 32.00 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM TRF16A60-P300-5T06 15.94 5 INT EXT 2.000 3.000 1.750 2.500 8.00 13.00 10.00 15.00
MM TRF20A60-P200-6T08 19.94 6 INT EXT 1.000 2.000 0.800 1.750 13.00 28.00 15.00 32.00
MM TRF20A60-P300-6T08 19.94 6 INT EXT 2.000 3.000 1.750 2.500 8.00 13.00 10.00 15.00
MM TRF20A60-P400-6T08 19.94 6 INT EXT 3.000 4.000 2.500 3.500 6.00 9.00 7.00 10.00
MM TRF28A60-P600-5T10 27.70 5 INT EXT 5.000 6.000 4.500 5.000 4.00 5.00 5.00 6.00
MM TRF28A60-P500-6T10 27.70 6 INT EXT 3.000 5.000 2.500 4.500 6.00 8.00 6.00 10.00

IC908
Designation CF PDX THSZMS TDZ (6) TQ DMIN Standard
MM TRF12A60-P080-5T05 0.05 0.55 T05 M14 7.0 13.50 ISO 68, DIN 13 •
MM TRF12A60-P175-5T05 0.11 0.96 T05 M14 7.0 13.00 ISO 68, DIN 13 •
MM TRF12A60-P250-5T05 0.22 1.21 T05 M16 7.0 14.00 ISO 68, DIN 13 •
MM TRF16A60-P080-5T06 0.05 0.55 T06 M18 10.0 17.50 ISO 68, DIN 13 •
MM TRF16A60-P175-5T06 0.10 1.00 T06 M18 10.0 17.00 ISO 68, DIN 13 •
MM TRF16A60-P300-5T06 0.22 1.41 T06 M20 10.0 18.00 ISO 68, DIN 13 •
MM TRF20A60-P200-6T08 0.11 0.95 T08 M24 10.0 23.00 ISO 68, DIN 13 •
MM TRF20A60-P300-6T08 0.22 1.41 T08 M24 15.0 22.00 ISO 68, DIN 13 •
MM TRF20A60-P400-6T08 0.31 1.86 T08 M25 15.0 22.00 ISO 68, DIN 13 •
MM TRF28A60-P600-5T10 0.57 2.49 T10 M38 28.0 33.00 ISO 68, DIN 13 •
MM TRF28A60-P500-6T10 0.34 2.17 T10 M33 28.0 30.00 ISO 68, DIN 13 •
• For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Thread pitch minimum (mm)-internal
(3) Thread pitch maximum (mm)-internal
(4) Thread pitch minimum (mm)-external
(5) Thread pitch maximum (mm)-external
(6) Threads per inch minimum-internal

Spare Parts
Designation
MM TRF12A60-P080-5T05 BIT SOCKET T20 3/8" DRIVE*
MM TRF12A60-P175-5T05 BIT SOCKET T20 3/8" DRIVE*
MM TRF12A60-P250-5T05 BIT SOCKET T20 3/8" DRIVE*
MM TRF16A60-P080-5T06 BIT SOCKET T20 3/8" DRIVE*
MM TRF16A60-P175-5T06 BIT SOCKET T25 3/8" DRIVE*
MM TRF16A60-P300-5T06 BIT SOCKET T25 3/8" DRIVE*
MM TRF20A60-P200-6T08 BIT SOCKET T25 3/8" DRIVE*
MM TRF20A60-P300-6T08 BIT SOCKET T40 3/8" DRIVE*
MM TRF20A60-P400-6T08 BIT SOCKET T25 3/8" DRIVE*
MM TRF28A60-P600-5T10 BIT SOCKET T40 3/8" DRIVE*
MM TRF28A60-P500-6T10 BIT SOCKET T40 3/8" DRIVE*
* Optional, should be ordered separately

63
