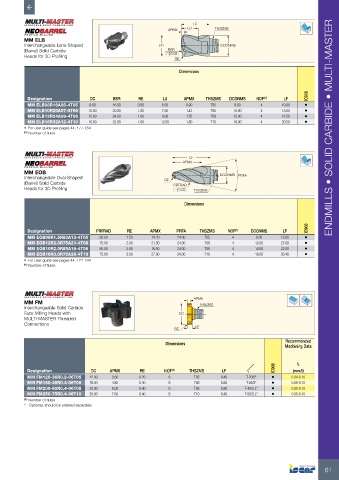

Page 63 - ISCAR(MILLINGCATALOG 38_2021)

LF
APMX LU THSZMS
MM ELB
Interchangeable Lens-Shaped DC DCONMS
(Barrel) Solid Carbide BSR
0.02
Heads for 3D Profiling
RE
Dimensions

IC908
Designation DC BSR RE LU APMX THSZMS DCONMS NOF (1) LF
MM ELB08R16A05-4T05 8.00 16.00 0.50 5.50 0.90 T05 8.00 4 10.00 •
MM ELB10R20A07-4T06 10.00 20.00 1.00 7.50 1.42 T06 10.00 4 13.00 •
MM ELB12R24A09-4T08 12.00 24.00 1.00 9.00 1.55 T08 12.00 4 16.50 •
MM ELB16R32A12-4T10 16.00 32.00 1.00 12.00 1.80 T10 16.00 4 20.50 •
• For user guide see pages 44, 177-184 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
(1) Number of flutes

LF

APMX
MM EOB
Interchangeable Oval-Shaped RE DCONMS PRFA
(Barrel) Solid Carbide PRFRAD
Heads for 3D Profiling 0.02 THSZMS

Dimensions

IC908
Designation PRFRAD RE APMX PRFA THSZMS NOF (1) DCONMS LF
MM EOB08R1.5R80A13-4T05 80.00 1.50 14.20 24.00 T05 4 8.00 18.00 •
MM EOB12R2.0R75A21-4T08 75.00 2.00 21.30 24.00 T08 4 12.00 27.00 •
MM EOB10R2.0R85A16-4T06 85.00 2.00 16.50 24.00 T06 4 10.00 22.00 •
MM EOB16R3.0R75A26-4T10 75.00 3.00 27.00 24.00 T10 4 16.00 33.40 •
• For user guide see pages 44, 177-184
(1) Number of flutes

MM FM APMX
THSZMS
Interchangeable Solid Carbide
Face Milling Heads with DC
MULTI-MASTER Threaded
Connections
RE LF
Recommended
Dimensions
Machining Data

IC908 fz
Designation DC APMX RE NOF (1) THSZMS LF (mm/t)
MM FM120-36R0.2-06T05 12.00 3.60 0.20 6 T05 4.40 T-20/3* • 0.04-0.10
MM FM160-48R0.4-06T06 16.00 4.80 0.40 6 T06 5.60 T-25/3* • 0.05-0.10
MM FM200-60R0.4-06T08 20.00 6.00 0.40 6 T08 6.80 T-40/3 L* • 0.05-0.10
MM FM250-75R0.4-06T10 25.00 7.50 0.40 6 T10 8.40 T-50/3 L* • 0.05-0.10
(1) Number of flutes
* Optional, should be ordered separately

61
