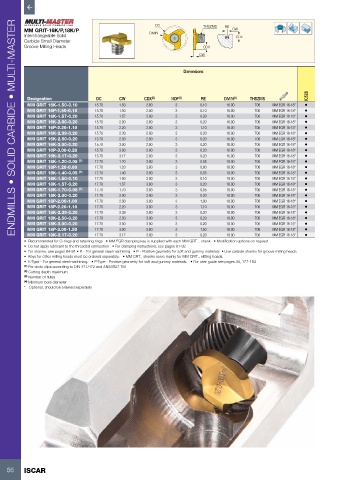

Page 58 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM GRIT-16K/P,18K/P DC THSZMS RE CW
Interchangeable Solid DMIN CDX
Carbide Small Diameter
Groove Milling Heads CDX
CW

Dimensions

IC528
Designation DC CW CDX (2) NOF (3) RE DMIN (4) THSZMS
MM GRIT 16K-1.50-0.10 15.70 1.50 2.80 3 0.10 16.00 T06 MM EGR 16-18* •
MM GRIT 16P-1.50-0.10 15.70 1.50 2.80 3 0.10 16.00 T06 MM EGR 16-18* •
MM GRIT 16K-1.57-0.20 15.70 1.57 2.80 3 0.20 16.00 T06 MM EGR 16-18* •
MM GRIT 16K-2.00-0.20 15.70 2.00 2.80 3 0.20 16.00 T06 MM EGR 16-18* •
MM GRIT 16P-2.20-1.10 15.70 2.20 2.80 3 1.10 16.00 T06 MM EGR 16-18* •
MM GRIT 16K-2.39-0.20 15.70 2.39 2.80 3 0.20 16.00 T06 MM EGR 16-18* •
MM GRIT 16K-2.50-0.20 15.70 2.50 2.80 3 0.20 16.00 T06 MM EGR 16-18* •
MM GRIT 16K-3.00-0.20 15.70 3.00 2.80 3 0.20 16.00 T06 MM EGR 16-18* •
MM GRIT 16P-3.00-0.20 15.70 3.00 2.80 3 0.20 16.00 T06 MM EGR 16-18* •
MM GRIT 16K-3.17-0.20 15.70 3.17 2.80 3 0.20 16.00 T06 MM EGR 16-18* •
MM GRIT 18K-1.20-0.05 (1) 17.70 1.20 3.80 3 0.05 18.00 T06 MM EGR 16-18* •
MM GRIT 18P-1.20-0.60 17.70 1.20 3.80 3 0.60 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-1.40-0.05 (1) 17.70 1.40 3.80 3 0.05 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-1.50-0.10 17.70 1.50 3.80 3 0.10 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-1.57-0.20 17.70 1.57 3.80 3 0.20 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-1.70-0.05 (1) 17.70 1.70 3.80 3 0.05 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-2.00-0.20 17.70 2.00 3.80 3 0.20 18.00 T06 MM EGR 16-18* •
MM GRIT 18P-2.00-1.00 17.70 2.00 3.80 3 1.00 18.00 T06 MM EGR 16-18* •
MM GRIT 18P-2.20-1.10 17.70 2.20 3.80 3 1.10 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-2.39-0.20 17.70 2.39 3.80 3 0.20 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-2.50-0.20 17.70 2.50 3.80 3 0.20 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-3.00-0.20 17.70 3.00 3.80 3 0.20 18.00 T06 MM EGR 16-18* •
MM GRIT 18P-3.00-1.50 17.70 3.00 3.80 3 1.50 18.00 T06 MM EGR 16-18* •
MM GRIT 18K-3.17-0.20 17.70 3.17 3.80 3 0.20 18.00 T06 MM EGR 16-18* •
• Recommended for O-rings and retaining rings • MM EGR clamping key is supplied with each MM GRT... shank • Modification options on request
• Do not apply lubricant to the threaded connection • For clamping instructions, see pages 91-92
• For shanks, see pages 84-91 • K - For general steel machining • P - Positive geometry for soft and gummy materials • Use carbide shanks for groove milling heads.
• Keys for other milling heads must be ordered separately. • MM GRT.. shanks serve mainly for MM GRIT.. slitting heads.
• K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials. • For user guide see pages 44, 177-184
(1) For circle clips according to DIN 471/472 and ANSI B27.7M
(2) Cutting depth maximum
(3) Number of flutes
(4) Minimum bore diameter
* Optional, should be ordered separately
