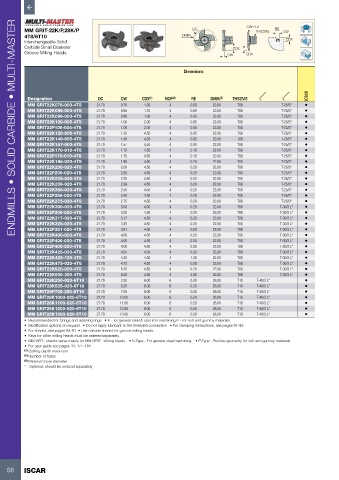

Page 60 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
MM GRIT-22K/P,28K/P DC CW≤1.2 RE CW
THSZMS
4T8/6T10 DMIN
Interchangeable Solid CDX
Carbide Small Diameter CDX
Groove Milling Heads CW CDX

Dimensions

IC908
Designation DC CW CDX (1) NOF (2) RE DMIN (3) THSZMS
MM GRIT22K076-000-4T8 21.70 0.76 1.50 4 0.00 22.00 T08 T-25/3* •
MM GRIT22K086-000-4T8 21.70 0.86 1.70 4 0.00 22.00 T08 T-25/3* •
MM GRIT22K096-000-4T8 21.70 0.96 1.90 4 0.00 22.00 T08 T-25/3* •
MM GRIT22K100-005-4T8 21.70 1.00 2.00 4 0.05 22.00 T08 T-25/3* •
MM GRIT22P100-005-4T8 21.70 1.00 2.00 4 0.05 22.00 T08 T-25/3* •
MM GRIT22K120-005-4T8 21.70 1.20 4.50 4 0.05 22.00 T08 T-25/3* •
MM GRIT22K140-005-4T8 21.70 1.40 4.50 4 0.05 22.00 T08 T-25/3* •
MM GRIT22K157-000-4T8 21.70 1.57 4.50 4 0.00 22.00 T08 T-25/3* •
MM GRIT22K170-010-4T8 21.70 1.70 4.50 4 0.10 22.00 T08 T-25/3* •
MM GRIT22P170-010-4T8 21.70 1.70 4.50 4 0.10 22.00 T08 T-25/3* •
MM GRIT22K195-020-4T8 21.70 1.95 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22K200-020-4T8 21.70 2.00 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22P200-020-4T8 21.70 2.00 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22K225-020-4T8 21.70 2.25 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22K239-020-4T8 21.70 2.39 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22K250-020-4T8 21.70 2.50 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22P250-020-4T8 21.70 2.50 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22K275-020-4T8 21.70 2.75 4.50 4 0.20 22.00 T08 T-25/3* •
MM GRIT22K300-020-4T8 21.70 3.00 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22P300-020-4T8 21.70 3.00 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22K317-020-4T8 21.70 3.17 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22K325-020-4T8 21.70 3.25 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22P381-020-4T8 21.70 3.81 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22K400-020-4T8 21.70 4.00 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22P400-020-4T8 21.70 4.00 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22P400-200-4T8 21.70 4.00 4.50 4 2.00 22.00 T08 T-30/3 L* •
MM GRIT22K425-020-4T8 21.70 4.25 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22K425-120-4T8 21.70 4.25 4.50 4 1.20 22.00 T08 T-30/3 L* •
MM GRIT22K475-020-4T8 21.70 4.75 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22K525-020-4T8 21.70 5.25 4.50 4 0.20 22.00 T08 T-30/3 L* •
MM GRIT22K600-300-4T8 21.70 6.00 4.50 4 3.00 22.00 T08 T-30/3 L* •
MM GRIT28K250-020-6T10 27.70 2.50 6.00 6 0.20 28.00 T10 T-40/3 L* •
MM GRIT28K525-020-6T10 27.70 5.25 6.00 6 0.20 28.00 T10 T-40/3 L* •
MM GRIT28P700-350-6T10 27.70 7.00 6.00 6 0.20 28.00 T10 T-40/3 L* •
MM GRIT28K1000-020-6T10 27.70 10.00 6.00 6 0.20 28.00 T10 T-40/3 L* •
MM GRIT28K1100-020-6T10 27.70 11.00 6.00 6 0.20 28.00 T10 T-40/3 L* •
MM GRIT28K1200-020-6T10 27.70 12.00 6.00 6 0.20 28.00 T10 T-40/3 L* •
MM GRIT28K1300-020-6T10 27.70 13.00 6.00 6 0.20 28.00 T10 T-40/3 L* •
• Recommended for O rings and retaining rings • K - for general steel & cast iron machining P - for soft and gummy materials
• Modification options on request • Do not apply lubricant to the threaded connection • For clamping instructions, see pages 91-92
• For shanks, see pages 84-91 • Use carbide shanks for groove milling heads.
• Keys for other milling heads must be ordered separately.
• MM GRT.. shanks serve mainly for MM GRIT.. slitting heads. • K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials.
• For user guide see pages 44, 177-184
(1) Cutting depth maximum
(2) Number of flutes
(3) Minimum bore diameter
* Optional, should be ordered separately

58 ISCAR
